Product description

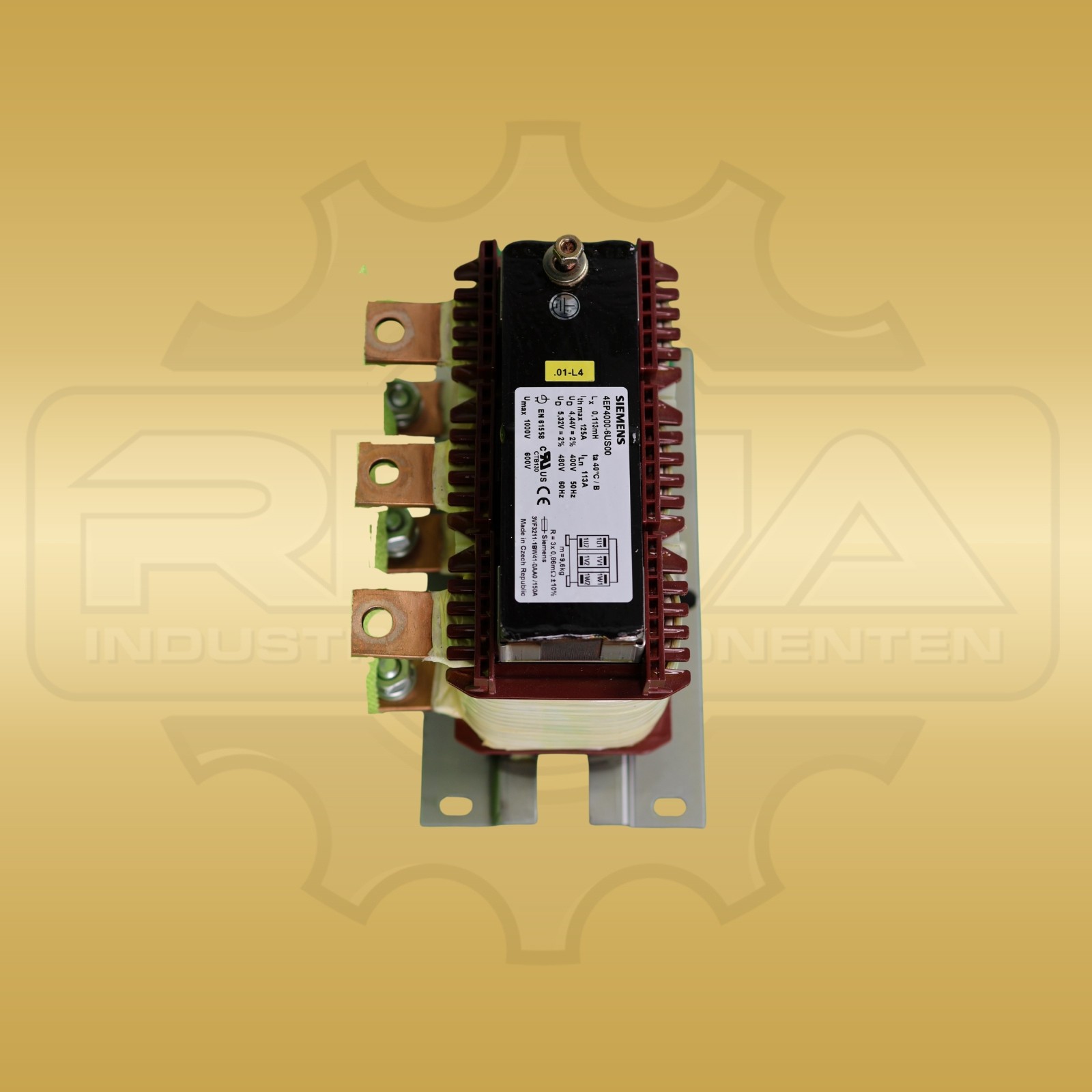

The Siemens 4EP4000-6US00 is a three-phase SIDAC line reactor for frequency converters and DC converters. Installed in the line supply, it limits conducted converter feedback and reduces stress on the power input. Siemens specifies an operating voltage range of 400 to 480 V AC at 50–60 Hz. Rated current is 112.5 A, while the maximum current is 125 A at 60 Hz. Rated inductance is 0.113 mH and the relative inductive voltage drop is 2 %. The data sheet states winding losses of 76.5 W and core losses of 23.8 W. These values are relevant to control-cabinet ventilation and the rated ambient temperature of 40 °C. The open IP00 design uses flat terminals for the main circuit and belongs to insulation class B. With dimensions of approximately 219 × 179 × 143 mm and a net weight of 10,655 kg, the reactor requires a load-bearing mounting position with adequate air and creepage clearances. The assembly complies with EN 61558-2-20 and is listed as a UL/CSA-recognized reactor. For a safe replacement, the complete Siemens order number 4EP4000-6US00, number of phases, line voltage, frequency, current class, inductance and terminal geometry must match. Existing fuses, conductor cross-sections, converter rating, mounting position and cooling clearance must also be compared with the system documentation. A reactor with a similar enclosure but a different current rating or voltage drop can alter line and converter behavior. The unit is therefore suitable for targeted maintenance of established Siemens drive cabinets designed for this exact 112.5-A and 480-V class. Its unambiguous catalog data supports purchasing, stock comparison and precise assignment.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIDAC reactors |
| Manufacturer / order / identification number | 4EP4000-6US00 |
| Device type | Line reactor for frequency converters |
| Number of phases | 3 |
| Voltage type | AC |
| Operating voltage | 400–480 V AC |
| Operating frequency | 50–60 Hz |
| Rated current | 112.5 A |
| Maximum current | 125 A at 60 Hz |
| Rated inductance | 0.113 mH |
| Relative inductive voltage drop | 2 % |
| Winding losses | 76.5 W |
| Core losses | 23.8 W |
| Thermal class | B |
| Rated ambient temperature | 40 °C |
| Degree of protection | IP00 |
| Main-circuit connection | Flat terminal |
| Dimensions | 219 × 179 × 143 mm |
| Net weight | 10,655 kg |
Related products
Go to shop
Siemens 6SE7037-0TJ60-Z
€21,010.00
Siemens 6SE7133-7EG83-2NA0
€12,500.00
Siemens 6SL3120-2TE21-0AD0
€970.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What electrical ratings does the Siemens 4EP4000-6US00 have?
The documented ratings are 400–480 V AC, 50–60 Hz, 112.5 A rated current, 125 A maximum current at 60 Hz and 0.113 mH rated inductance.
What must be considered when installing the Siemens 4EP4000-6US00?
The open IP00 reactor requires adequate air and creepage clearances, matching flat terminals, load-bearing mounting and cooling for 76.5 W winding losses plus 23.8 W core losses.
