Siemens 6AV3617-1JC30-0AX1
€520.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Siemens 6AV7873-0BC20-1AC0 combines a display, keyboard front and PC hardware in a SIMATIC Panel PC 677B for operator control and visualization tasks. The 15-inch TFT display has a resolution of 1024 × 768 pixels. Front-panel operation is provided by function keys with LEDs, an alphanumeric keyboard and one USB-2.0 port. This is the keyboard version without touch operation. The front panel meets IP65 according to EN 60529. The computer uses an Intel Core 2 Duo T5500 running at 1.66 GHz with 2 MB SLC. This configuration includes 1 GB of DDR2 memory, a 160-GB-SATA hard disk in 3.5-inch format and a DVD±R/±RW drive. Two PCI slots are available for expansion cards. Windows XP Professional is installed in a multilingual version. These features belong to the complete identification number 6AV7873-0BC20-1AC0 and distinguish this variant within the Panel-PC-677B range. Communication interfaces include two RJ45 ports for 10/100/1000 Mbit/s Industrial Ethernet, one serial COM1 interface with V.24/RS232 and one PROFIBUS/MPI connection. Four additional USB-2.0 ports are located at the rear. DVI-I provides another graphics interface. The automatic power supply covers 100 to 240 V AC at 50 or 60 Hz. The operating-temperature range of the 15-inch version is +5 to +50 °C. Temperature monitoring, a watchdog and status LEDs supplement the internal monitoring functions. The mounting cutout measures 450 × 321 mm, and the device depth including the optical drive is 145 mm. The central configuration weighs approximately 16 kg. Complete identification number, display version, processor, memory configuration and interfaces are the principal technical comparison features.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product range | SIMATIC Panel PC 677B |
| Manufacturer/order/identification number | 6AV7873-0BC20-1AC0 |
| Device type | industrial panel PC with keyboard front |
| Display | 15-inch TFT |
| Resolution | 1024 × 768 pixels |
| Processor | Intel Core 2 Duo T5500, 1.66 GHz |
| Processor cache | 2 MB SLC |
| Memory | 1 GB DDR2 RAM |
| Mass storage | 160 GB SATA-HDD, 3.5 inch |
| Optical drive | DVD±R/±RW |
| Ethernet | 2 × 10/100/1000 Mbit/s, RJ45 |
| USB | 1 × USB 2.0 at front and 4 × USB 2.0 at rear |
| Serial interface | 1 × COM1, V.24/RS232 |
| Fieldbus | 1 × PROFIBUS/MPI |
| Power supply | 100–240 V AC, 50/60 Hz |
| Front protection rating | IP65 according to EN 60529 |
| Operating temperature | +5 to +50 °C |
| Dimensions | 450 × 321 × 145 mm (mounting cutout W × H / device depth) |
| Weight | approx. 16 kg |
Related products
Go to shop
Siemens 6AV6643-0CB01-1AX1
€1,440.00
Siemens 6AV7851-0AE10-1AA0
Price on request

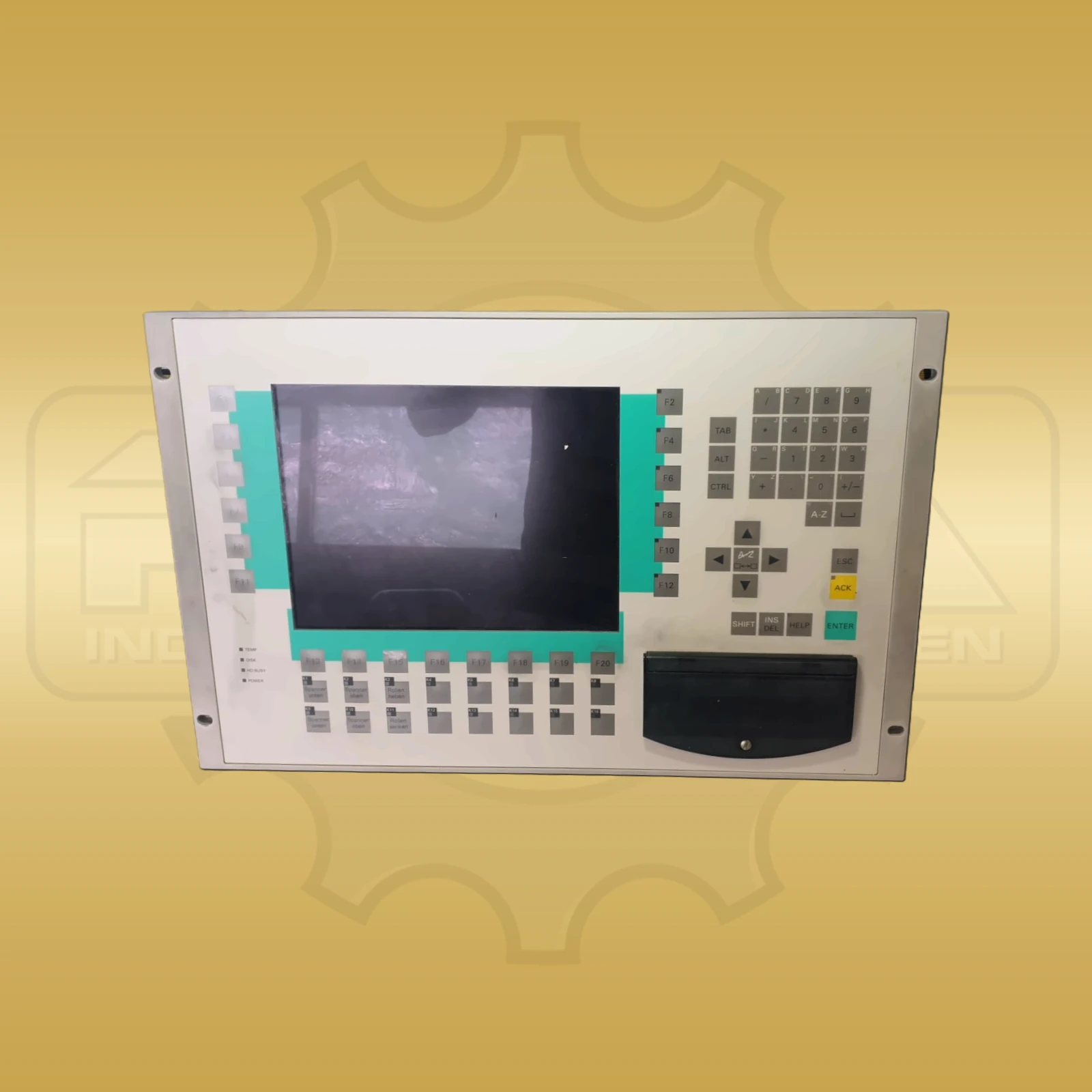

Siemens 6AV3637-1LL00-0FX1
Price on request
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which computer configuration does Siemens 6AV7873-0BC20-1AC0 have?
It has a Core 2 Duo T5500 at 1.66 GHz, 1 GB DDR2 RAM, a 160-GB-SATA-HDD and a DVD±R/±RW drive.
Which communication interfaces are available?
The unit has two Gigabit Ethernet ports, five USB-2.0 connections, COM1 with V.24/RS232 and PROFIBUS/MPI.
