Siemens 6ES7515-2UM01-0AB0 S7-1500T CPU 1515TF-2 PN
€2,430.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

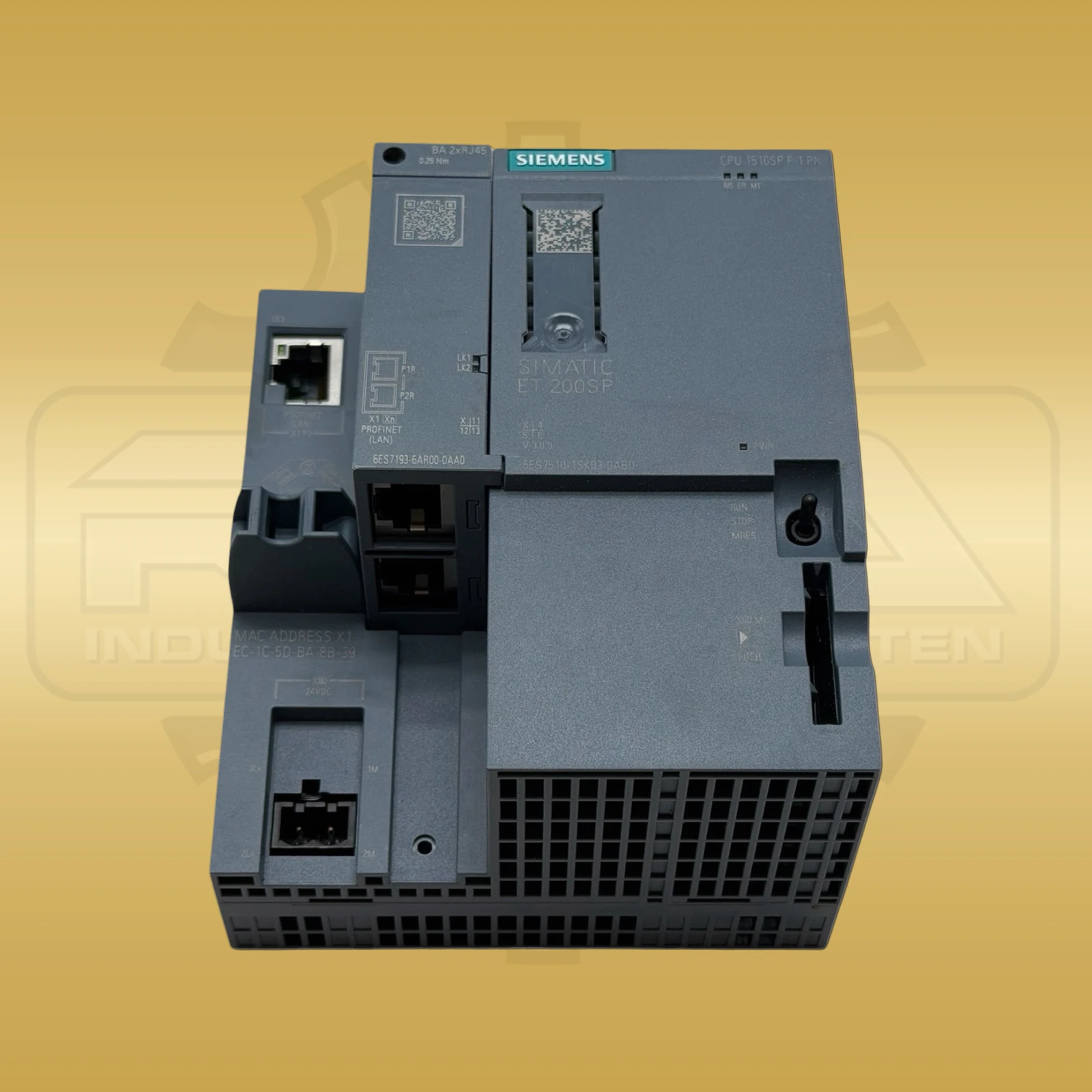

Siemens 6ES7510-1SK03-0AB0 is a fail-safe CPU 1510SP F-1 PN for the SIMATIC ET-200SP distributed I/O system. The compact central processing unit combines standard and safety control with PROFINET communication and is suitable for machines, production cells and systems where an installed CPU with this exact MLFB must be replaced or an existing ET-200SP station expanded. Siemens specifies 300 KB of integrated work memory for the program and 1 MB for data. A SIMATIC Memory Card is required; cards up to 32 GB are supported as plug-in load memory. The integrated PROFINET IRT interface provides three ports, two of them through a suitable BusAdapter. The CPU can operate as a PROFINET IO Controller and IO Device and supports PROFINET IRT, MRP/MRPD, PROFIsafe, TCP/IP, Modbus TCP and OPC UA. For safety applications, Siemens specifies SIL 3 according to IEC 61508 and Performance Level e according to ISO 13849-1. The unit is supplied with 24 V DC within a permissible range of 19.2 to 28.8 V; rated current consumption is 0.51 A and typical power loss is 6.5 W. Measuring 100 × 117 × 75 mm and weighing approximately 265 g, the CPU is designed for compact ET 200SP stations. Engineering of firmware V3.0 is supported from TIA Portal V18. Before replacement, document the safety program, firmware, Memory Card, BusAdapter, device name, IP configuration and installed PROFINET or PROFIBUS communication. This allows Siemens 6ES7510-1SK03-0AB0 to be assigned precisely within existing automation and fail-safe architectures without confusing it with visually similar CPUs that have different memory or interface capabilities.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product range | SIMATIC ET 200SP / S7-1500 |
| Manufacturer / order / identification number | 6ES7510-1SK03-0AB0 |
| Device type | fail-safe central processing unit CPU 1510SP F-1 PN |
| Firmware version | V3.0; firmware update possible |
| Engineering | TIA Portal from V18 for firmware V3.0 |
| Supply voltage | 24 V DC; permissible 19.2 to 28.8 V DC |
| Current consumption | 0.51 A rated; 0.7 A maximum |
| Power loss | typically 6.5 W |
| Program memory | 300 KB integrated |
| Data memory | 1 MB integrated |
| Load memory | SIMATIC Memory Card required; maximum 32 GB |
| Bit processing | typically 25 ns |
| PROFINET | 1 interface with 3 ports and integrated switch; IRT capable |
| BusAdapter | required for ports 1 and 2; BA 2x RJ45, BA 2x FC or BA 2x M12 |
| Communication protocols | PROFINET IO, PROFIsafe, TCP/IP, Modbus TCP and OPC UA |
| Safety class | SIL 3 according to IEC 61508; PL e according to ISO 13849-1 |
| Operating temperature | horizontal −30 to 60 °C; vertical −30 to 50 °C |
| Dimensions | 100 × 117 × 75 mm |
| Weight | approx. 265 g |
Related products
Go to shop
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What memory capacities does Siemens 6ES7510-1SK03-0AB0 provide?
The CPU has 300 KB of integrated work memory for the program and 1 MB for data. A SIMATIC Memory Card is also required, and Siemens specifies up to 32 GB of load memory.
Which safety level does the CPU 1510SP F-1 PN support?
Siemens specifies SIL 3 according to IEC 61508 and Performance Level e according to ISO 13849-1 for safety operation. The safety program and system configuration must match when the CPU is replaced.
