Siemens 6GK1415-2BA20
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

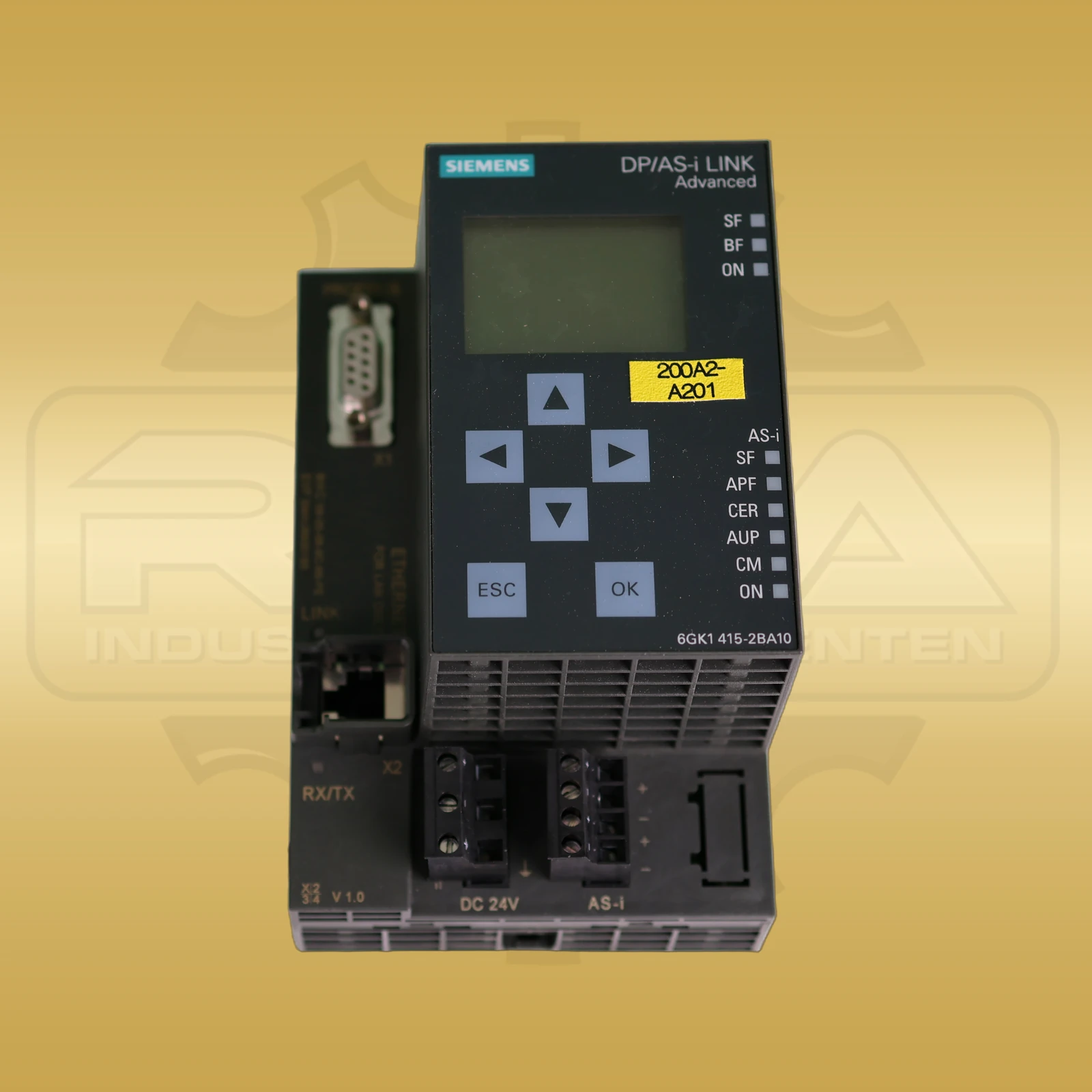

For the network transition between PROFIBUS DP and AS-Interface, Siemens 6GK1415-2BA10 operates as a DP/AS-Interface Link Advanced device in the SIMATIC NET product range. This version is a single master with a graphical display and six control buttons. It supports AS-i master profiles M1 to M4 and AS-Interface specification V3.0. The device is designed to integrate an AS-i network into a PROFIBUS-DP environment. Power supplied from the AS-i line is between 29.5 and 31.6 V DC. The current consumption is a maximum of 250 mA at 30 V; power consumption is no more than 7.5 W. An optional external supply has a nominal value of 24 V DC within the permissible range of 18 to 32 V DC. The supply conductor cross-section can be 0.5 to 2.5 mm². The PROFIBUS connection is implemented as a 9-pin D-Sub socket. An RJ45 connection with 10/100 Mbit/s is used for the LAN connection. The available PROFIBUS data rates range from 9.6 kbit/s to 12 Mbit/s. The maximum length of the AS-i line is 100 m. Functions can be operated directly on the device using the display and control buttons. The Siemens 6GK1415-2BA10 has IP20 protection; its operating temperature range is 0 to 60 °C. The permissible operating altitude is up to 3000 m above sea level; relative humidity must be non-condensing. The housing measures 90 × 132 × 85.5 mm in width, height, and depth. The net weight is 0.540 kg. The order number, network topology, power supply, and configuration must match the specific application. Other devices in the same product family may differ in master configuration and pin assignment; interchangeability therefore cannot be inferred solely from the designation DP/AS-Interface Link Advanced.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product range | SIMATIC NET DP/AS-Interface Link Advanced |
| Manufacturer/order/identification number | 6GK1415-2BA10 |
| Device type | Network transition between PROFIBUS DP and AS-Interface |
| Design | Single master with display |
| AS-Interface specification | V3.0 |
| Supported AS-i master profiles | M1 to M4 |
| Degree of protection | IP20 |
| AS-i supply | 29.5 to 31.6 V DC |
| Current consumption from AS-i line | maximum 250 mA at 30 V |
| Power consumption | maximum 7.5 W |
| Optional external supply | 24 V DC, permissible 18 to 32 V DC |
| PROFIBUS connection | 9-pin D-Sub socket |
| LAN connection | RJ45, 10/100 Mbit/s |
| PROFIBUS data rates | 9.6 kbit/s to 12 Mbit/s |
| Operating temperature | 0 to 60 °C |
| Dimensions | 90 × 132 × 85.5 mm (B × H × T) |
| Weight | 0.540 kg |
Related products
Go to shop
Siemens 6GK7 443-5FX02-0XE0
€100.00
Siemens 6AG2543-6WX00-4XE0
Price on request

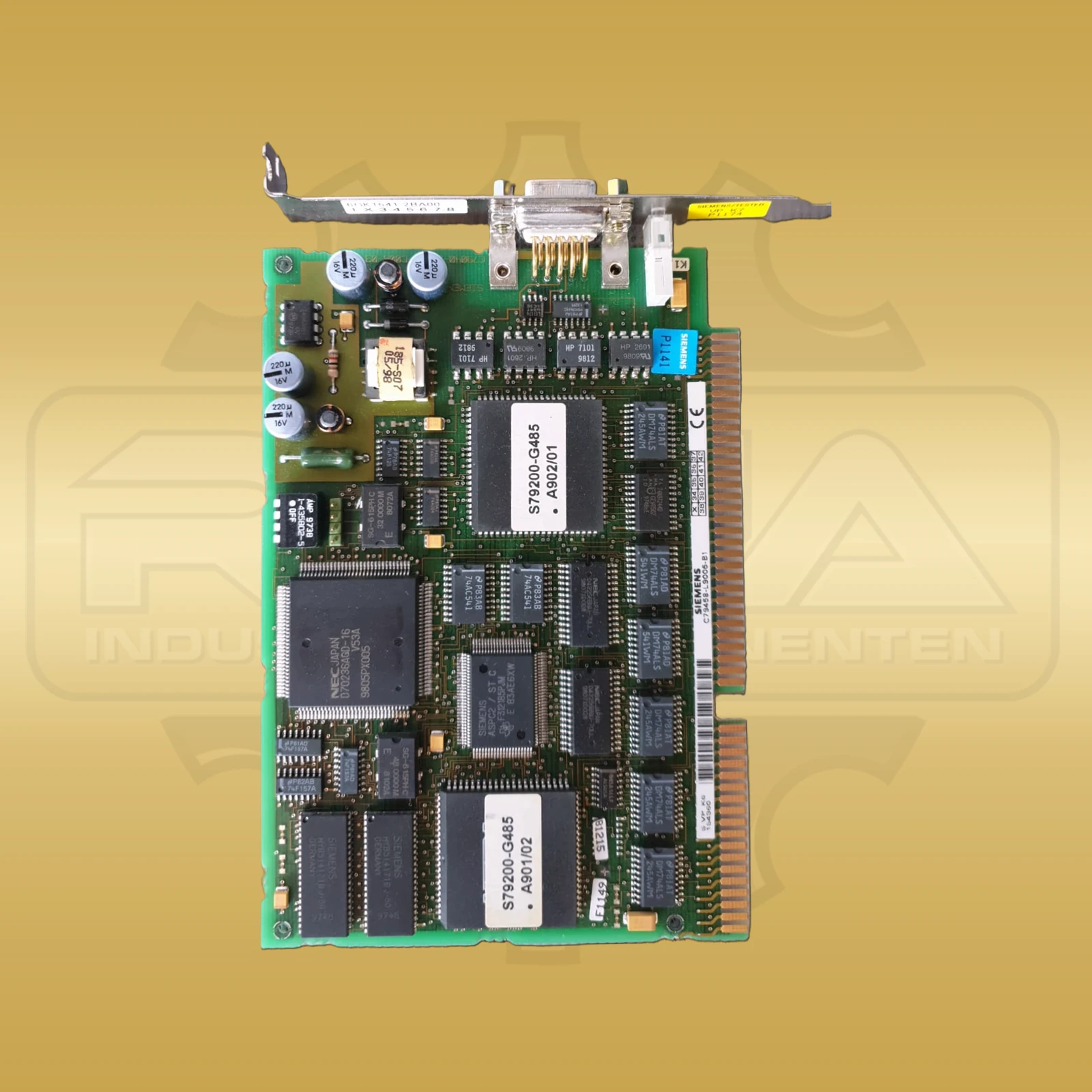

Siemens 6GK1541-2BA00
Price on request
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What is the function of Siemens 6GK1415-2BA10?
The device provides a network transition between PROFIBUS DP and AS-Interface. This version operates as a DP/AS-Interface Link Advanced with one master, a display, and support for AS-i master profiles M1 to M4.
What are the dimensions and weight of Siemens 6GK1415-2BA10?
The device measures 90 × 132 × 85.5 mm (B × H × T) and weighs 0.540 kg net. For the intended application, the complete order number, power supply, interfaces, and configuration must match the existing system.
