ABB AO930N
€540.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

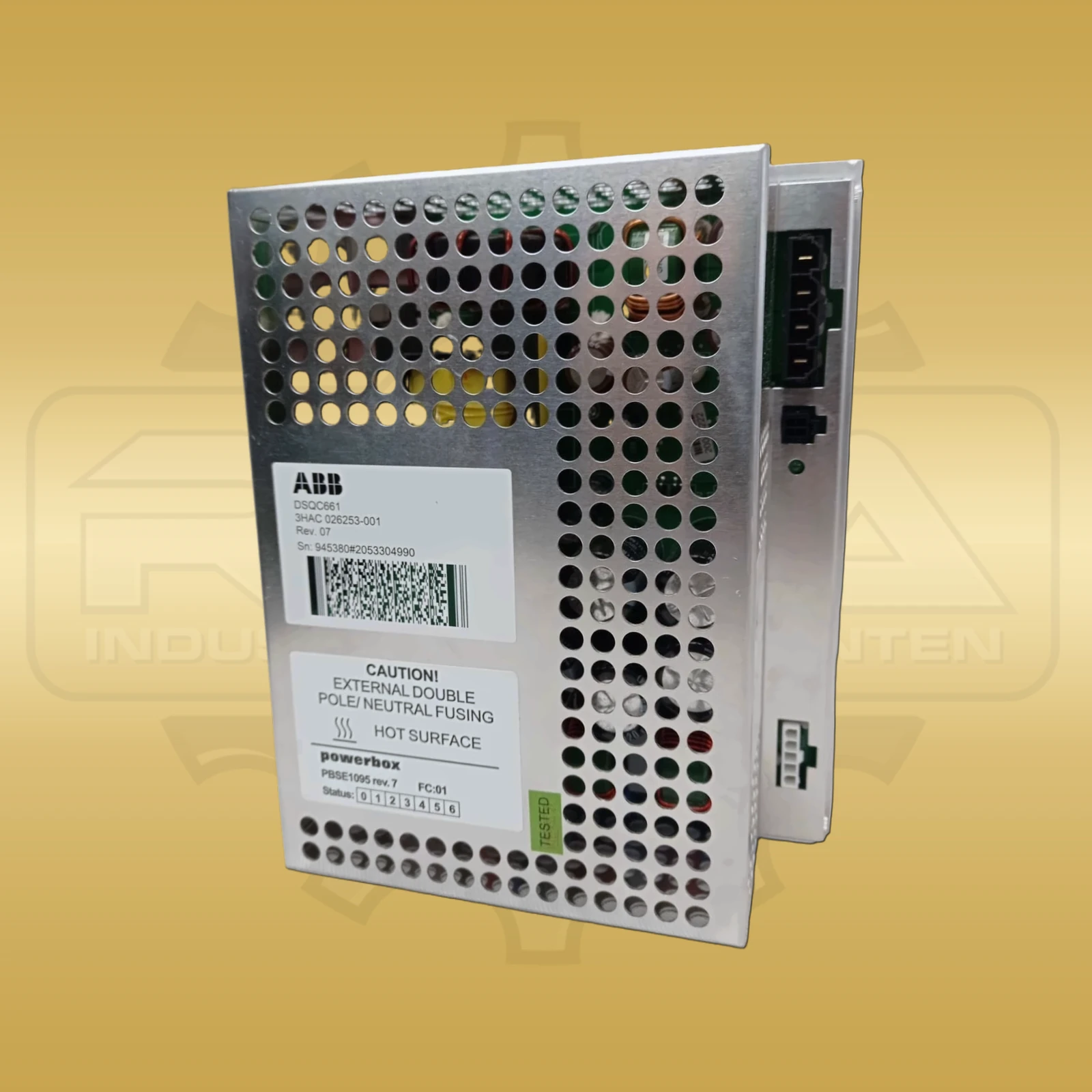

ABB DSQC661 is a power supply module for robot controllers on the IRC5 platform. The complete ABB order number is 3HAC026253-001, while DSQC 661 is documented as the type designation. Inside the controller, the module supplies the downstream ABB DSQC 662 unit with DC voltage. The ABB troubleshooting manual specifies an output voltage range of > 24 V to < 27 V DC. An input range of > 172 V to < 276 V AC is documented. A minimum load of 0.5–1 A is specified at the DC output. Supply start-up time until runtime mode is approximately 30 s. The version uses a DCOK LED for diagnostics. These data describe the electrical and functional assignment of the power supply module within the documented controller platform. ABB DSQC661 is 235 mm long, 178 mm wide and 104 mm high. Complete external dimensions are therefore 235 × 178 × 104 mm in length × width × height order. Product-specific documented net weight is 2.46 kg. The data set also lists the same value as gross weight; net weight is used for the mandatory specification row. Dimensions and weight refer to the individual power supply module. Manufacturer, product range, complete identification number, additional ABB order number, type designation, device type, controller platform, downstream unit, voltage ranges, minimum load, diagnostic indicator, start-up time, external dimensions and weight form the technical variant data set. The sources distinguish ABB product identity, IRC5 functional data and product-specific enclosure data. The specification table summarizes these values without shipping or condition information and concludes with Dimensions and Weight.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | ABB |
|---|---|
| Product range | ABB DSQC / IRC5 |
| Manufacturer/order/identification number | DSQC661 |
| ABB order number | 3HAC026253-001 |
| Type designation | DSQC 661 |
| Device type | Power supply module for robot controller |
| Controller platform | ABB IRC5 |
| Downstream unit | ABB DSQC 662 |
| Output type | DC voltage |
| Output voltage range | > 24 V to < 27 V DC |
| Input voltage range | > 172 V to < 276 V AC |
| Minimum output current | 0.5–1 A minimum load at the DC output |
| Diagnostic indicator | DCOK LED |
| Power-supply startup time | approx. 30 s to runtime mode |
| Dimensions | 235 × 178 × 104 mm (L × W × H) |
| Weight | 2.46 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions of ABB DSQC661?
Complete external dimensions are 235 × 178 × 104 mm in length × width × height order.
How much does ABB DSQC661 weigh?
The documented net weight is 2.46 kg.
