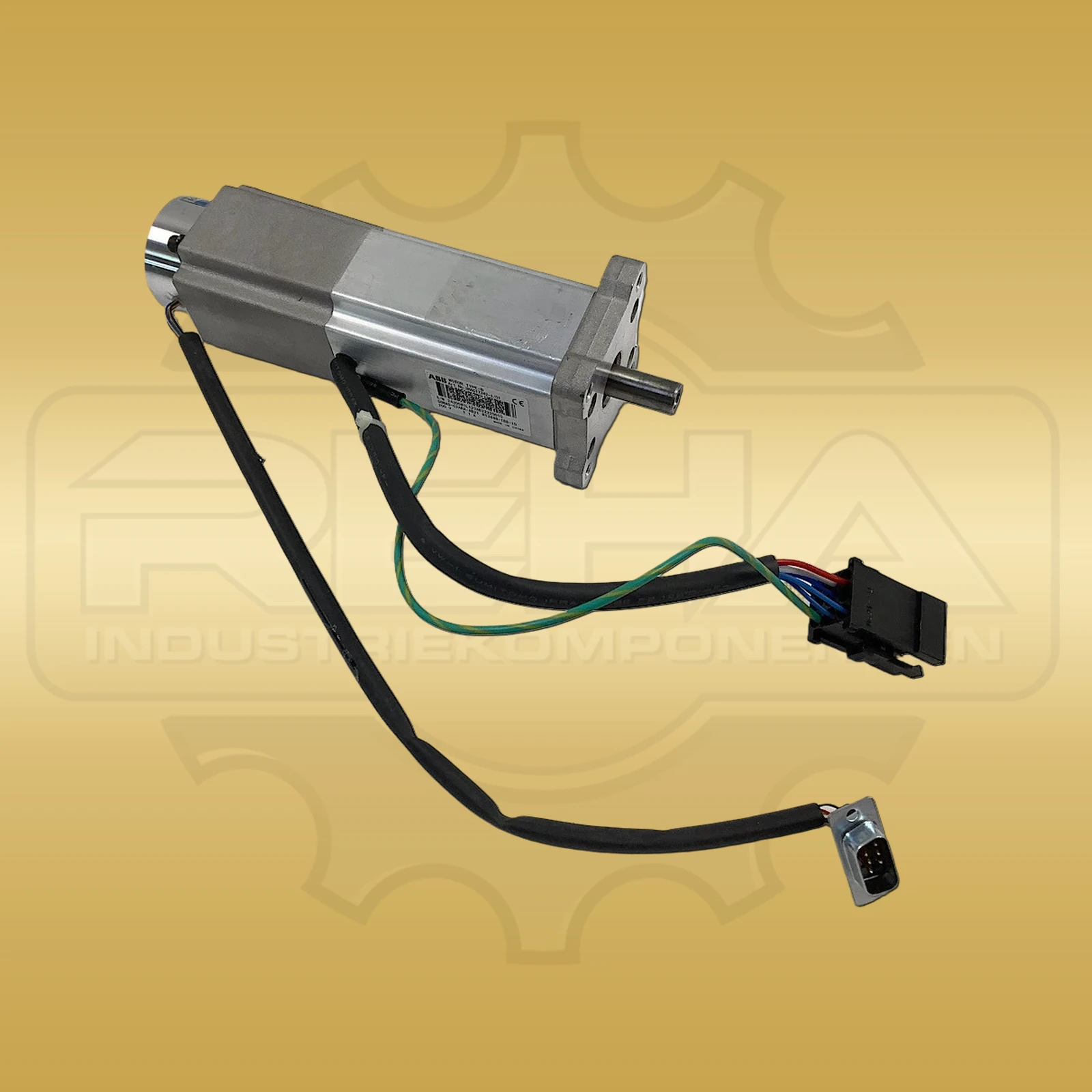

ABB 3HAC17342-1/01
Price on request
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

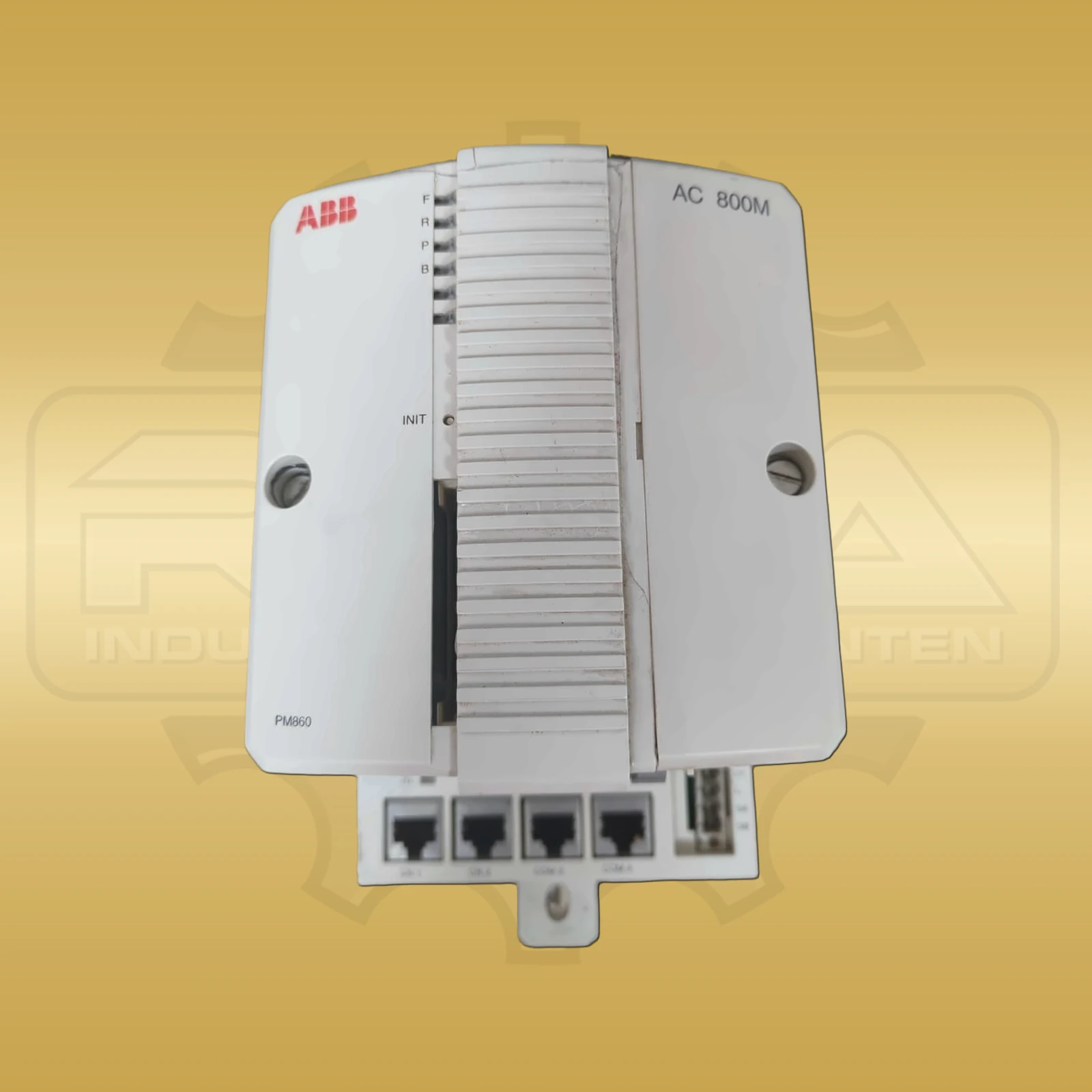

The ABB PM860 is an AC 800M controller-family processor unit for industrial control and process automation duties. ABB describes the module as a 32-bit single-board computer that directly connects S800-I/O through ModuleBus. The MPC860 microprocessor operates at 48 MHz. Firmware storage comprises 2 MByte flash PROM, while working memory comprises 8 MByte SDRAM. With the same application program, ABB states that the PM860 executes approximately twice as fast as a PM851 or PM856. Up to twelve communication interfaces can be connected through the CEX bus. Two RJ45 Ethernet ports operate at 10 Mbit/s in half-duplex mode according to IEEE 802.3 and 10Base-T. The additional RJ45 serial ports COM3 and COM4 use RS-232C; COM3 supports selectable rates up to 19.200 baud, while COM4 communicates with Control Builder at 9.600 baud. Electrical ModuleBus capacity covers one S800-I/O base cluster with up to twelve units and a total of up to 192 signals. The supply is 24 V DC with an allowed range from 19.2 to 30 V DC. ABB specifies a typical current consumption of 180 mA, IP20 protection and dimensions of 119 × 186 × 135 mm for the PM8xx form factor. Installation is on a horizontal DIN rail with unobstructed ventilation clearances. The PM860K01 package with TP830 and bus terminations weighs 1,100 g. For a safe replacement, check the processor version, TP830 baseplate, firmware level, Control Builder project, Ethernet and serial settings, CEX configuration, ModuleBus expansion and battery backup. General interchangeability with PM860A, PM861 or other PM8xx variants is not assumed.
Specifications
| Manufacturer | ABB |
|---|---|
| Product series | AC 800M |
| Manufacturer/order/identification number | PM860 |
| Device type | Processor unit / PLC CPU |
| Computer architecture | 32-bit single-board computer |
| Processor | MPC860 at 48 MHz |
| Firmware memory | 2 MByte flash PROM |
| Working memory | 8 MByte SDRAM |
| Ethernet | 2 × RJ45, 10 Mbit/s, half duplex, IEEE 802.3 / 10Base-T |
| Serial interfaces | COM3 and COM4, RJ45, RS-232C |
| CEX bus capacity | up to 12 communication interfaces |
| Electrical ModuleBus capacity | 1 S800-I/O cluster, up to 12 units and 192 signals |
| Power supply | 24 V DC, allowed 19.2–30 V DC |
| Current consumption | typically 180 mA at 24 V DC |
| Degree of protection | IP20 |
| Dimensions | 119 × 186 × 135 mm |
| PM860K01 package weight | 1,100 g including TP830 and bus terminations |
| Internal battery backup | at least 48 hours |
