Product description

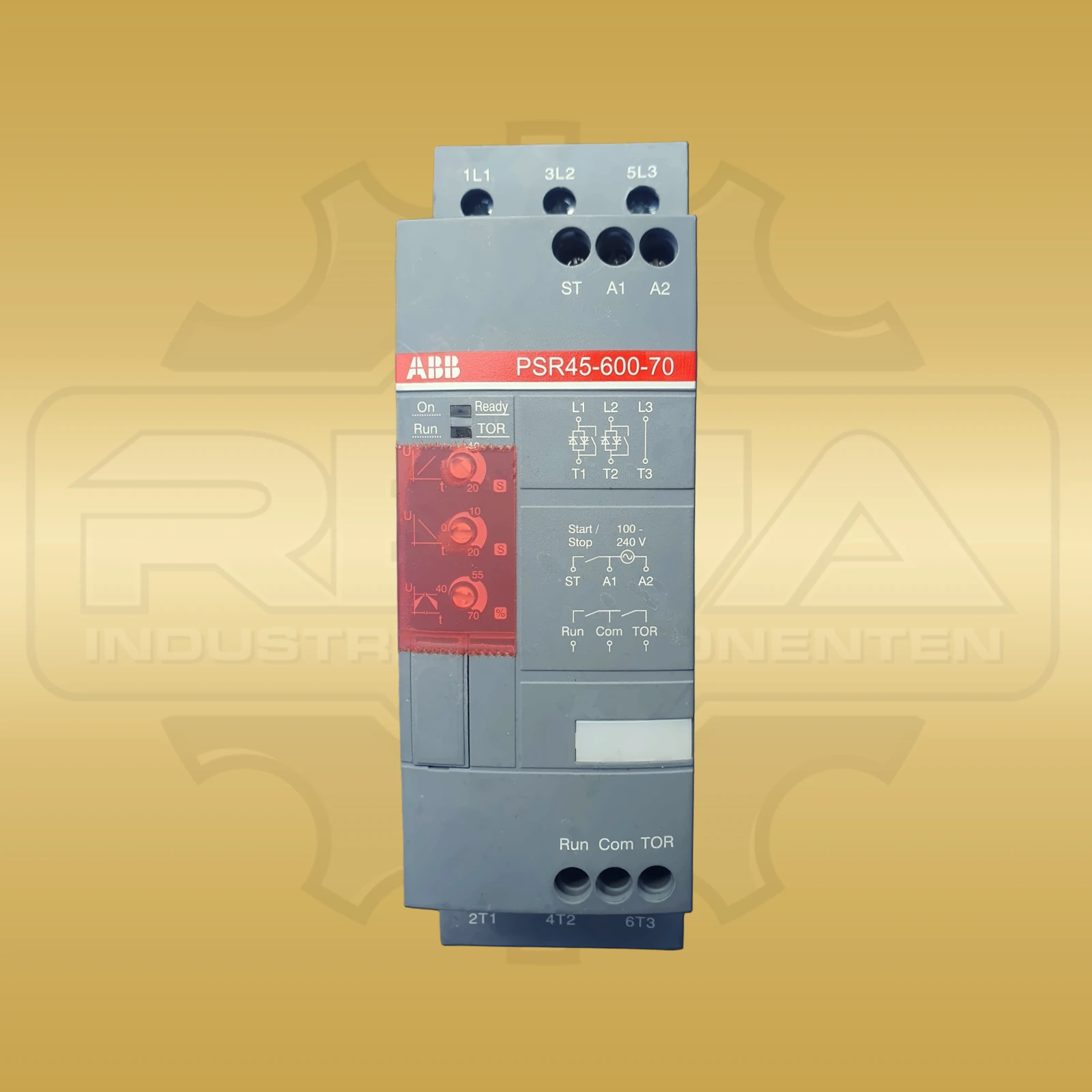

ABB PSR45-600-70 is a softstarter from the compact PSR product family. The complete type number identifies the version with ABB product ID 1SFA896111R7000. The main circuit operates at 208 to 600 V AC. The documented control supply is 100 to 240 V AC at 50/60 Hz. Rated operational current is 45 A; the UL/CSA rating is 46.2 A. Motor power is 22 kW at 400 V and 30 kW at 500 V. For 480 V, the data record states 30 hp. The softstarter controls motor voltage in two phases. A bypass is integrated. Three front-mounted potentiometers provide adjustment. RUN and TOR are documented as relay outputs with normally open contacts. The PSR version supports up to 100 starts per hour. The enclosure is rated IP10 and uses screw terminals. The variant-specific ABB product document states a net width of 54 mm, net height of 187 mm and net depth of 153 mm. In uniform width × height × depth order, the complete external dimensions are therefore 54 × 187 × 153 mm. Documented net weight is 1.0 kg. Dimensions and weight refer to the softstarter and not to shipping packaging. Manufacturer, product series and complete manufacturer/order/identification number form the first three specification rows. Only technical buyer data for voltage, frequency, current, power, control principle, bypass, adjustment, signals, starting frequency and terminals follow. Dimensions and Weight close the table as separate mandatory rows. The combination of complete type number, current class, control voltage and enclosure dimensions clearly distinguishes this PSR version from other sizes and voltage versions.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | ABB |
|---|---|
| Product series | PSR |
| Manufacturer/order/identification number | PSR45-600-70 |
| Device type | Softstarter |
| Main voltage | 208 to 600 V AC |
| Control voltage | 100 to 240 V AC |
| Control frequency | 50/60 Hz |
| Rated operational current | 45 A |
| UL/CSA rated current | 46.2 A |
| Motor power at 400 V | 22 kW |
| Motor power at 500 V | 30 kW |
| Motor power at 480 V | 30 hp |
| Control principle | two-phase voltage control |
| Bypass | integrated |
| Adjustment | three front-mounted potentiometers |
| Relay output | RUN and TOR, normally open contact |
| Starting frequency | up to 100 starts per hour |
| Degree of protection and terminals | IP10, screw terminals |
| Dimensions | 54 × 187 × 153 mm (W × H × D) |
| Weight | 1.0 kg |
Related products
Go to shop
ABB ACS355-03E-31A0-4
Price on request

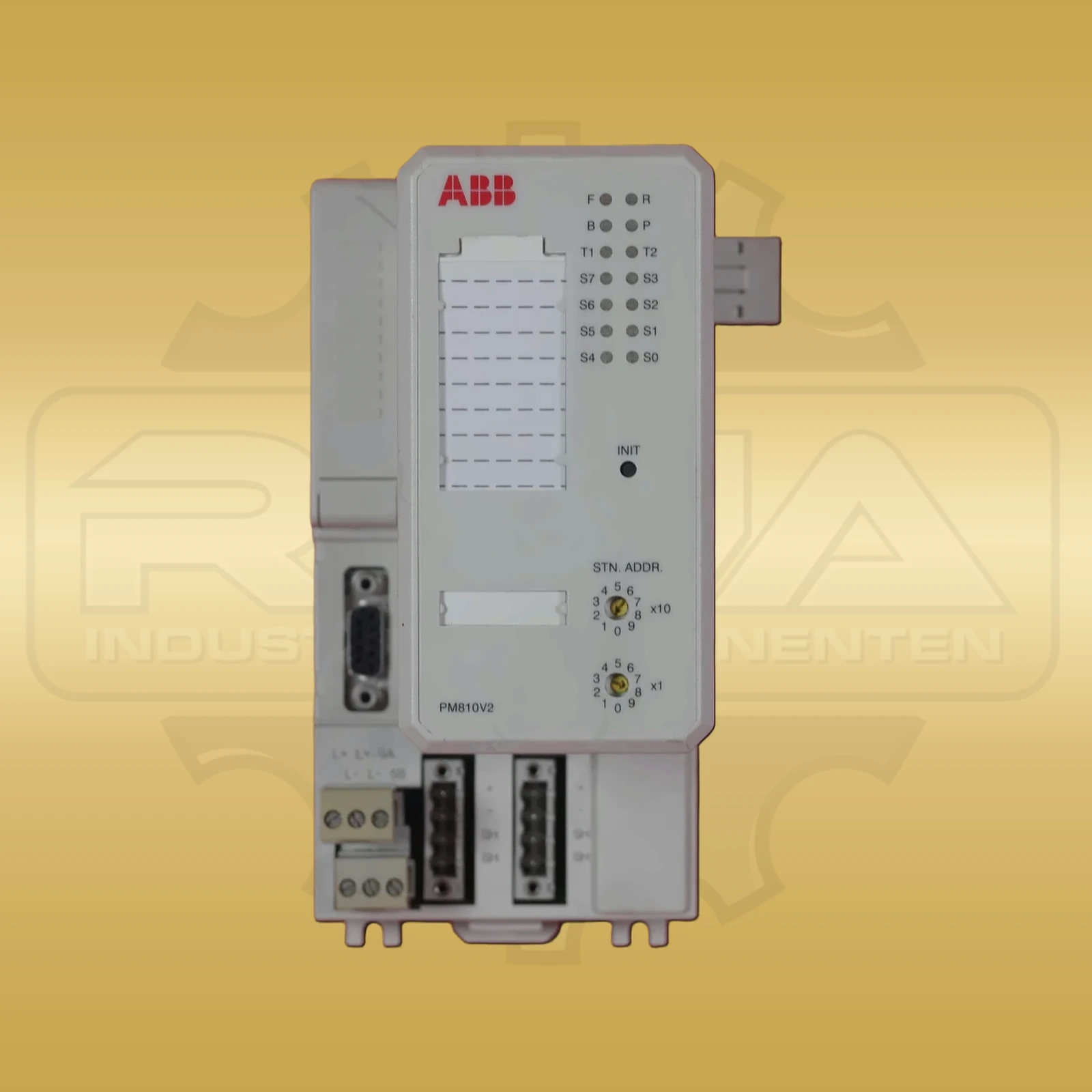

ABB PM810V2
