ABB 2TLA010026R0000
Price on request
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
Eight independently switched outputs make the ABB SA/S8.16.5.2 a KNX actuator for central load control in building installations. Each output uses a floating contact; its switching position can be identified and operated manually on the device. The model belongs to the professional ABB i-bus KNX range and switches resistive, capacitive and inductive loads. Contact ratings comprise 16 A or 20 AX and 16 A at AC-3; the C-load rating defines operation with higher inrush currents within the stated values. Maximum switching power is 3,680 W, while power loss for the eight-channel actuator is 8 W. The KNX TP bus coupling also supplies the auxiliary voltage; the load side operates at 230 V AC. The KNX bus links control telegrams directly to the eight separate switching channels. Eight manually operated channels and ON/OFF contact-position indication support installation and servicing. The light-grey modular device occupies eight modular spacings and mounts on a DIN rail. Its enclosure is rated IP20 and specified for ambient temperatures from -5 to +45 °C. Order number 2CDG110267R0011 identifies this exact eight-channel SA/S version without current measurement. The enclosure measures 140 × 90 × 63.5 mm and weighs 0.452 kg.

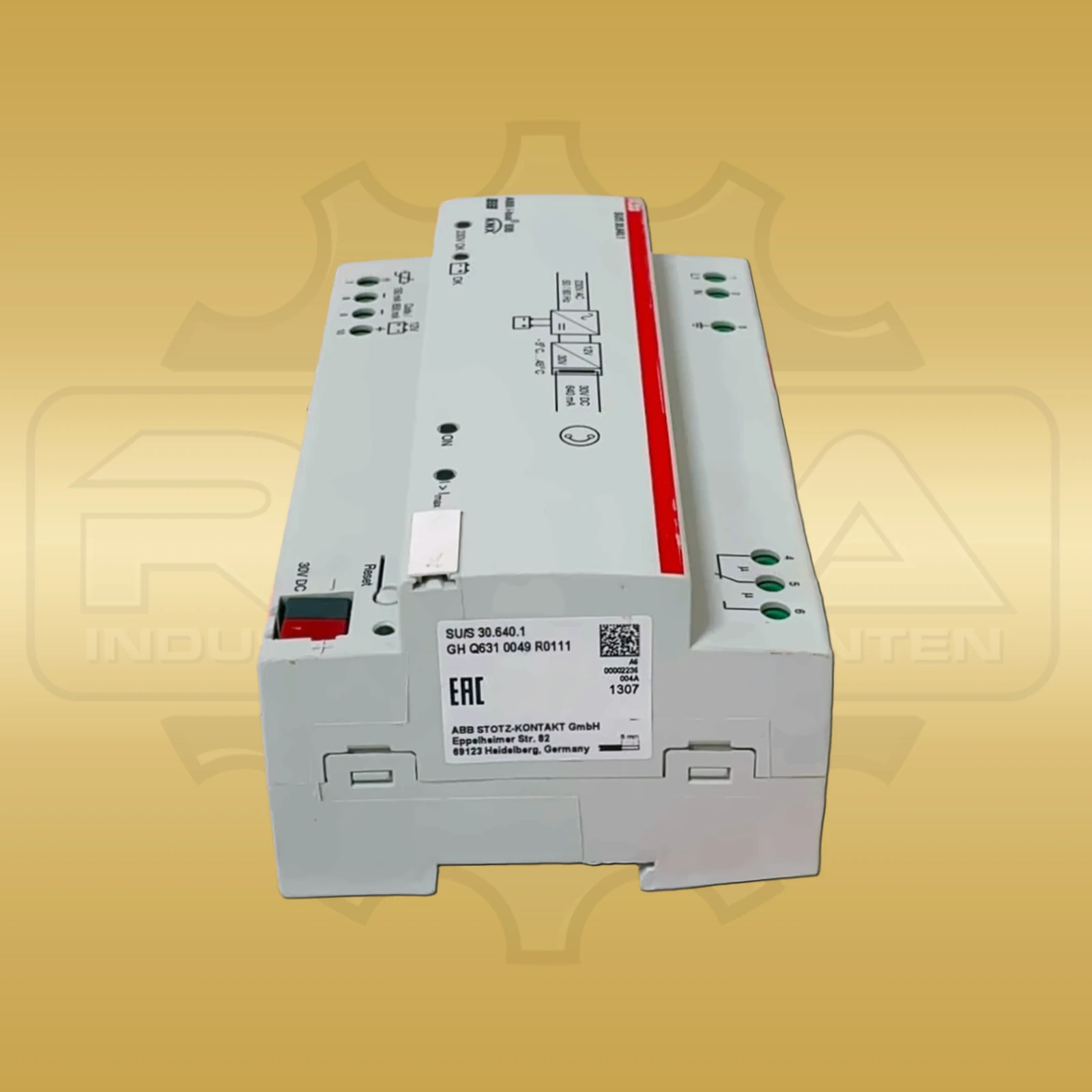

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | ABB |
|---|---|
| Product series | ABB i-bus KNX Professional |
| Manufacturer/order/identification number | SA/S8.16.5.2 |
| Manufacturer order number | 2CDG110267R0011 |
| Device type | 8-fold KNX switch actuator, C-load, MDRC |
| Switching outputs | 8 |
| Bus system | KNX (TP) |
| Contact design | 8 independently switched floating contacts |
| Manual operation | Yes |
| Contact-position indication | ON / OFF |
| Voltage range | 230 V AC |
| Contact rating | 16 A / 20 AX; 16 A AC-3 |
| Maximum switching power | 3,680 W |
| Load types | Resistive, capacitive and inductive loads; C-load: yes |
| Power loss | 8 W |
| Mounting type | DIN rail, modular installation device (MDRC) |
| Protection rating | IP20 |
| Operating ambient temperature | -5 to +45 °C |
| Dimensions | 140 × 90 × 63.5 mm (W × H × D); 8 modular spacings |
| Weight | 0.452 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which loads does the ABB SA/S8.16.5.2 switch?
The eight floating outputs switch resistive, capacitive and inductive loads. Contact ratings comprise 16 A or 20 AX and 16 A at AC-3.
How is the ABB SA/S8.16.5.2 mounted and operated?
The actuator mounts on a DIN rail as an eight-module device. Its outputs can be operated manually on the unit, with their switching position shown as ON or OFF.
