Bosch Rexroth MSK030B-0900-NN-M1-UG0-NNNN
€1,000.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

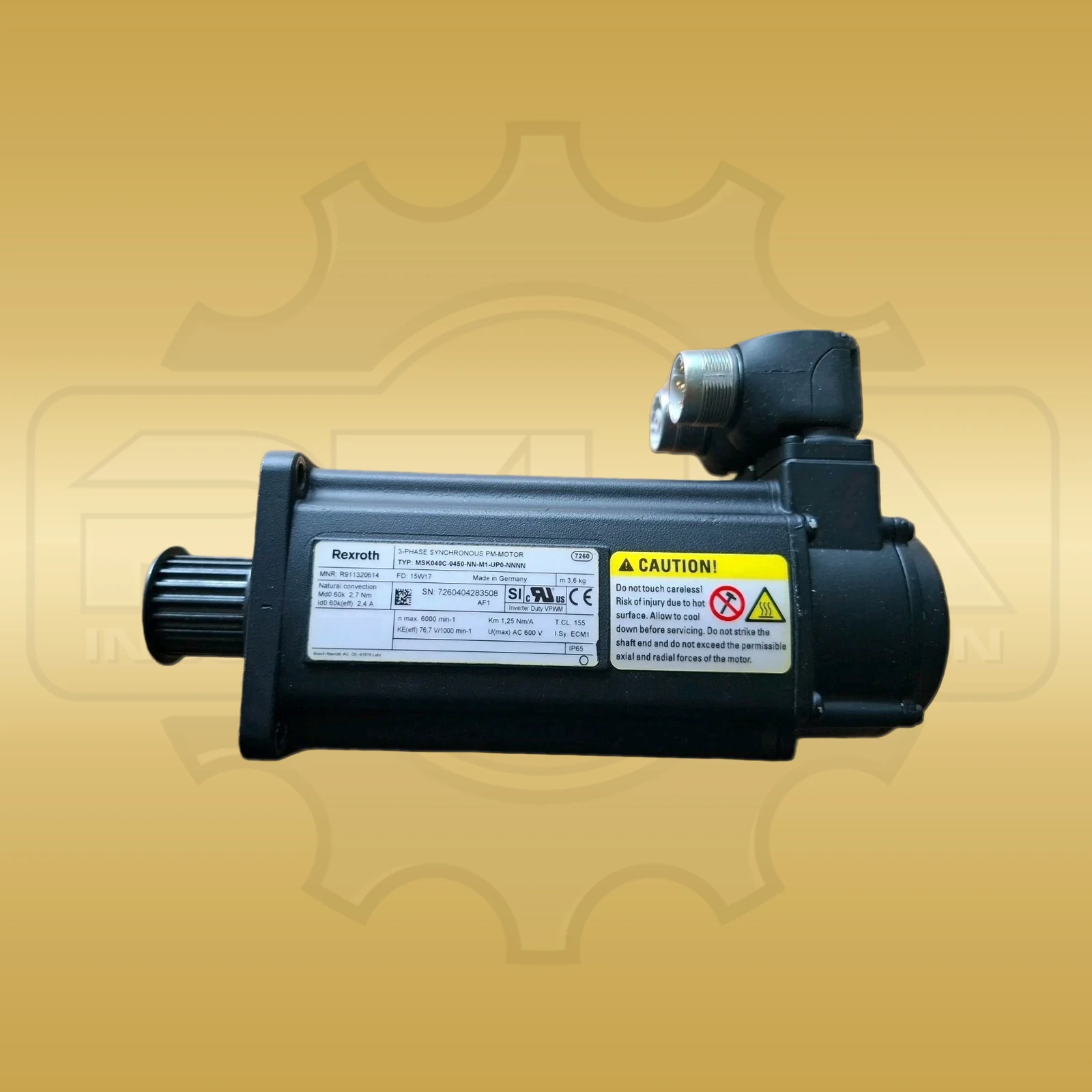

Bosch Rexroth MSK040C-0450-NN-M1-UP0-NNNN identifies a permanent-magnet synchronous servo motor from the IndraDyn S range. Its complete type code assigns it to the compact MSK040C size and winding variant 0450. Material number R911320614 identifies this exact standard version. Heat is dissipated by natural convection. An optical multiturn absolute encoder with Hiperface interface provides position and speed feedback. A rotatable connector routes the electrical connections from the motor housing. The output shaft is a keyed version with shaft seal. No holding brake is fitted to this variant. These features describe its specific mechanical and electrical equipment within the MSK040C family. The dimension drawing specifies an overall axial depth of 185.5 mm including the shaft. The square flange and housing profile is 82 mm wide. Including the upper connection area, maximum height is 124.5 mm. Complete external dimensions are therefore 124.5 × 82 × 185.5 mm in height × width × depth order. Documented weight of the version without a holding brake is 3.6 kg. Mating connector, cable bend, coupling and other attached machine parts are not included in these device dimensions. Exact identification is based on the complete type number, material number, size, winding, encoder, shaft form, seal, brake version and connector orientation. Adjacent MSK040C variants can use different windings, encoders, shafts or brakes despite the same basic size. The dimensions describe the motor space for installation, transport and storage; extra clearance around the connector and shaft is outside the device dimensions.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product series | IndraDyn S MSK |
| Manufacturer / order / identification number | MSK040C-0450-NN-M1-UP0-NNNN |
| Material number | R911320614 |
| Device type | Synchronous servo motor |
| Frame size | 040 |
| Length code | C |
| Winding code | 0450 |
| Cooling method | Natural convection |
| Encoder | Optical multiturn absolute encoder, Hiperface, 128 increments |
| Connector | Rotatable through 240° |
| Shaft | Keyway according to DIN 6885-1 with shaft sealing ring |
| Holding brake | None |
| Design | Standard |
| Maximum torque | 8.1 Nm |
| Standstill current at 100 K | 3.1 A |
| Winding inductance | 37.9 mH |
| Dimensions | 124.5 × 82 × 185.5 mm (H × W × D, including shaft) |
| Weight | 3.6 kg |
