Control Techniques M700-034
Price on request
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
Its performance data and duty rating clearly assign the Control Techniques M700-03400078-A to Unidrive frame size 3. On a three-phase supply at 380 to 480 V AC and 45 to 66 Hz, the unit reaches 7.8 A continuous current at 3 kW motor power in Heavy Duty operation. Normal Duty ratings are 10.4 A and 4 kW. The product code identifies an AC input and AC output with an internal line reactor. Integrated communications include EtherNet/IP, Modbus TCP, RTMoE and PROFINET. The Ethernet protocols of the M700 platform are therefore available without an additional communications module. The platform also provides two position-feedback ports and an integrated advanced motion controller. An integrated braking transistor is part of the equipment for frame sizes 3 to 8. Motor control includes open-loop and closed-loop methods. In Open Loop operation, the standard maximum output frequency reaches 599 Hz; Closed Loop and sensorless RFC methods are specified up to 550 Hz as standard. The switching frequency can be set from 2 to 16 kHz. These figures describe the technical operating limits of the platform for system configuration. The enclosure is classified as IP20, NEMA 1 or UL Open Class; Type 1 is achieved with an additional kit. The ambient-temperature range without derating is -20 to +40 °C, and up to +55 °C with derating. Mechanical dimensions for frame size 3 are 365 mm high, 83 mm wide and 200 mm deep. The unit weighs 4.5 kg. Type number, power level, supply class and frame size together provide the exact variant assignment.

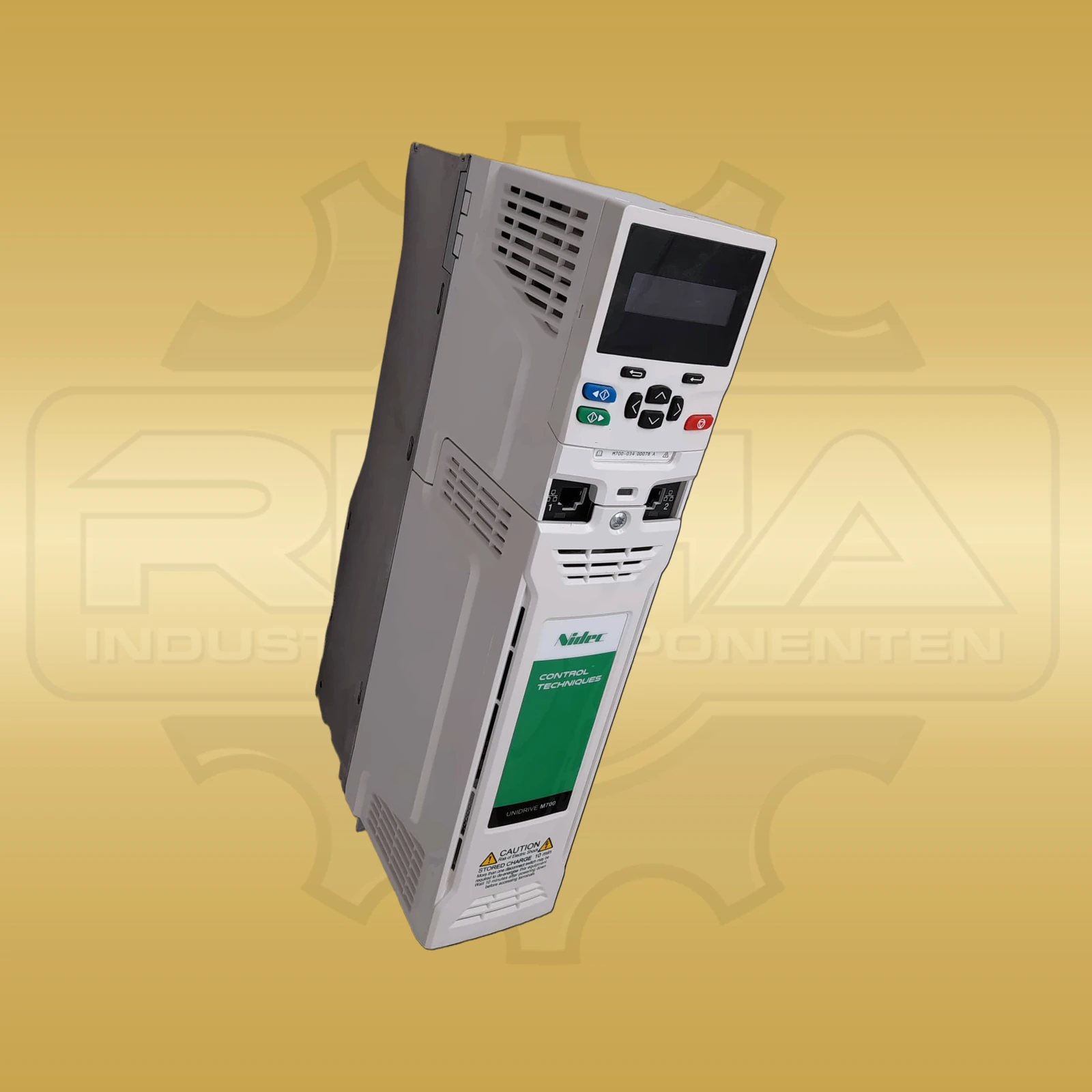

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Control Techniques |
|---|---|
| Product range | Unidrive M700 |
| Manufacturer/order/identification number | M700-03400078-A |
| Device type | AC drive controller |
| Frame size | 3 |
| Supply voltage | 380–480 V AC ±10 % |
| Phases | 3 |
| Heavy Duty continuous current | 7.8 A |
| Heavy Duty motor power | 3 kW |
| Normal Duty continuous current | 10.4 A |
| Normal Duty motor power | 4 kW |
| Input frequency | 45–66 Hz |
| Switching frequency | 2–16 kHz |
| Maximum output frequency | 599 Hz Open Loop; 550 Hz Closed Loop/RFC |
| Onboard communications | EtherNet/IP, Modbus TCP, RTMoE, PROFINET |
| Enclosure classification | IP20, NEMA 1, UL Open Class |
| Braking transistor | Integrated |
| Ambient temperature | -20 to +40 °C without derating; up to +55 °C with derating |
| Dimensions | 365 × 83 × 200 mm (H × W × D) |
| Weight | 4.5 kg |
