Product description

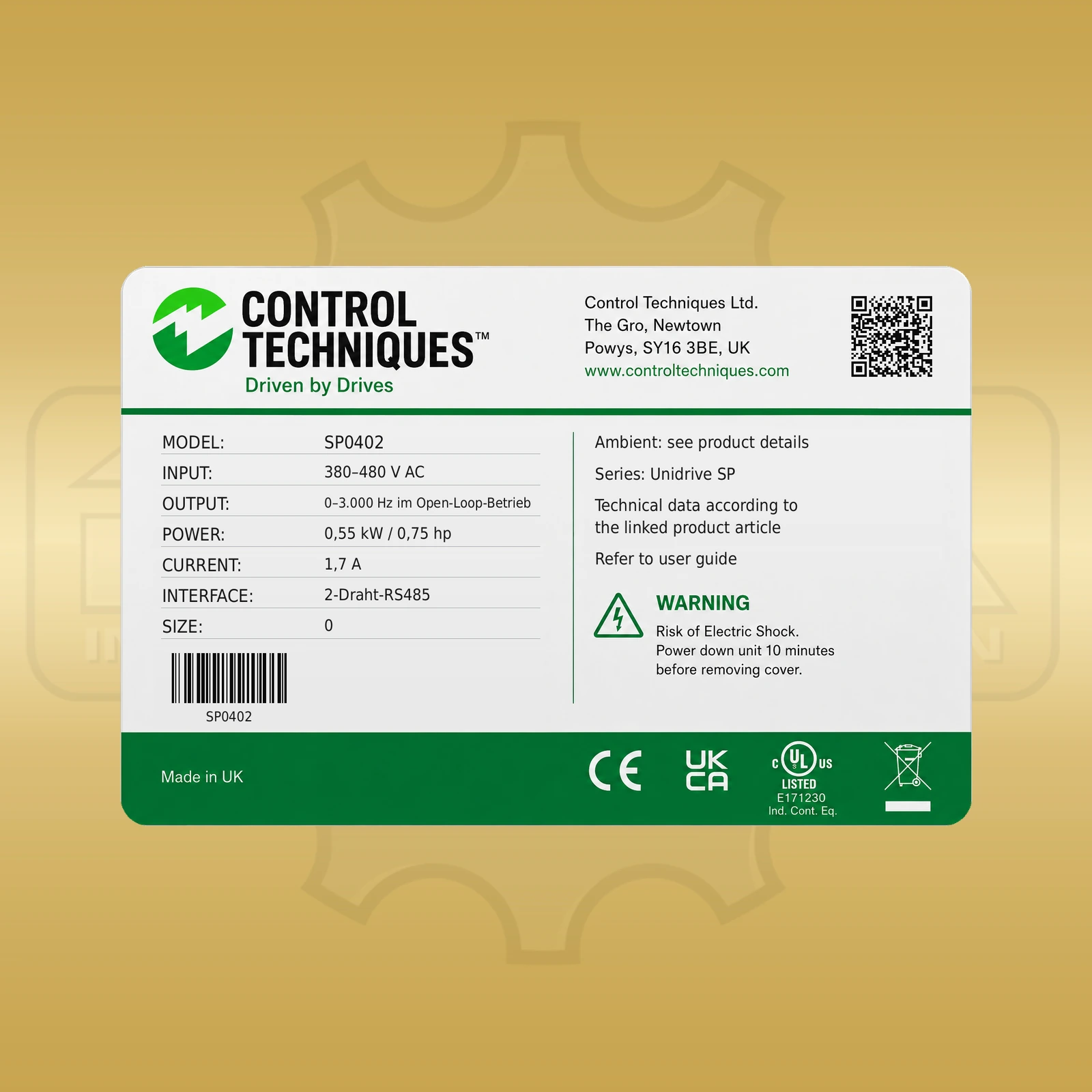

The Control Techniques SP0402 belongs to the universal Unidrive SP platform for demanding motor-control duties in machines and production systems. This compact frame-size 0 unit operates from a three-phase 380–480 V supply and provides a maximum continuous current of 1.7 A with a peak current of 2.9 A. Control Techniques assigns this version a typical motor rating of 0.55 kW or 0.75 hp. It is particularly suitable for smaller conveying, positioning, winding and auxiliary axes where an existing Unidrive SP configuration needs to be retained. The platform supports both open-loop operation and closed-loop speed or position control. In open-loop operation, the documented output frequency extends to 3,000 Hz; in closed-loop operation, speed commands up to 40,000 min⁻¹ are supported. A frequency resolution of 0.001 Hz and accuracy of ±0.01 percent of full scale allow finely tuned motion sequences. A two-wire RS485 interface with Modbus RTU or ANSI protocol is available for integration into control architectures. The standard dynamic braking transistor simplifies connection of a suitable braking resistor for short regenerative load cycles. As a frame-size 0 drive, the SP0402 accepts two SM option modules and can therefore be adapted to feedback, communications or additional I/O requirements. For a like-for-like replacement, the complete SP0402 model code, supply class, motor current, installed option modules, feedback device, braking resistor and parameter set must match the existing machine. Motor connections, protection concept and stored drive parameters should also be checked against the machine documentation before commissioning. This supports targeted repair of an established Unidrive SP system without unnecessary changes to the proven machine architecture.
Specifications
| Manufacturer | Control Techniques |
|---|---|
| Product series | Unidrive SP |
| Manufacturer / order / identification number | SP0402 |
| Device type | Universal AC and servo drive |
| Frame size | 0 |
| Supply voltage | 380–480 V AC |
| Phases | Three-phase input and output |
| Maximum continuous current | 1.7 A |
| Maximum peak current | 2.9 A |
| Typical motor rating | 0.55 kW / 0.75 hp |
| Control modes | Open loop and closed loop |
| Output frequency | 0–3,000 Hz in open-loop operation |
| Speed range | up to 40,000 min⁻¹ in closed-loop operation |
| Frequency accuracy | ±0.01 % of full scale |
| Frequency resolution | 0.001 Hz |
| Serial interface | Two-wire RS485 |
| Communication protocols | Modbus RTU or ANSI x 3.28-2.5-A4 |
| Braking function | Dynamic braking transistor fitted as standard |
| Option modules | Up to 2 SM option modules |
| Reference conditions | 40 °C ambient temperature, 6 kHz switching frequency |
Related products
Go to shop
Control Techniques 95UMB300CACAA
€1,700.00
Control Techniques M753-024
€2,350.00
Control Techniques SE23400075
€350.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What is the Control Techniques SP0402 used for?
The SP0402 controls smaller AC and servo motors in machine axes. It supports open-loop and closed-loop methods and is designed for three-phase 380–480-V drive systems.
What must be checked when replacing an SP0402?
Check the complete SP0402 model code, supply voltage, motor current, feedback device, option modules, braking resistor, terminal assignment and the existing parameter set.
