Control Techniques SP1203
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

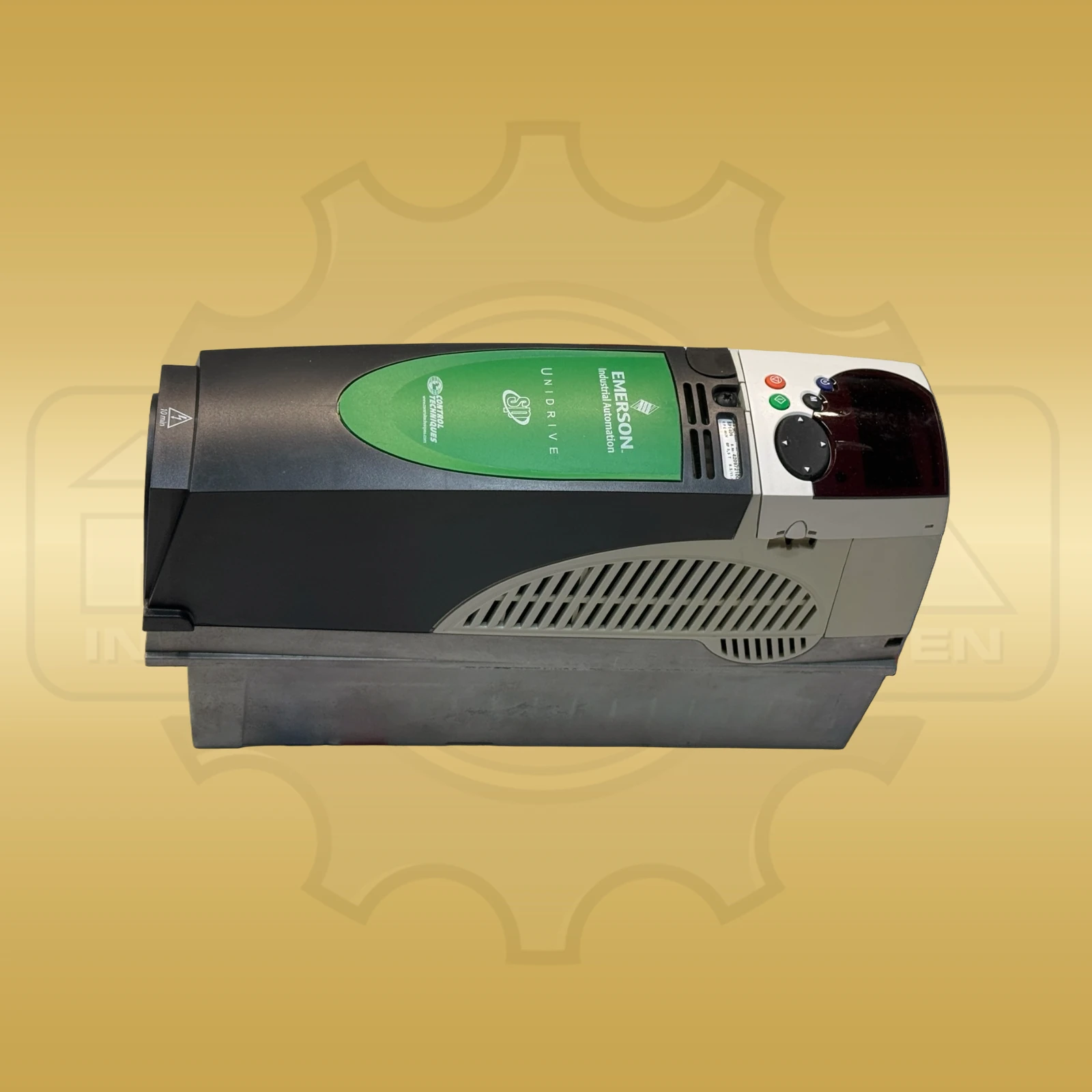

Control Techniques SP1406 is an AC frequency inverter from the Unidrive SP product range. The exact identification number denotes the three-phase frame-size-1 version for 380–480 V AC input. Documented input frequency is 48–65 Hz. Under Heavy Duty, motor power is 4 kW or 5 hp and output current is 9.5 A. Under Normal Duty, the data specify 5.5 kW or 7.5 hp and 11 A output current. These duty profiles remain separate rated-value assignments for the same device version. The manufacturer lists SP1406 within Unidrive SP frame size 1. This frame is 368 mm high, 100 mm wide and 219 mm deep. Complete external dimensions are therefore 368 × 100 × 219 mm in height × width × depth order. Documented weight of the individual unit is 5.8 kg. Dimensions and weight refer to the frequency inverter without shipping packaging. The narrow enclosure format defines the front area, overall height and device depth within a fixed mechanical envelope. The technical values identify the specific 400-V class. Unidrive SP provides Open Loop, Closed Loop and Servo control modes and three SM option slots. The base unit has an internal EMC filter to EN 61800-3. For EN 61000-6-4, external filter 4200-6119 is specified for SP1405 and SP1406. Braking resistor 1220-2756-01 is listed for frame size 1. The three-phase supply is fixed for this SP1406 version. Manufacturer, range, identification number, phases, input voltage, input frequency, Heavy Duty data, Normal Duty data, frame size, external dimensions and weight together define the variant.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Control Techniques |
|---|---|
| Product range | Unidrive SP |
| Manufacturer/order/identification number | SP1406 |
| Device type | AC variable frequency drive |
| Frame size | Size 1 / frame size 1 |
| Mains phases | 3-phase |
| Input voltage | 380–480 V AC |
| Input frequency | 48–65 Hz |
| Heavy-duty motor power | 4 kW / 5 hp |
| Heavy-duty output current | 9.5 A |
| Normal-duty motor power | 5.5 kW / 7.5 hp |
| Normal-duty output current | 11 A |
| Dimensions | 368 × 100 × 219 mm (H × W × D) |
| Weight | 5.8 kg |
Related products
Go to shop
Control Techniques SP1405
€740.00

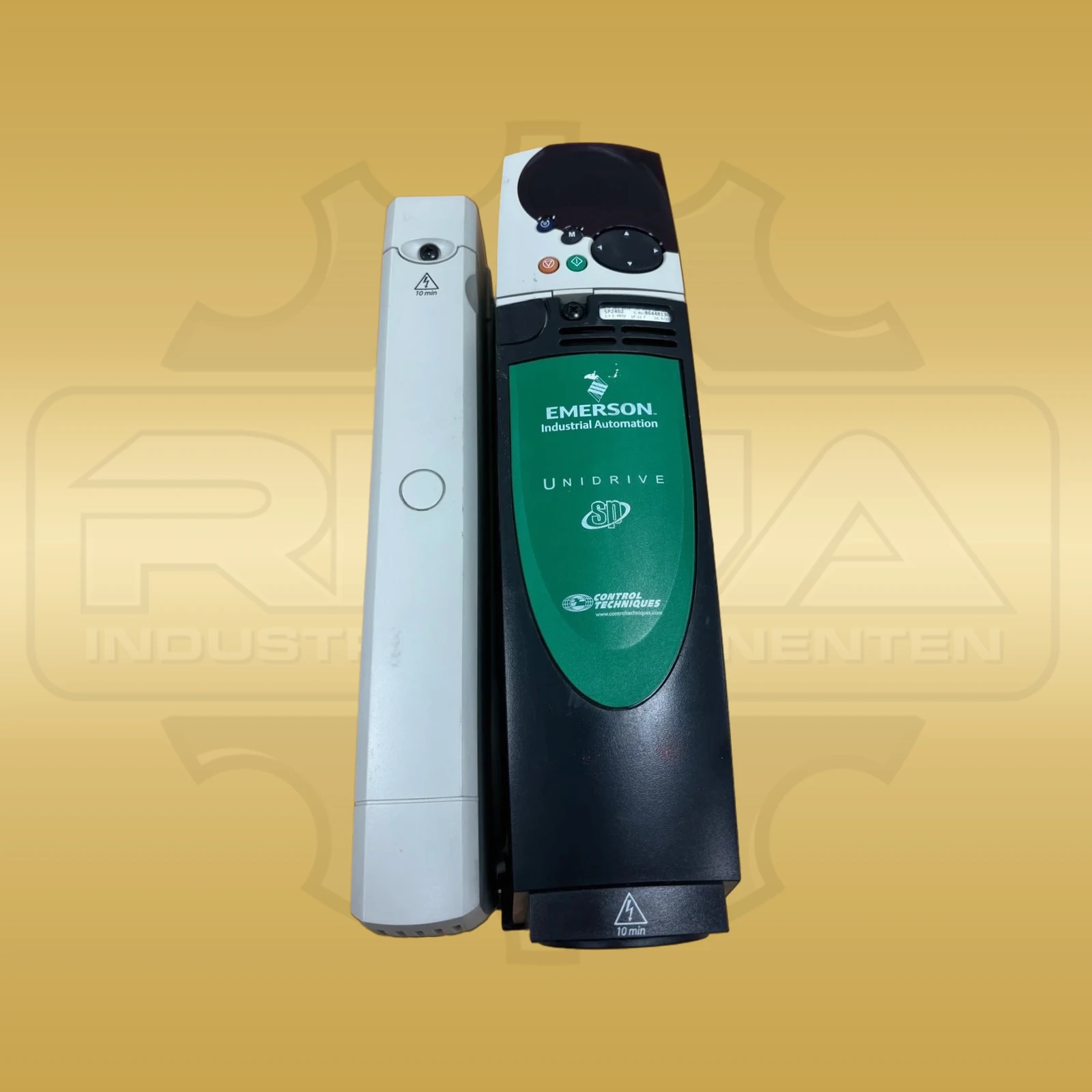

Control Techniques SP2402
€1,620.00
Control Techniques SP3401
€1,470.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions of Control Techniques SP1406?
Complete external dimensions are 368 × 100 × 219 mm in height × width × depth order.
How much does Control Techniques SP1406 weigh?
Documented unit weight is 5.8 kg.
