Control Techniques SP2402
€2,680.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description
Control Techniques SP2404 is a variable frequency drive from the Unidrive-SP range for demanding industrial drive applications. Frame size 2 is designed for three-phase supply networks from 380 to 480 V AC at 48 to 65 Hz. With 15 kW or 20 HP rated power and 29 A continuous output current, the unit is suitable for machines where an installed SP2404 must be replaced without changing the fundamental power class. For dynamic loads, the range documents overload ratings up to 43.5 A in Open-Loop operation for 60 seconds and up to 50.7 A in Closed-Loop operation for 20 seconds. Unidrive SP supports V/f control, Open-Loop vector control, Closed-Loop control, servo operation and regenerative applications. This allows the same hardware platform to be used in conveyors, winders, pumps, machine tools or positioning axes, provided that motor, encoder and application data match the existing parameter set. The integrated RS-485 interface supports Modbus RTU, while three option slots accommodate additional encoder, communication or application modules. A braking chopper for dynamic braking and DC braking functions are provided as standard. Selectable switching frequencies from 3 to 16 kHz allow motor noise, control performance and thermal load to be balanced. The IP20-/NEMA-1 enclosure is intended for control-cabinet installation. Approximate dimensions of 389 x 155 x 219 mm and a weight of about 7 kg make the mechanical assignment to frame size 2 transparent. Before replacement, the complete type number, supply voltage, motor power, operating mode, option modules and parameter set should be checked. This enables the SP2404 to be procured specifically for existing Unidrive-SP applications and planned maintenance windows.
Specifications
| Manufacturer | Control Techniques |
|---|---|
| Product range | Unidrive SP |
| Manufacturer/order/identification number | SP2404 |
| Device type | AC variable frequency drive and servo drive |
| Supply voltage | Three-phase 380 to 480 V AC ±10 % |
| Input frequency | 48 to 65 Hz |
| Rated power | 15 kW / 20 HP |
| Continuous output current | 29 A |
| Open Loop overload current | 43.5 A for 60 s |
| Closed Loop overload current | 50.7 A for 20 s |
| Control methods | V/f, Open Loop Vector, Closed Loop, Servo and Regeneration |
| Communication | RS-485 with Modbus RTU |
| Option slots | 3 |
| Braking function | DC braking and integrated dynamic braking chopper |
| Switching frequencies | 3, 4, 6, 8, 12 or 16 kHz |
| Open Loop output frequency | 0 to 3,000 Hz |
| Closed Loop speed range | 0 to 40,000 min⁻¹ |
| Degree of protection | IP20 / NEMA 1 |
| Dimensions | Approx. 389 x 155 x 219 mm |
| Weight | Approx. 7 kg |
Related products
Go to shop
Control Techniques SP1403
Price on request
Control Techniques UNI2403
€1,800.00

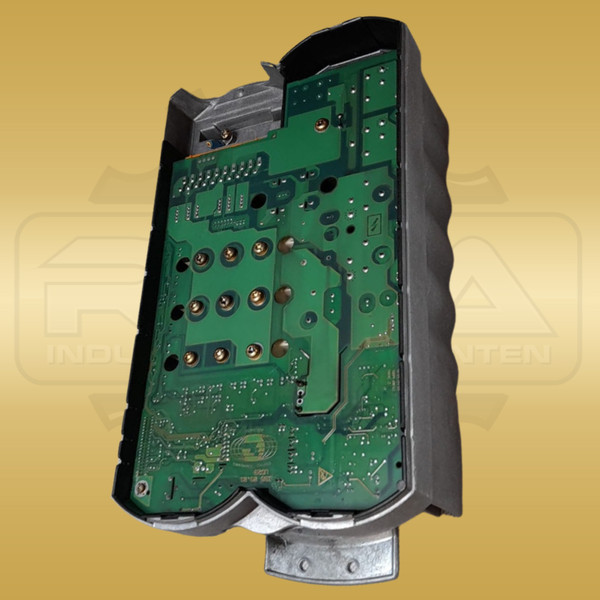

Control Techniques UNI2401
€310.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What power rating does the Control Techniques SP2404 provide?
The Unidrive SP2404 is documented for 15 kW or 20 HP and 29 A continuous output current.
Which control methods does the SP2404 support?
The Unidrive-SP platform supports V/f control, Open-Loop vector control, Closed-Loop control, servo operation and regenerative applications.
