Control Techniques UNI1402
Price on request
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

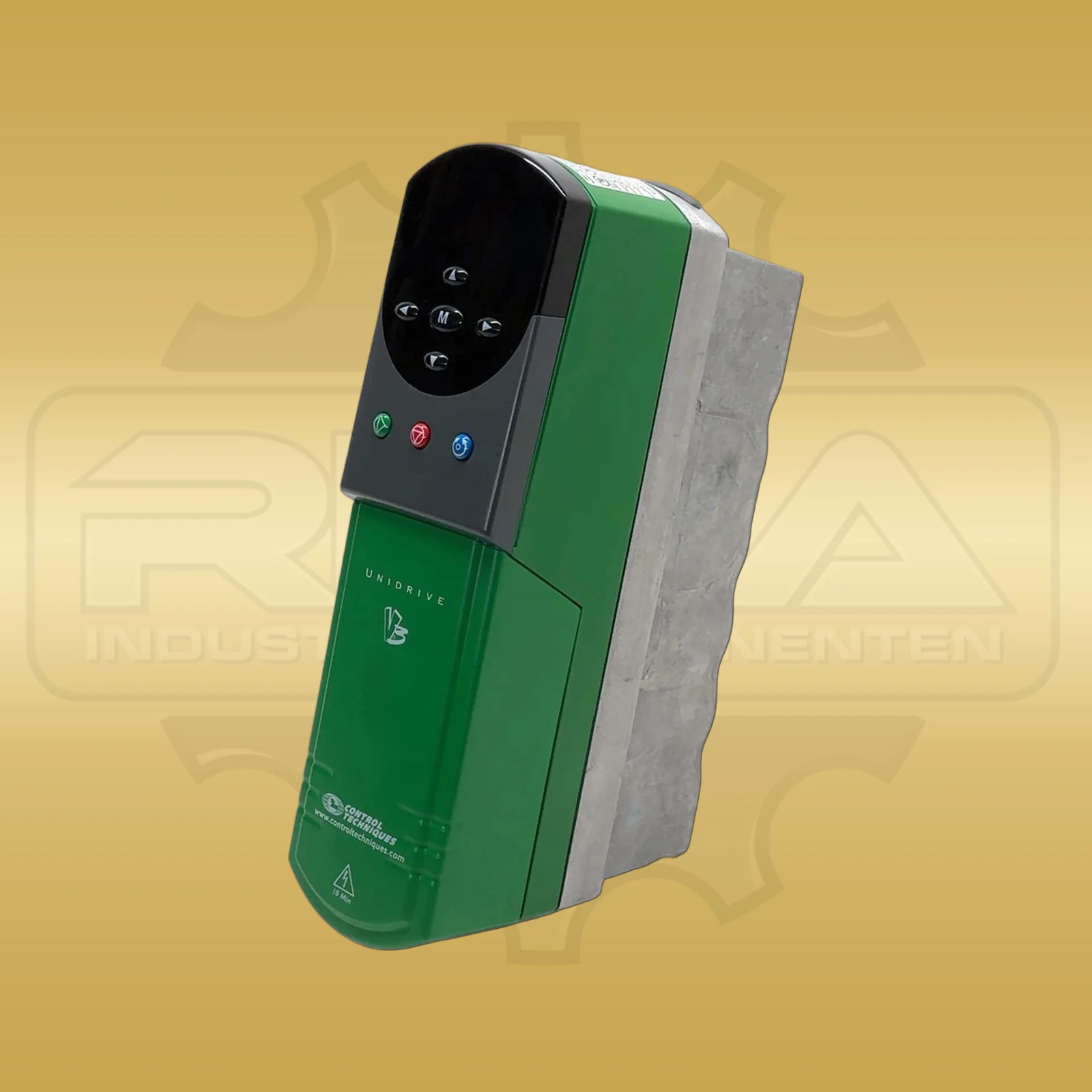

Control Techniques UNI1405 is a variable frequency drive from the Unidrive Classic range for demanding industrial drive applications. This version belongs to the 400-V class and, according to the Unidrive user guide, is designed for a three-phase supply of 380 to 480 V AC. With a nominal rating of 4 kW, 5 hp and up to 9.5 A output current at 40 °C, it is suitable for motor, machine and axis applications where an existing Unidrive of the same type must be replaced or an installed drive system restored. The platform supports open-loop operation with V/f or vector control, closed-loop vector control, servo operation and regenerative operation. It can therefore be used with standard induction motors as well as feedback-controlled drive systems, provided that the motor, encoder, option modules and parameters match the specific machine. For electrical comparison, the complete type number, typical input current of 10 A, maximum continuous input current of 12 A, recommended 16 A fuse and 2.5 mm² conductor size are particularly relevant. The drive is frame size 1, weighs approximately 4 kg and measures about 366 × 95 × 200 mm when surface mounted. Suitable brackets allow either surface or through-panel mounting. Before replacement, document the control terminals, encoder feedback, braking circuit, option modules, motor data and parameter set, then compare them with the replacement unit. This applies to planned maintenance as well as urgent downtime. Control Techniques UNI1405 therefore remains a dependable replacement for older machinery, production systems and retrofit projects based on an existing Unidrive architecture.
Specifications
| Manufacturer | Control Techniques |
|---|---|
| Product range | Unidrive Classic |
| Manufacturer / order / identification number | UNI1405 |
| Device type | Variable frequency drive / AC drive controller |
| Supply connection | three-phase, 380 to 480 V AC ±10 % |
| Supply frequency | 50/60 Hz |
| Nominal power | 4 kW / 5 hp |
| Output current at 40 °C | max. 9.5 A at 3 and 4.5 kHz PWM |
| Output current at 50 °C | 6.9 A at 3 kHz; down to 3.3 A at 12 kHz PWM |
| Typical input current | 10 A |
| Maximum continuous input current | 12 A |
| Recommended fuse | 16 A |
| Conductor size | 2.5 mm² / 14 AWG |
| Control modes | V/f, open-loop vector, closed-loop vector, servo and regeneration |
| PWM switching frequencies | 3; 4.5; 6; 9 or 12 kHz, default 3 kHz |
| Frame size | Unidrive size 1 |
| Dimensions | approx. 366 × 95 × 200 mm when surface mounted |
| Weight | approx. 4 kg |
| Mounting | surface or through-panel mounting with suitable brackets |
| Ingress protection | IP00 without gland plate; up to IP40 / NEMA 1 with gland plate and cable glands fitted |
Related products
Go to shop
Control Techniques UNI2402
Price on request

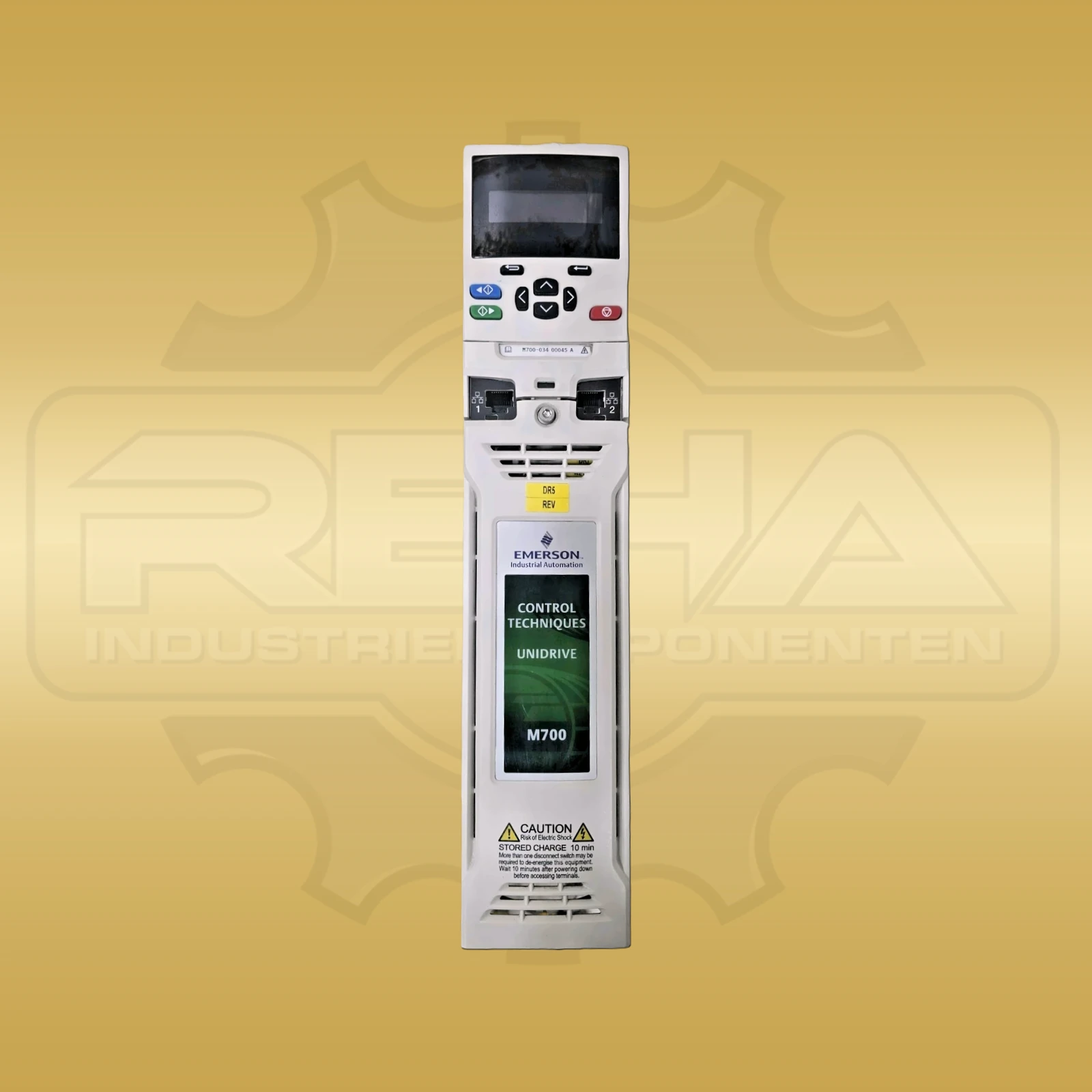

Control Techniques M700-034
Price on request
Control Techniques SK2403
Price on request
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What power and voltage ratings does Control Techniques UNI1405 have?
The UNI1405 belongs to the 400-V class for three-phase 380 to 480 V AC and is rated for 4 kW or 5 hp according to the Unidrive user guide.
Which control modes does the UNI1405 support?
The Unidrive platform supports V/f and open-loop vector control as well as closed-loop vector, servo and regenerative operation. The specific machine configuration must be transferred and checked before replacement.
