Control Techniques SP0402
Price on request
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

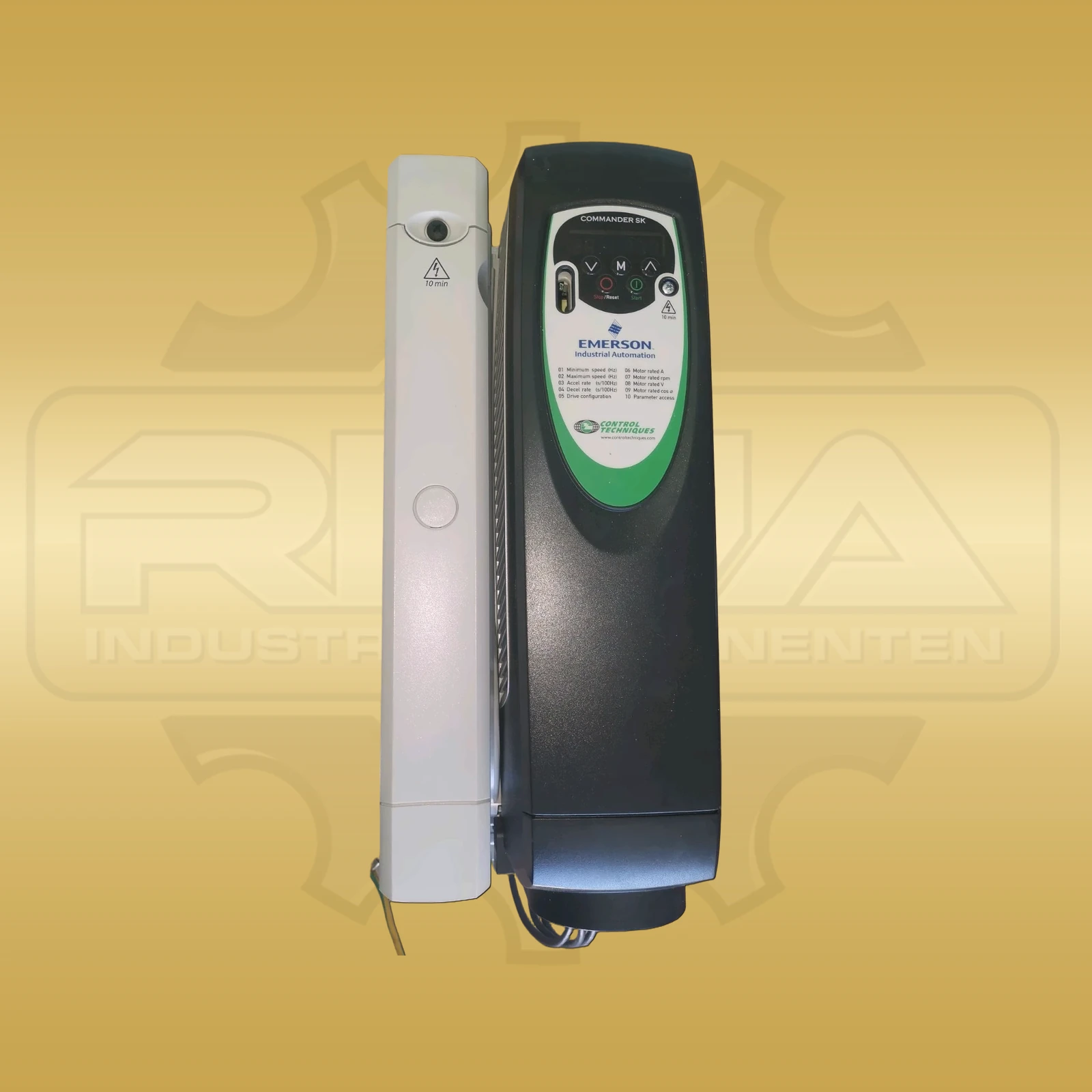

Control Techniques SK2403 is a Commander SK series frequency inverter for general industrial speed and torque applications. The device operates from a three-phase 380 to 480 V AC supply at 50 or 60 Hz. In Normal Duty, the documented ratings are 15 kW motor power and 29 A continuous current; Heavy Duty provides 11 kW and 25 A. These two duty classes are particularly important when identifying a spare part because motor power and permissible output current depend on the application. Commander SK supports open-loop vector control and V/f control for asynchronous motors. The maximum overload is specified as 150 percent of rated current for 60 seconds. Switching frequency can be set to 3, 6, 12 or 18 kHz, and output frequency extends to 1,500 Hz. A dynamic braking chopper and DC injection braking are included in the documented functions. Digital and analog inputs and outputs plus a serial communication interface are available for control. The enclosure has an IP20 rating and uses forced-air cooling. With a width of 155 mm, height of 368 mm, depth of 219 mm and weight of approximately 7 kg, control-cabinet space and handling can be assessed precisely before replacement. The integrated keypad also provides direct access to the basic commissioning parameters at the control cabinet. Control Techniques lists the Commander SK series in the maintenance lifecycle stage and names Commander C200 as its successor platform. For repair or retrofit, however, the complete SK2403 type number, supply voltage, duty class, motor current, braking resistor, control terminals, communication options and saved parameter set must be checked for the specific machine. General interchangeability with a successor device is not assumed.
Specifications
| Manufacturer | Control Techniques |
|---|---|
| Product series | Commander SK |
| Manufacturer / order / identification number | SK2403 |
| Device type | Frequency inverter |
| Supply connection | 3-phase |
| Supply voltage | 380 to 480 V AC ±10 % |
| Supply frequency | 50/60 Hz |
| Motor power Normal Duty | 15 kW |
| Motor power Heavy Duty | 11 kW |
| Output current Normal Duty | 29 A |
| Output current Heavy Duty | 25 A |
| Overload capability | 150 % for 60 s |
| Control mode | open-loop vector control |
| Control method | V/f control |
| Switching frequency | 3 / 6 / 12 / 18 kHz |
| Maximum output frequency | 1,500 Hz |
| Braking functions | dynamic braking chopper and DC injection braking |
| Degree of protection and cooling | IP20, forced-air cooling |
| Dimensions | 155 x 368 x 219 mm |
| Weight | approx. 7 kg |
Related products
Go to shop
Control Techniques SP0405
Price on request

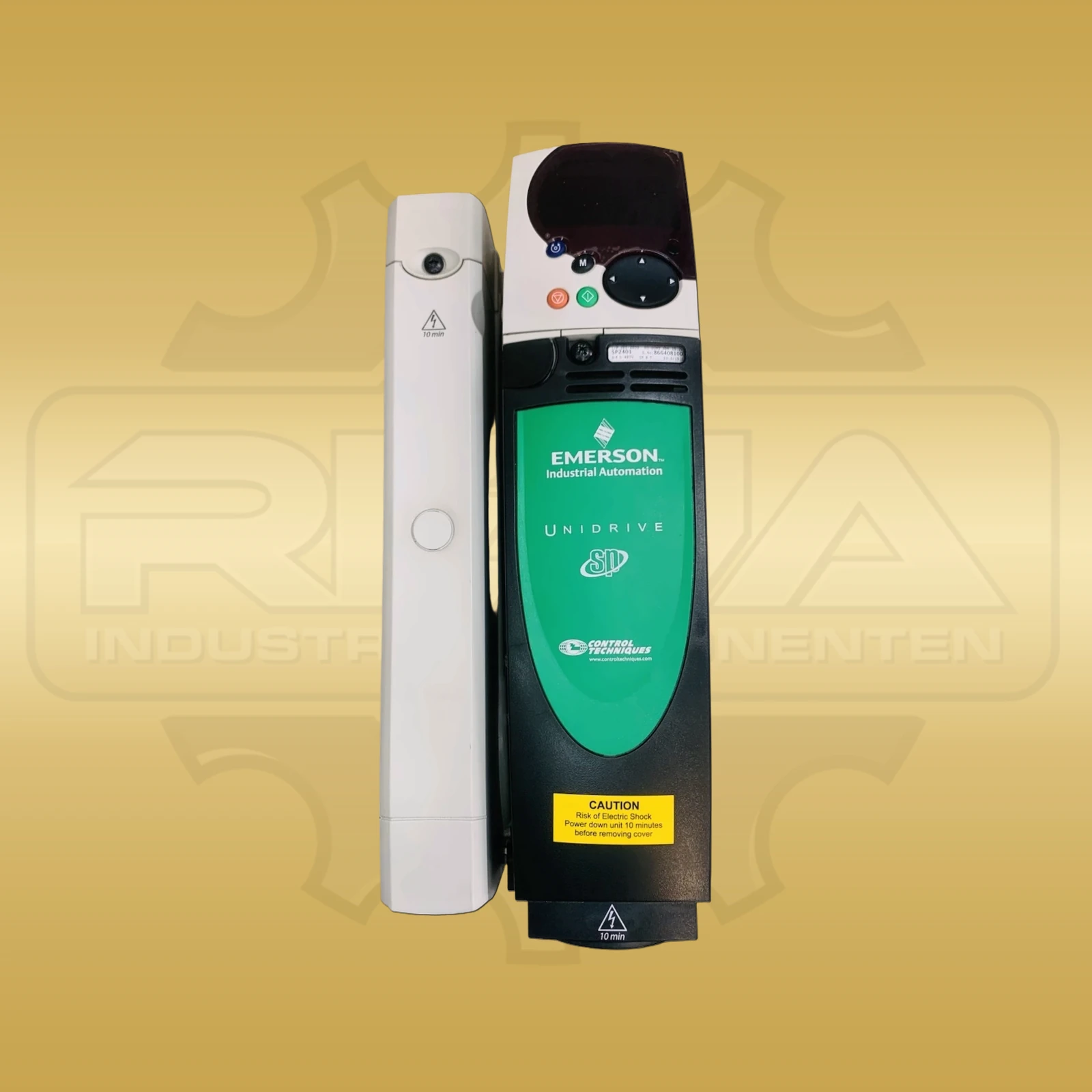

Control Techniques SP2401
€1,330.00

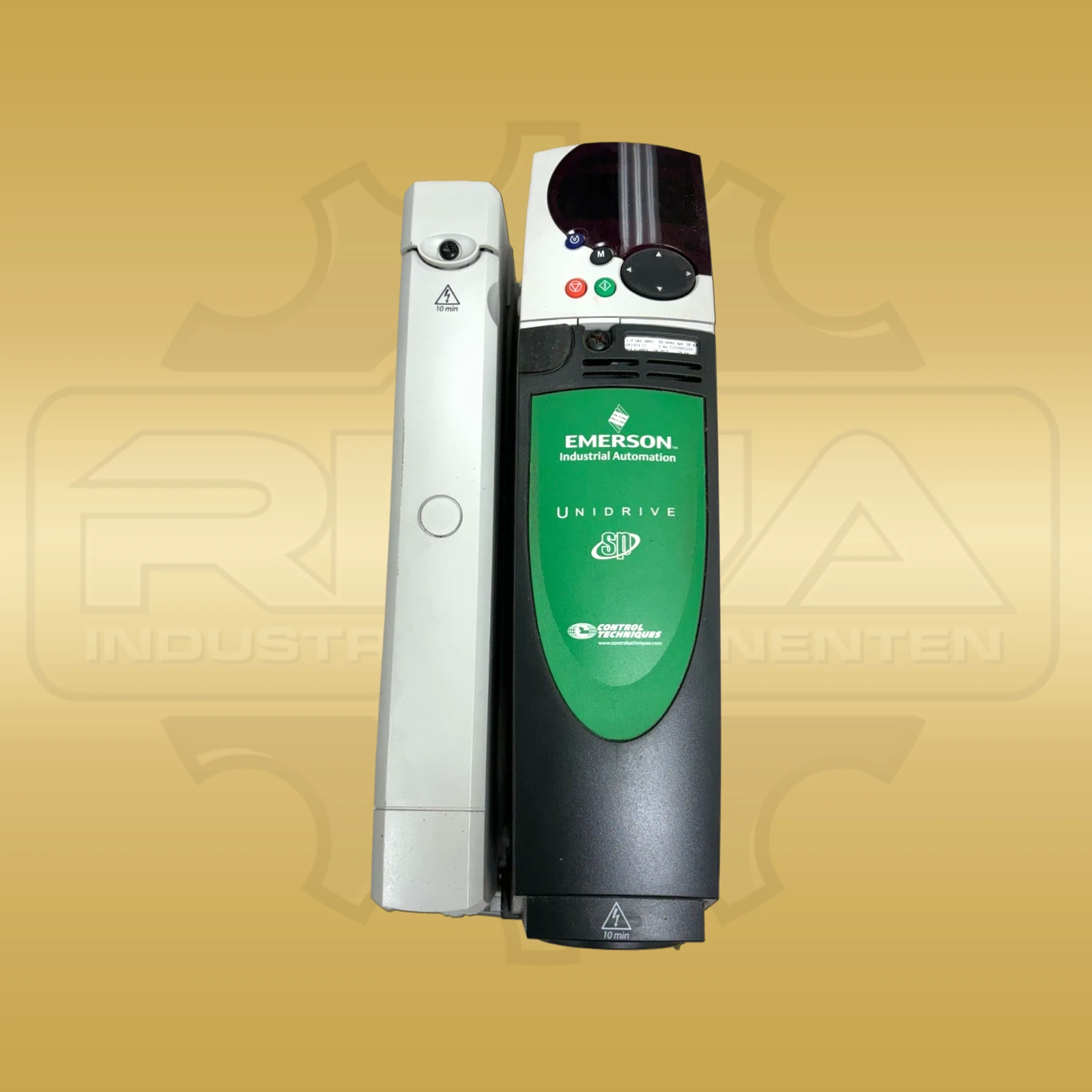

Control Techniques SP2404
Price on request
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What power rating does Control Techniques SK2403 provide?
SK2403 provides 15 kW and 29 A in Normal Duty or 11 kW and 25 A in Heavy Duty.
Which control methods does SK2403 support?
Commander SK supports open-loop vector control and V/f control for three-phase asynchronous motors.
