Danfoss 130B1235
€640.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

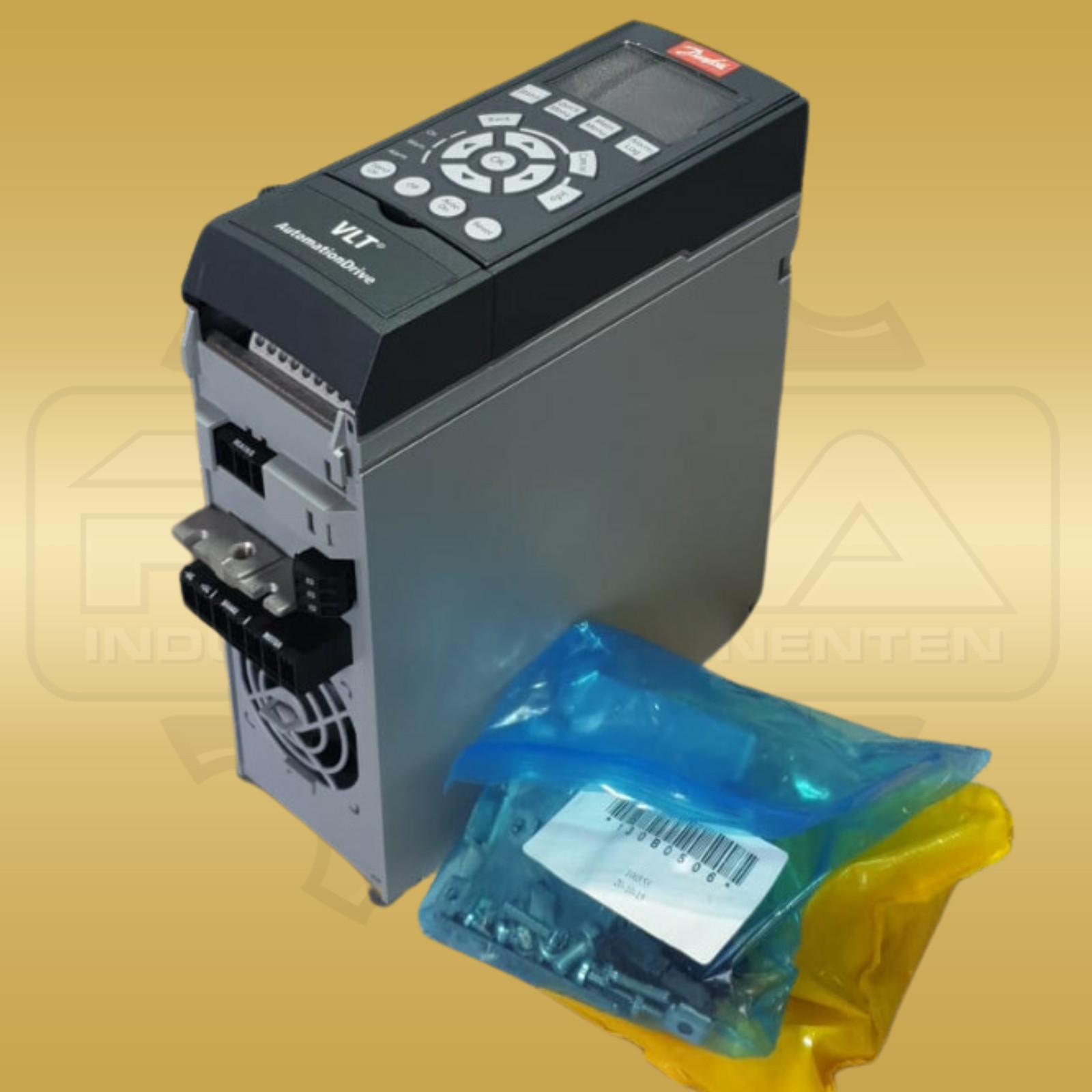

Danfoss 134G2553 is a compact VLT AutomationDrive FC 301 frequency inverter. This version has a documented three-phase mains range from 380 to 480 V AC and a rated output of 0.55 kW or 0.75 HP. Continuous output current is 1.8 A at 380 to 440 V and 1.6 A at 441 to 480 V. For short load peaks, the corresponding values are 2.9 A and 2.6 A. Overload capability is 160 percent for one minute. Apparent power is 1.3 kVA at 400/460 V, typical power loss is 42 W and efficiency is 0.95. The IP20 unit uses frame size A1. Its H3 filter meets RFI class A1/B, or C1. A graphical Local Control Panel provides local operation, while Safe Stop is the stated safety function. The complete type code is FC-301PK55T4Z20H3TGXXXXSXXXXALBXCXXXXDX. External dimensions of the base unit are 75 mm in width, 200 mm in height and 207 mm in depth. Complete dimensions are therefore 75 × 200 × 207 mm. Documented net weight is 2.76 kg. Manufacturer, product range and manufacturer/order/identification number are Danfoss, VLT AutomationDrive FC 301 and 134G2553. Electrical ratings, frame, filter class, control panel, safety function, dimensions and weight therefore belong to the exactly identified device version.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Danfoss |
|---|---|
| Product range | VLT AutomationDrive FC 301 |
| Manufacturer/order/identification number | 134G2553 |
| Device type | Frequency inverter |
| Device type code | FC-301PK55T4Z20H3TGXXXXSXXXXALBXCXXXXDX |
| Rated power | 0.55 kW / 0.75 HP |
| Mains supply | Three-phase, 380–480 V AC |
| Output current | 1.8 A at 380–440 V / 1.6 A at 441–480 V |
| Intermittent output current | 2.9 A at 380–440 V / 2.6 A at 441–480 V |
| Overload capability | 160% for 1 minute |
| Apparent power | 1.3 kVA at 400/460 V |
| Maximum input current | 1.6 A at 380–440 V / 1.4 A at 441–480 V |
| Degree of protection / frame | IP20, frame A1 |
| EMC filter | H3, RFI class A1/B (C1) |
| Safety function | Safe Stop |
| Control panel | Graphical Local Control Panel (LCP) |
| Efficiency | 0.95 |
| Power loss | 42 W |
| Dimensions | 75 × 200 × 207 mm (W × H × D) |
| Weight | 2.76 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What are the dimensions and weight of Danfoss 134G2553?
Complete external dimensions are 75 × 200 × 207 mm in width × height × depth order. Net weight is 2.76 kg.
What power and mains voltage does Danfoss 134G2553 use?
The frequency inverter has a rated output of 0.55 kW. Its documented three-phase mains range is 380 to 480 V AC.
