Fanuc A06B-0372-B175
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

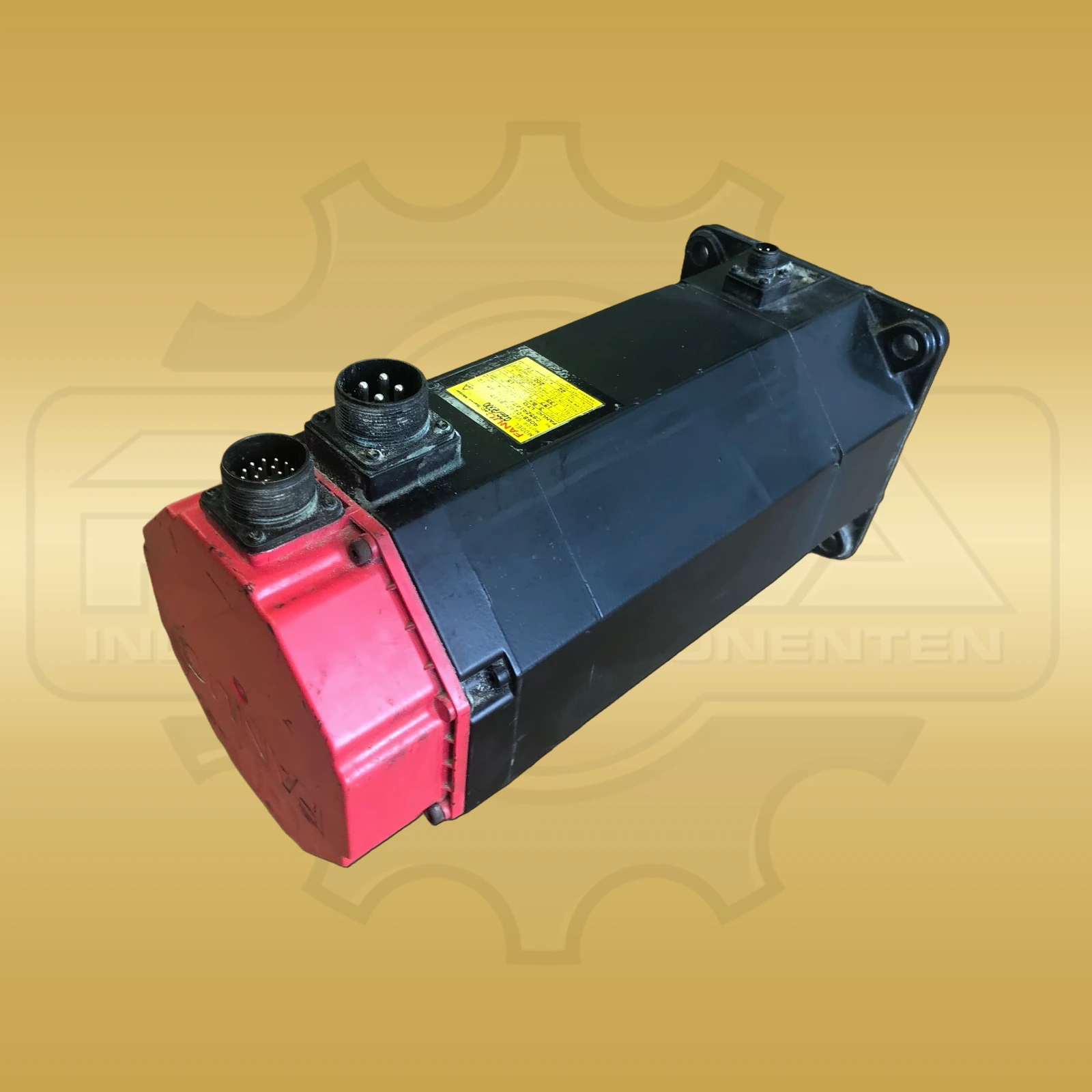

Order number Fanuc A06B-0147-B177 identifies an Alpha Series AC synchronous servo motor in model A22/2000. Rated output is 3.8 kW, stall torque is 22 Nm and rated speed is 2,000 U/min. The documented stall current is 18.7 A RMS. The electrical version is three-phase and specified at 157 V AC, 133 Hz and 15 A. The B177 configuration has a straight shaft and an integrated holding brake. Encoder code 77 identifies the i64 Pulsecoder. The holding brake operates at 90 V DC and provides 35 Nm braking torque. The square flange measures 174 × 174 mm. Complete axial length of the braked α22 version is 386 mm. External dimensions are therefore 174 × 174 × 386 mm in width × height × depth order. The unbraked base motor is documented at 29 kg, while the brake adds approx. 6.3 kg. The complete B177 version therefore has a conservatively marked weight of approx. 35.3 kg. Dimensions and weight refer to the individual motor without shipping packaging or machine-side attachments. Order number, model, shaft form, brake and encoder distinguish this version from other variants in the series. The braked housing contour is part of the specific mechanical configuration.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | FANUC |
|---|---|
| Product series | Alpha |
| Manufacturer/order/identification number | A06B-0147-B177 |
| Device type | AC synchronous servo motor |
| Model | Alpha A22/2000 |
| Rated power | 3.8 kW |
| Standstill torque | 22 Nm |
| Rated speed | 2,000 U/min |
| Rated voltage | 157 V AC |
| Phases | 3 |
| Rated frequency | 133 Hz |
| Rated current | 15 A |
| DC current | 18.7 A RMS |
| Encoder | i64 |
| Shaft | Straight shaft |
| Holding brake | 90 V DC, 35 Nm |
| Dimensions | 174 × 174 × 386 mm (W × H × D) |
| Weight | approx. 35.3 kg |
