Fanuc A06B-0117-B855#0049
€1,090.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

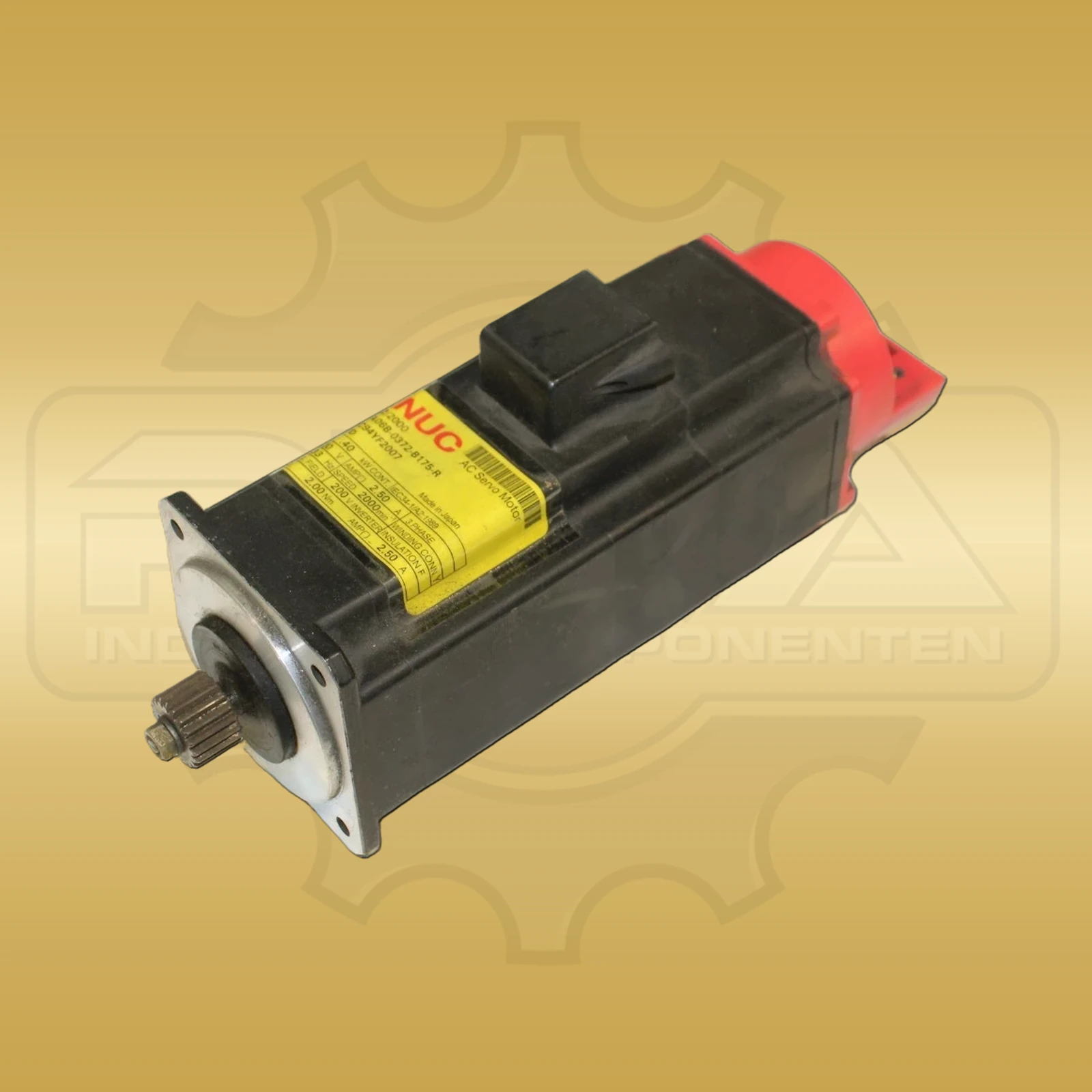

The Fanuc A06B-0372-B175 is a compact Alpha-family AC servo motor for controlled feed and positioning axes in CNC machines. The documented version corresponds to the α2/2000 model and reaches a rated speed of 2,000 min⁻¹. It operates at 120 V, 2.2 A and 133 Hz; its documented power rating is 400 W and its torque is 2 Nm. An A64 absolute encoder provides position and speed feedback to the compatible Fanuc servo amplifier. The integrated holding brake secures the stationary axis but is not intended for repeated dynamic braking. Mechanically, the motor has a tapered shaft with keyway and flange mounting. These features must match the coupling, mating flange and available installation space in the existing machine. Class F insulation supports industrial duty within the permitted thermal load. The IP67 motor housing is protected against dust and temporary immersion when connectors and installation are implemented accordingly. The documented weight is approximately 5.58 kg. For a like-for-like replacement, the complete A06B-0372-B175 order number, motor and speed class, A64 encoder, brake, shaft type, connectors and motor cables must be matched exactly. The existing coupling, cable shielding and mounting position also affect safe mechanical and electrical integration of the replacement axis. Variants with a different suffix must not be treated as equivalent without verification because encoder, shaft or connector configurations may differ. Fanuc amplifier assignment, motor data, encoder counting direction and machine parameters must be checked against the original documentation before commissioning. This motor is therefore suitable for repair, retrofit and strategic spare-parts stocking for established Fanuc CNC axes.
Specifications
| Manufacturer | Fanuc |
|---|---|
| Product series | FANUC Alpha |
| Manufacturer / order / identification number | A06B-0372-B175 |
| Device type | AC servo motor |
| Motor model | α2/2000 |
| Rated power | 400 W |
| Rated voltage | 120 V AC |
| Rated current | 2.2 A |
| Rated frequency | 133 Hz |
| Rated speed | 2,000 min⁻¹ |
| Torque | 2 Nm |
| Encoder | A64 absolute encoder |
| Holding brake | Fitted |
| Shaft | Tapered shaft with keyway |
| Mounting | Flange mounting |
| Insulation class | F |
| Degree of protection | IP67 |
| Weight | approx. 5.58 kg |
Related products
Go to shop
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What is the Fanuc A06B-0372-B175 used for?
The motor drives controlled feed and positioning axes in Fanuc CNC machines and provides feedback through an A64 absolute encoder.
What must be checked when replacing it?
The complete order number, 120-V and 2.000-min⁻¹ version, A64 encoder, holding brake, tapered keyed shaft, flange, cables and amplifier parameters are decisive.
