Fanuc A06B-0227-B400
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

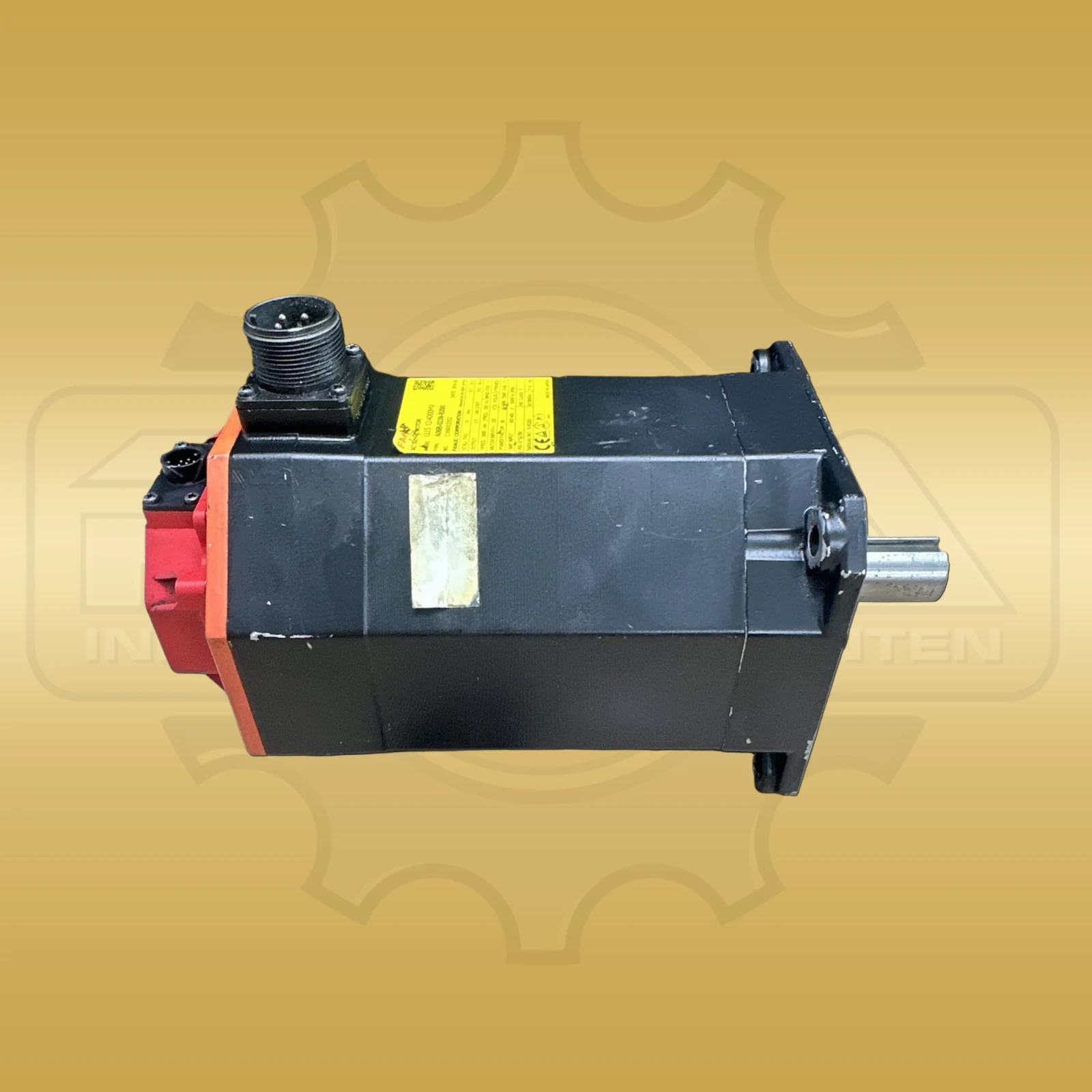

Order number Fanuc A06B-0239-B200 identifies an Alpha-iS Series AC servo motor in the high-voltage αiS 12/4000HV version. Rated output is 2.5 kW and stall torque is 12 Nm. The motor reaches 3000 min-1 rated speed and a maximum of 4000 min⁻¹. The documented stall current is 6.7 A RMS, and maximum torque is 46 Nm. Rotor inertia of the unbraked version is 0.00228 kg·m². The motor belongs to the 400-V class. The B200 configuration has a straight shaft with keyway and no holding brake. Position feedback is provided by an Alpha-iA-1000 Pulsecoder. The square front contour measures 130 × 130 mm. Complete axial length of the unbraked αiS-12 construction is 222 mm. External dimensions are therefore 130 × 130 × 222 mm in width × height × depth order. The documented weight without brake is 11.9 kg. Dimensions and weight refer to the individual motor without shipping packaging or machine-side attachments. Complete order number, high-voltage version, shaft form, absence of a brake and encoder distinguish this variant unambiguously. The unbraked version therefore has a shorter axial contour than the braked family variant. Flange size and axial contour belong to the specific motor housing size and are not shipping dimensions.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | FANUC |
|---|---|
| Product series | Alpha iS |
| Manufacturer / order / identification number | A06B-0239-B200 |
| Device type | AC servo motor |
| Motor model | Alpha iS12/4000HV |
| Motor specification | 0239 |
| Drive class | 400-V configuration (HV) |
| Maximum speed | 4000 min⁻¹ |
| Continuous output | 2.5 kW |
| Maximum acceleration output | 12 kW |
| Shaft | Standard straight shaft |
| Keyway | Provided |
| Feedback | Alpha iA 1000 Pulse Coder |
| Motor ID HRV1 | 189 |
| Motor ID HRV2 | 289 |
| Ambient temperature | 0 to 40 °C |
| Permitted humidity | max. 80 % RH, non-condensing |
| Dimensions | 130 × 130 × 222 mm (W × H × D) |
| Weight | 11.9 kg |
