Product description

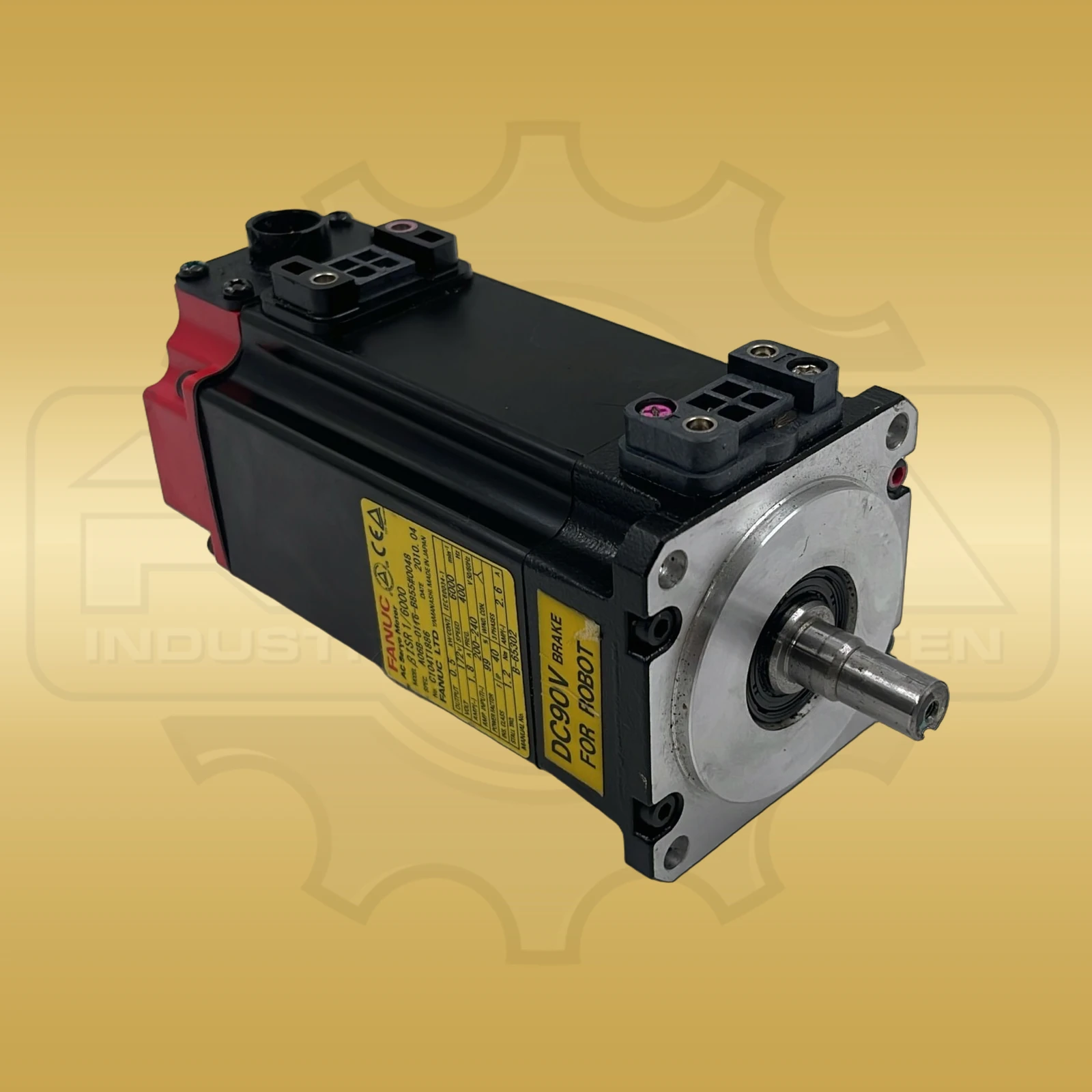

The FANUC A06B-0116-B855#0048 is a compact AC servo motor from the βiSR 1/6000 range for precise, fast-moving industrial machine axes. The complete FANUC order number identifies a specific version with a straight shaft, keyway, and integrated 90 V DC holding brake. The motor reaches up to 6000 min⁻¹ and is listed with 0.5 kW power, 172 V motor voltage, 1.8 A current, and 1.2 Nm torque. It is therefore a targeted replacement part for existing FANUC robot or CNC axes whose mechanics, servo amplifier, and feedback system are matched to this motor variant. Depending on the measurement reference, the compact housing is approximately 150 × 70 × 70 mm; documented weight is about 1.7 kg. For replacement procurement, the A06B-0116 base family alone is not sufficient: the B855 and #0048 codes must also match because they define shaft, brake, and feedback characteristics of the exact variant. Before installation, compare the nameplate, connectors, pin assignment, pulsecoder version, brake supply, flange and shaft dimensions, and assignment to the installed FANUC servo amplifier. The saved machine parameter set and the mechanical coupling must also suit the axis. After replacement, check the brake, feedback, direction of rotation, reference position, and axis limits against the machine documentation. This component is intended for industrial motion control and may only be operated within a fully safeguarded machine control system. The A06B-0116-B855#0048 can therefore be used as a clearly identified replacement without confusing it with similar βiSR variants having a different shaft, brake, or feedback system.

Fanuc A06B-0116-B855#0048

Specifications

Manufacturer FANUC
Product series βiSR 1/6000
Manufacturer/order/identification number A06B-0116-B855#0048
Device type AC servo motor
Rated power 0.5 kW
Motor voltage 172 V
Motor current 1.8 A
Torque 1.2 Nm
Maximum speed 6000 min⁻¹
Brake version integrated holding brake
Brake supply 90 V DC
Shaft straight shaft
Shaft connection keyway
Feedback FANUC pulsecoder
Application robot and CNC servo axes
Dimensions approx. 150 × 70 × 70 mm
Weight approx. 1.7 kg
Design compact flange motor
Control cabinet with PLC modules and automation components
Machine downtime in a production environment

Machine downtime?

Faster delivery

Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.

Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.

Contact us now!

Product safety

Manufacturer / EU responsible person

FAQ

Frequently asked questions

Contact us
Which features must match when replacing the FANUC A06B-0116-B855#0048?

In addition to the complete order number, compare the βiSR-1/6000 version, keyed shaft, 90-V holding brake, pulsecoder, connectors, flange dimensions, and assignment to the installed FANUC servo amplifier.

Why is the #0048 suffix important for this FANUC servo motor?

The suffix is part of the exact variant code. A motor with a similar A06B-0116 base number may differ in feedback, connection, or equipment features and is therefore not automatically interchangeable.
