Heidenhain PL 110 B
Price on request
Availability is checked individually.
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- The estimated delivery time will be confirmed for the specific order.
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
The combination of binary outputs and three bipolar output pairs characterises the Heidenhain PL 110 B. As a PLC power board, it handles the electrical input and output in the environment of the TNC-151-Q and TNC-155-Q controls. The board provides 63 inputs, nine of which are permanently assigned. On the output side, 25 binary outputs and additionally the three bipolar pairs are available. This distinguishes its output arrangement from the PL 100 B with an exclusively binary output arrangement. The external PLC supply has 24 V DC rated voltage and a permissible range of 20.4 to 28.8 V. A specific quotation with shipping from Germany to the United States and other international destinations refers to the PL-110-B version with this mixed output stage. For the inputs, a voltage range of −3 to +4 V applies for signal 0 and of 16.5 to 30 V for signal 1. The input current in the high signal state is between 6.2 and 12.6 mA. Binary outputs operate nominally with 24 V and a maximum output current of 1.2 A. The values of the bipolar pairs are separate from this: their rated voltage of 15 V is measured between two outputs with opposite signal states. At 300 mA rated current, this voltage is between 14 and 15.5 V; up to 1.2 A are specified for one minute. The maximum switching frequency is 50 Hz. As the first board, the current consumption with open inputs and outputs and a disconnected second board is 460 ±25 mA. For the second board, 360 ±25 mA are specified.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Heidenhain |
|---|---|
| Product series | PL / TNC 151 and TNC 155 |
| Manufacturer/order/ident number | PL 110 B |
| Device type | PLC power board |
| Digital inputs | 63, of which 9 permanently assigned |
| Binary outputs | 25 |
| Bipolar outputs | 3 output pairs |
| Supply voltage | 24 V DC nominal; 20.4–28.8 V |
| Input voltage signal 0 / 1 | −3…+4 V / 16.5…30 V |
| Input current signal 1 | 6.2–12.6 mA |
| Binary output voltage | 24 V DC nominal; voltage drop max. 3 V |
| Binary output current | Max. 1.2 A |
| Bipolar output voltage | 15 V nominal between output pair; 14–15.5 V at rated current |
| Bipolar output current | 300 mA nominal; max. 1.2 A for 1 minute |
| Switching frequency | Max. 50 Hz |
| Current consumption first board | 460 ± 25 mA with open I/O and disconnected second board |
| Current consumption second board | 360 ± 25 mA with open I/O |
| Dimensions | approx. 300 × 200 × 50 mm |
| Weight (reference basis not stated) | 1.2 kg |
Related products
Go to shop
ABB ACS150-03E-03A3-4
Price on request

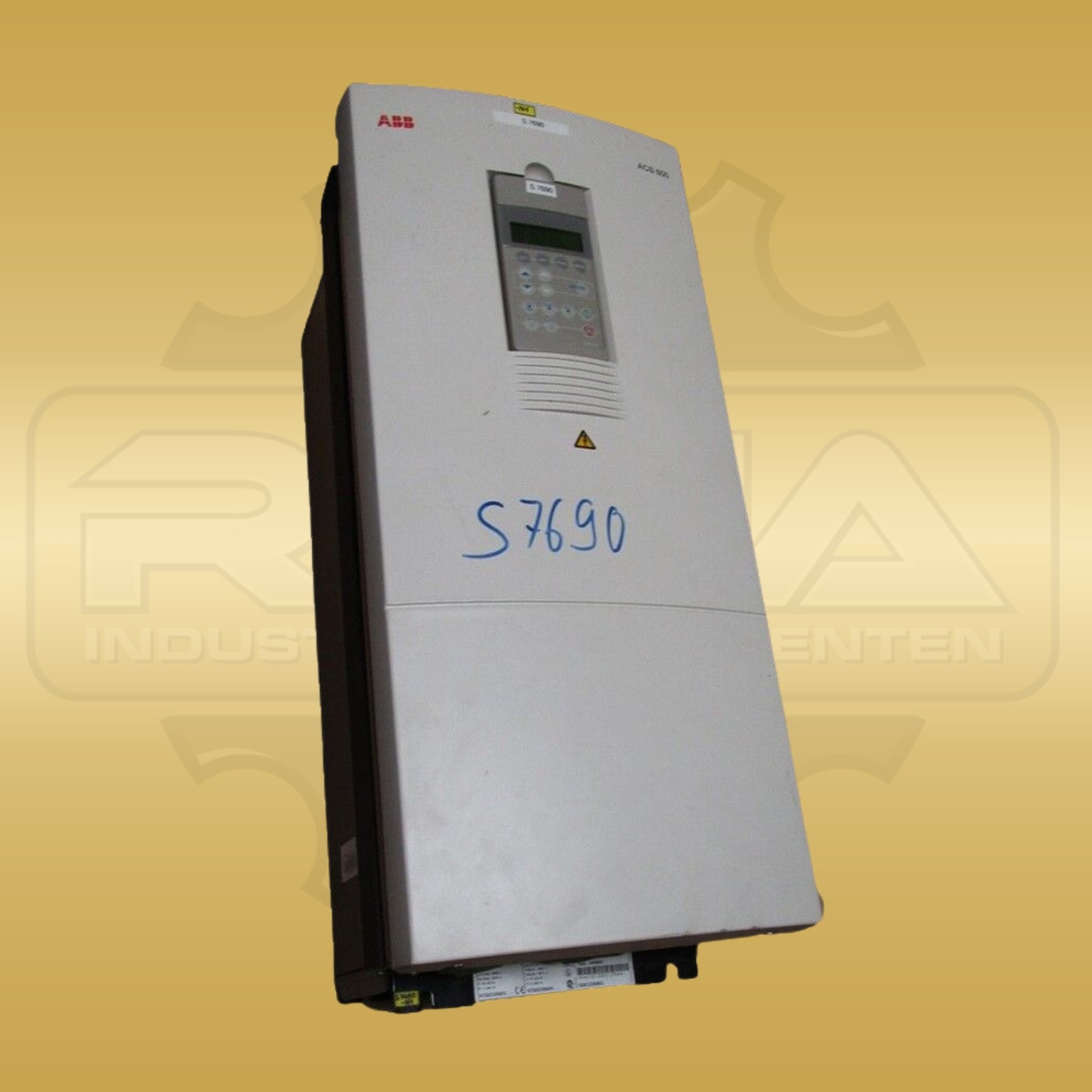

ABB ACS601-0060-5
