Lenze EVF9323-EV
€1,130.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- Available · Ships in approx. 1–2 business days
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

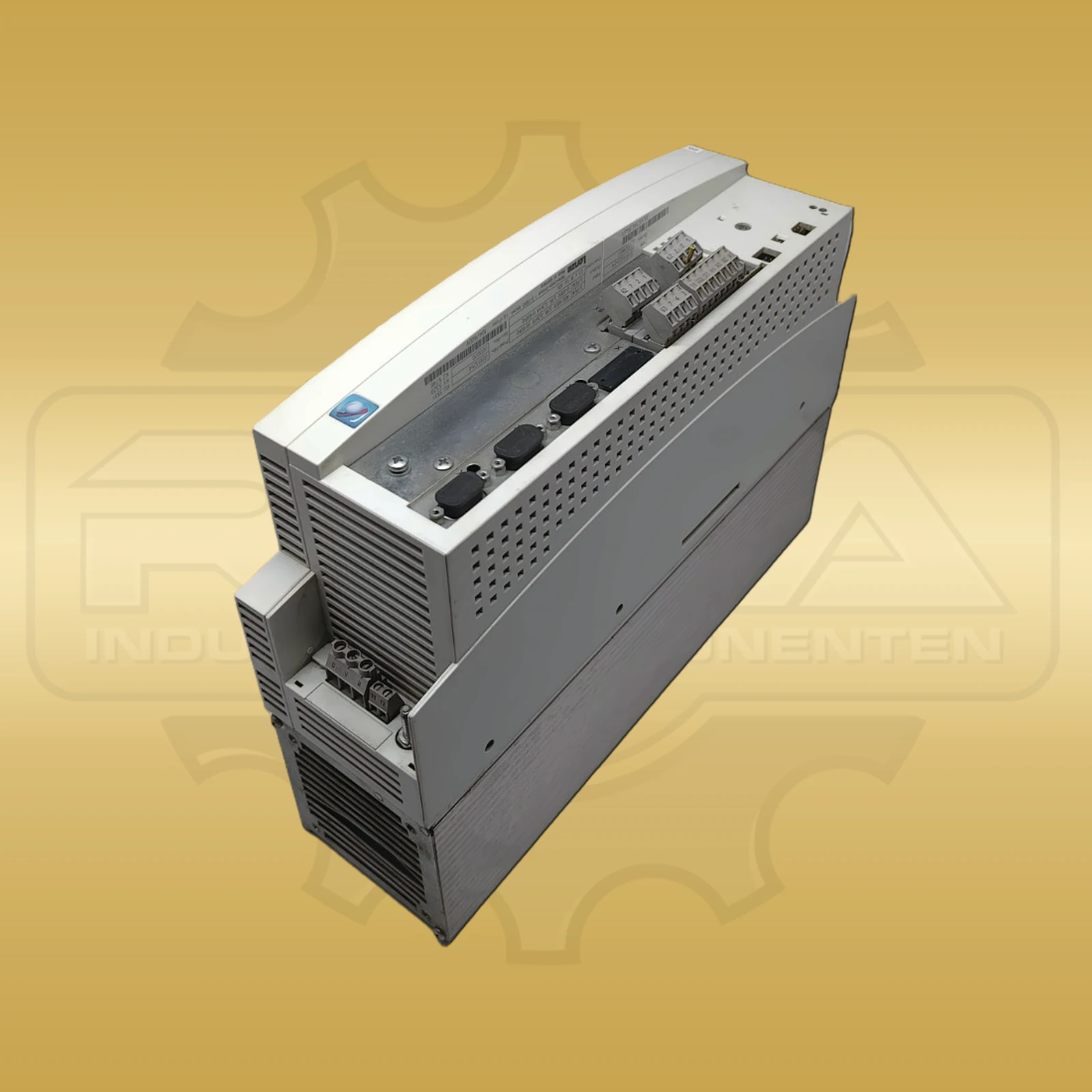

With a width of 97 mm, the Lenze EVF9323-EV is one of the narrow designs of the 9300 vector series. The frequency inverter is listed as a standard version with a rated power of 1.5 kW and an output current of 3.9 A. Its system role is the electrical control of the motor drive; mains connection, inverter and motor side form the essential areas of the drive chain. For the supply, this version has a three-phase connection with protective earth conductor. The permissible mains voltage range extends from 320 to 528 V AC, the frequency range from 45 to 65 Hz. These input variables must be distinguished from the power rating and the output current. In standard mounting, two rails fix the controller at the installation location. The corresponding external dimensions comprise 97 mm width, 384 mm height and 250 mm depth. Above and below the device, a clearance of at least 100 mm is provided in each case. This clearance is part of the mounting arrangement and must be taken into account in addition to the actual device height. For an order with shipping from Germany to the United States and other international destinations, the identifier EVF9323-EV is decisive for the assignment of this standard design. The EV version is also listed in the mounting concept with thermal separation through the mounting surface. The separate mounting kit EJ0037 is provided for this; its arrangement has different installation dimensions from the standard fixing. The corresponding cut-out measures 101 mm in width and 350 mm in height. These cut-out dimensions describe the mounting surface and are not external device dimensions. Cold-plate mounting of the CV version forms a separate design within the same device system. For the EVF9323-EV, the weight specification is 5.8 kg.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product series | 9300 vector |
| Manufacturer/order/ident number | EVF9323-EV |
| Device type | Frequency inverter, standard version |
| Mains voltage | 320–528 V AC |
| Mains connection | 3-phase with protective earth conductor |
| Mains frequency | 45–65 Hz |
| Rated power | 1.5 kW |
| Output current | 3.9 A |
| Standard mounting | Fixing rails |
| Fixing rails | 2 |
| Mounting clearance top/bottom | At least 100 mm each |
| Mounting kit for thermally separated mounting | EJ0037 |
| Mounting cut-out with thermal separation (W × H) | 101 × 350 mm |
| Dimensions | 97 × 384 × 250 mm |
| Weight (reference basis not specified) | 5.8 kg |
Export data
| Commodity code | 85044095 |
|---|
General manufacturer information for the device class, not specific to order number EVF9323-EV, as of 20/10/2026. Not a statement about the individual unit supplied; does not replace an export control review.
