Lenze E84AVSCE5524SB0
€1,250.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

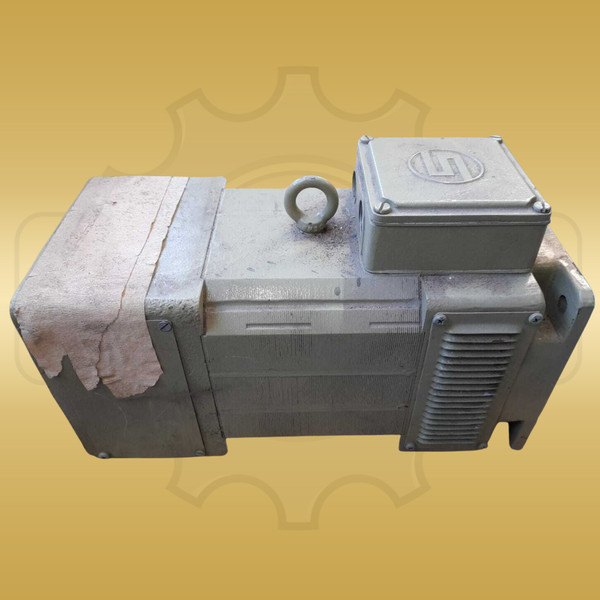

Documented identifiers and values: GFQBT100-24; 100; 5 kW; 1.500; 240 V; B3; IP23S; 06; 55 kg. Mechanical design IM B3 provides horizontal foot mounting on a machine bed or base plate. The documented maximum ambient temperature is 40 °C. The motor has insulation class F and an IP 23S enclosure rating for controlled industrial environments. The IEC 100 square-frame housing combines a compact mechanical arrangement with a stable mounting structure. Lenze GFQBT100-24 is a separately ventilated DC shunt motor from the GFQ series for industrial drive tasks requiring controlled speed and torque. Lenze developed the GFQ range as a modular DC drive system that could be combined with different gearboxes, brakes and feedback arrangements. An integrated holding brake secures the shaft at standstill, while the tachogenerator supplies speed feedback to the connected drive controller. Typical applications include printing, packaging, conveying and general machinery where continuously variable speed control is required.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product series | GFQ series |
| Manufacturer/Order/Identification number | GFQBT100-24 |
| Motor type | DC shunt motor |
| Rated output | 5 kW |
| Rated speed | 1500 min⁻¹ |
| Rated voltage | 240 V DC |
| Number of poles | 4-pole |
| Frame size | IEC 100 |
| Attachments | Holding brake + tachogenerator |
| Housing design | Square housing |
| Protection rating | IP 23S |
| Insulation class | F |
| Mounting design | IM B3 |
| Cooling method | Forced cooling (IC 06) |
| Weight | approx. 55 kg |
