Product description
Schneider Electric MAX-4/11/03/128/08/0/0/00 is an ELAU PacDrive motion controller for machines with up to eight coordinated axes. The complete type sequence matters when selecting a replacement because it encodes the processor, memory configuration, axis count, master encoder evaluation, analogue inputs and optional functions. This variant uses hardware version 11 with RJ-45 Ethernet and a Profive T5 processor based on an Intel Pentium II running at 266 MHz, supported by 32 MB RAM and 256 kB L2 cache. The value 128 identifies 128 MB flash memory, while 08 limits the configuration to a maximum of eight axes. The following two zeros specify a version without master encoder evaluation and without analogue inputs. No additional optional functions are selected by the final value 00. ELAU documents VxWorks as the real-time operating system, IEC-61131-3 languages for PLC and motion-control tasks, and a SERCOS interface as the motion bus. Basic communication includes RS232, RS485 and Ethernet TCP/IP; fieldbus functions depend on the installed option hardware. The corresponding ELAU article number is 13130251-002. Documented planning data also includes approximate dimensions of 240 x 320 x 70 mm and a weight of around 2.26 kg. According to the Vertrieb source record, the offered used stock unit has its cover missing. This visible scope of supply must be considered for mechanical installation and protection against contact. Before replacement, technicians should compare not only the type number and dimensions but also the SERCOS structure, fieldbus options, firmware version, backed-up PacDrive application and the cover required for the installation. No universal interchangeability or functional testing is claimed. The clearly structured type-code and hardware data supports a qualified comparison for repair, retrofit or targeted spare-parts procurement.
Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Product series | PacDrive MAX-4 |
| Manufacturer/order/identification number | MAX-4/11/03/128/08/0/0/00 |
| Device type | PacDrive Motion Controller |
| ELAU article number | 13130251-002 |
| Processor clock | Profive T5, Intel Pentium II, 266 MHz |
| Working memory | 32 MB RAM |
| Cache memory | 256 kB L2 cache according to type code 03 |
| Flash memory | 128 MB |
| Number of axes | up to 8 axes |
| Ethernet interface | RJ-45 Ethernet, TCP/IP |
| Serial interfaces | RS232 and RS485 |
| Motion bus interface | SERCOS, 4 MBaud |
| Programming standard | IEC 61131-3 for PLC and motion control |
| Operating system function | VxWorks real-time operating system |
| Master encoder evaluation | not available, type code 0 |
| Analogue inputs | not available, type code 0 |
| Dimensions | approx. 240 x 320 x 70 mm |
| Weight | approx. 2.26 kg |
Related products
Go to shop
Bosch Rexroth TFM3.1-050-300-W1-220
Price on request
SEW-Eurodrive MXA81A-064-503-00
€1,470.00

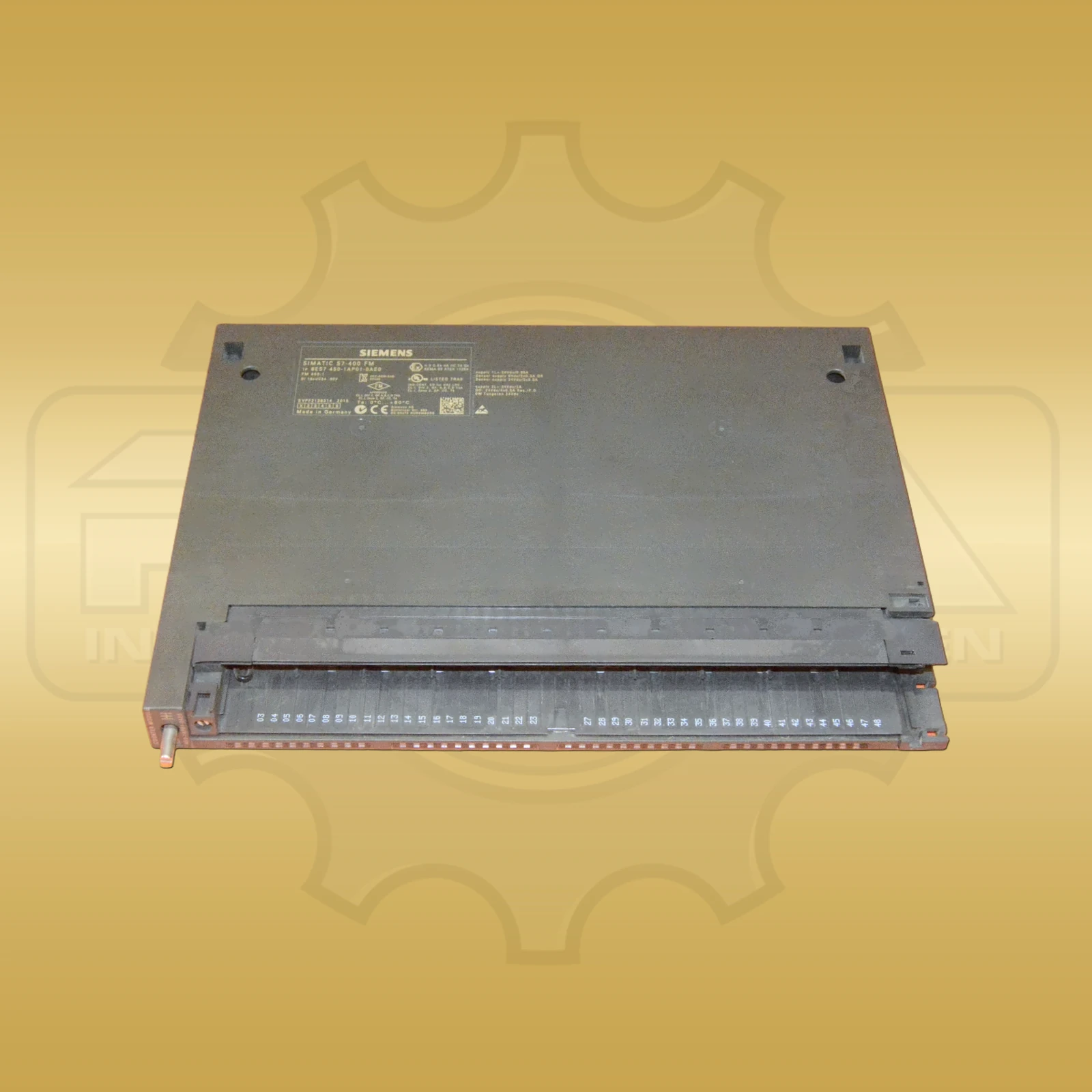

Siemens 6ES7 450-1AP01-0AE0
Price on request
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What does the type code MAX-4/11/03/128/08/0/0/00 mean?
It identifies RJ-45 Ethernet, Profive T5 hardware with a 266-MHz Intel processor, 128 MB flash memory, up to eight axes, no master encoder evaluation and no analogue inputs.
What must be checked when replacing this MAX-4?
In addition to the complete type number, check the option modules, SERCOS topology, firmware, backed-up PacDrive application and the cover missing from this offered unit.
