Product description

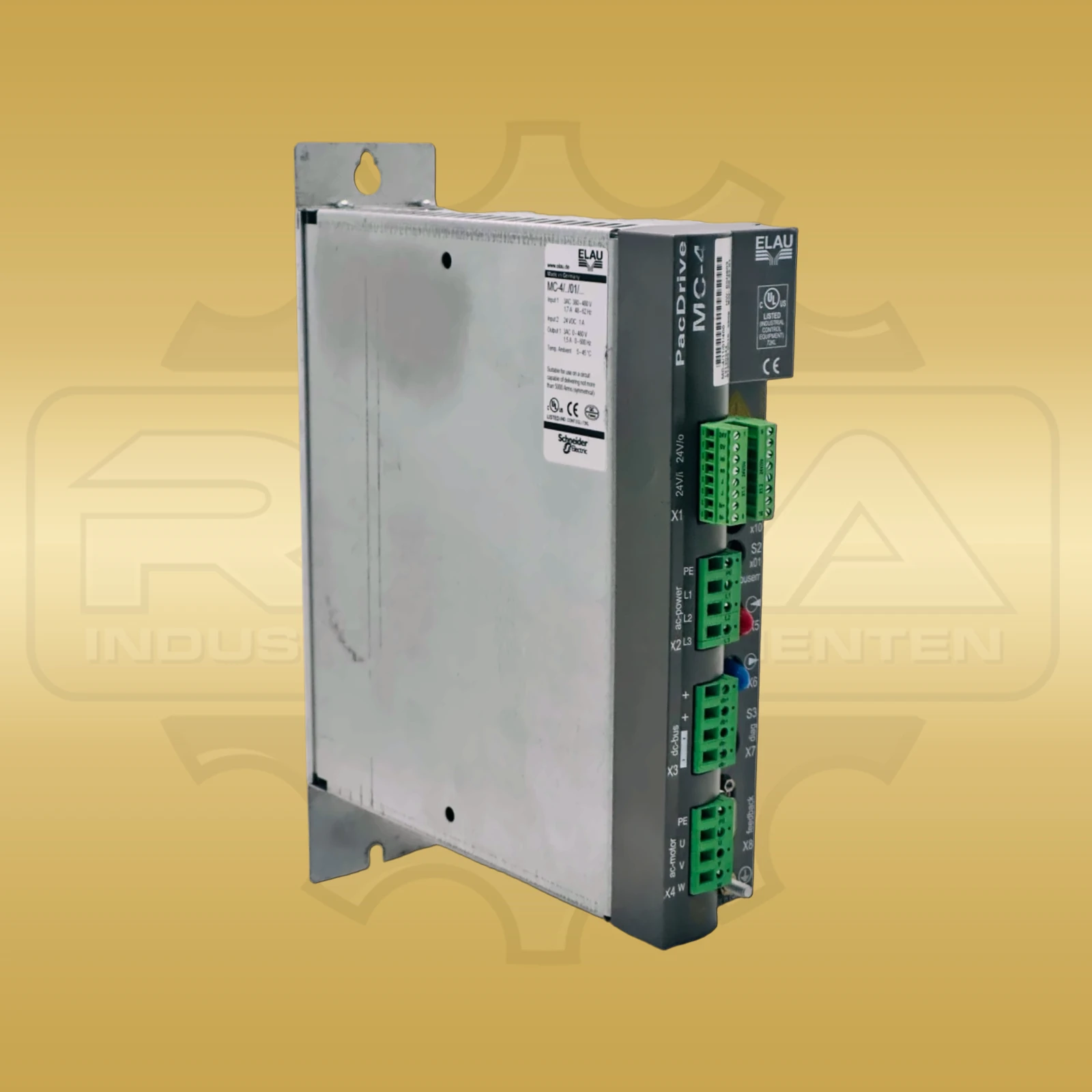

The integrated braking resistor has 120 ohms, withstands 50 watts continuously and up to 5 kW briefly. The device measures 100 × 400 × 320 millimetres, weighs approximately 3.1 kilograms and is cooled by natural convection. The protection rating of the servo amplifier is IP20. The documented value for ELAU order number is 13 13 02 44. Documented identifiers and values: MC-4/11/01/400; MC-4; 380; 480 V; 10; 10; 48; 62 Hz; 24 V; 15; 25; 530; 680 V; 165; 820 V; 800 V; 860 V; 1 A; 8 kHz; 75. The braking branch switches on at 820 V DC and off at 800 V DC; the documented overvoltage threshold is 860 V DC. The control and electronics are supplied with 24 V DC at 1 A; the permissible voltage range extends from −15 to +25 percent. On the motor side, the controller provides a continuous output current of 1.5 Aeff at an 8 kHz switching frequency. The documented value for Mains voltage is 3 AC 380 to 480 V (−10 % / +10 %). The mains frequency range is 48 to 62 Hz. The internal DC bus operates between 530 and 680 V DC and has a capacitance of 165 µF. A peak current of 3.75 Aeff is available for one second. The Schneider Electric MC-4/11/01/400 is a servo amplifier from the former ELAU PacDrive MC-4 family for dynamic single-axis drives in machinery and production systems. During replacement, the complete type number is decisive because mains voltage, current, output and mechanical design differ within the MC-4 range.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Schneider Electric |
|---|---|
| Product range | PacDrive MC-4 |
| Manufacturer/order/identification number | MC-4/11/01/400 |
| Device type | Servo amplifier |
| ELAU order number | 13 13 02 44 |
| Mains voltage | 3 AC 380 to 480 V (−10 % / +10 %) |
| Mains frequency | 48 to 62 Hz |
| Control voltage | 24 V DC (−15 % / +25 %) |
| Control current | 1 A |
| Continuous current | 1.5 Aeff at 8 kHz |
| Peak current | 3.75 Aeff for 1 s |
| Rated output | 1.1 kVA |
| DC-bus voltage | 530 to 680 V DC |
| DC-bus capacitance | 165 µF |
| Braking branch switch-on voltage | 820 V DC |
| Braking branch switch-off voltage | 800 V DC |
| Overvoltage threshold | 860 V DC |
| Braking resistor | 120 ohms; 50 W continuous; 5 kW peak |
| Dimensions | 100 × 400 × 320 mm |
| Weight | approx. 3.1 kg |
Related products
Go to shop
Siemens 6ES7 414-3EM07-0AB0
Price on request
Siemens 6ES7417-4XL04-0AB0
€660.00
Schneider Electric MC-4/11/22/400
€2,180.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What performance data does the Schneider Electric MC-4/11/01/400 provide?
The servo amplifier delivers 1.5 Aeff continuous current at 8 kHz and 3.75 Aeff peak current for 1 s. The rated output is 1.1 kVA.
What mains voltage is the MC-4/11/01/400 designed for?
The order variant operates on three-phase mains from 380 to 480 V AC with a tolerance from −10 to +10 percent. The control electronics require 24 V DC.
