Siemens 6ES7414-3XM05-0AB0
€1,460.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

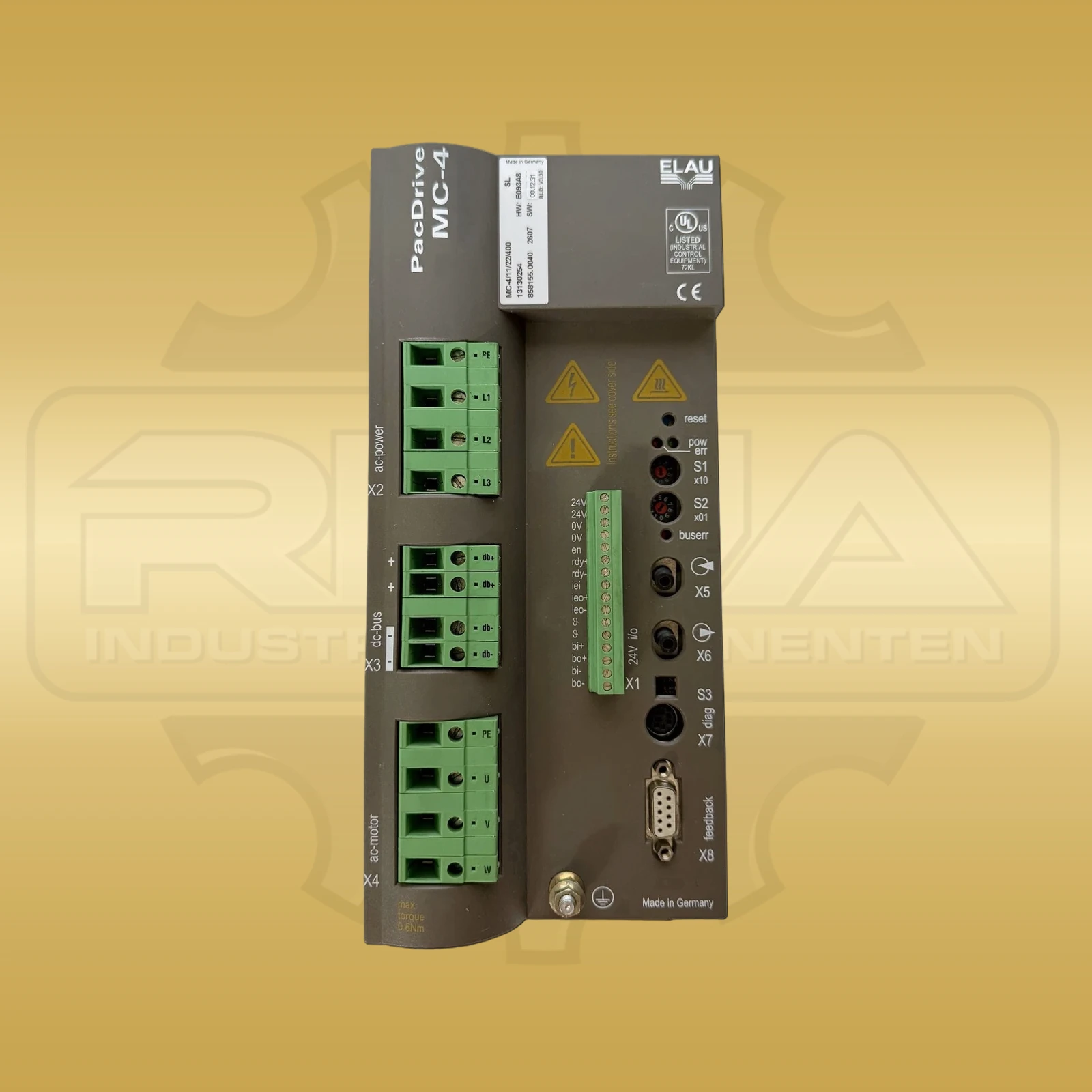

An integrated braking resistor with 42 ohms can absorb 150 watts continuously and up to 15 kW briefly. The enclosure measures 124 × 310 × 260 millimetres and weighs approximately 6.3 kilograms. The documented value for ELAU order number is 13 13 02 54. Documented identifiers and values: MC-4/11/22/400; MC-4; 380; 480 V; 10; 48; 62 Hz; 24 V; 15; 25; 530; 680 V; 705; 820 V; 800 V; 860 V; 1 A; 22; 8 kHz; 55; 15. The braking branch switches on at 820 V DC and off at 800 V DC; the documented overvoltage threshold is 860 V DC. The control and electronics require 24 V DC at 1 A; the permissible range is between −15 and +25 percent. On the motor side, the controller provides a continuous output current of 22 Aeff at an 8 kHz switching frequency. The documented value for Mains voltage is 3 AC 380 to 480 V (±10 %). The mains frequency range is 48 to 62 Hz. The internal DC bus operates between 530 and 680 V DC and has a capacitance of 705 µF. A peak current of 55 Aeff is available for one second. The Schneider Electric MC-4/11/22/400 is a servo amplifier from the former ELAU PacDrive MC-4 family for dynamic single-axis drives in machinery and production systems. The complete type number is important when matching the device because current class, mains voltage and output differ within the MC-4 range. The rated output is 15.2 kVA.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Schneider Electric |
|---|---|
| Product range | PacDrive MC-4 |
| Manufacturer/order/identification number | MC-4/11/22/400 |
| Device type | Servo amplifier |
| ELAU order number | 13 13 02 54 |
| Mains voltage | 3 AC 380 to 480 V (±10 %) |
| Mains frequency | 48 to 62 Hz |
| Control voltage | 24 V DC (−15 % / +25 %) |
| Control current | 1 A |
| Continuous current | 22 Aeff at 8 kHz |
| Peak current | 55 Aeff for 1 s |
| Rated output | 15.2 kVA |
| DC-bus voltage | 530 to 680 V DC |
| DC-bus capacitance | 705 µF |
| Braking branch switch-on voltage | 820 V DC |
| Braking branch switch-off voltage | 800 V DC |
| Overvoltage threshold | 860 V DC |
| Braking resistor | 42 ohms; 150 W continuous; 15 kW peak |
| Dimensions | 124 × 310 × 260 mm |
| Weight | approx. 6.3 kg |
