Siemens 1FT5044-0AH01-1
€720.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
As a compact frame in the 1FT5 series, Siemens 1FT5042-0AK01-1 combines a 210 V DC link with 1.0 Nm torque at 100 K and 6000 U/min. The unit is an AC servo motor for feed axes. Frame size 48 and length 2 form the mechanical base configuration. Cooling is natural. Construction is IM B5, supplemented by mounting positions IM V1 and IM V3. The power connection includes a bracket for the signal connector. This arrangement, high rated speed and compact flange version characterise the bound order number. The shortened version identifier does not unambiguously distinguish a possible holding brake. Weight therefore uses the higher mechanical catalogue value as a conservative estimate. Installation length of the 1FT5042 is 165 mm and the shaft extends by 30 mm, giving an overall external length of 195 mm. Flange cross-section measures 92 mm; including the connector structure, total height reaches 123.5 mm. Complete outside dimensions are therefore 195 × 92 × 123.5 mm without connected cables. Shaft height is 48 mm, centering diameter 80 mm and shaft diameter 14 mm. Catalogue weights are 3.2 kg without and 3.5 kg with a holding brake. Approx. 3.5 kg is stated conservatively.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer / order / identification number | 1FT5042-0AK01-1 |
| Device type | AC servo motor |
| Motor function | Feed drive motor |
| DC-link voltage | 210 V DC |
| Torque | 1.0 Nm at 100 K |
| Rated speed | 6000 U/min |
| Frame size | 48 |
| Construction length | 2 |
| Cooling | Natural cooling |
| Mounting arrangement | IM B5, also IM V1 and IM V3 |
| Version | Standard Type |
| Connection type | Power connection with holder for signal connection |
| Shaft height | 48 mm |
| Centering diameter | 80 mm |
| Shaft diameter | 14 mm |
| Dimensions | 195 × 92 × 123.5 mm (L × W × H; motor envelope including 30-mm shaft extension and connector structure, without cables) |
| Weight | approx. 3.5 kg (conservative; catalogue values 3.2 kg without / 3.5 kg with holding brake) |
Related products
Go to shop

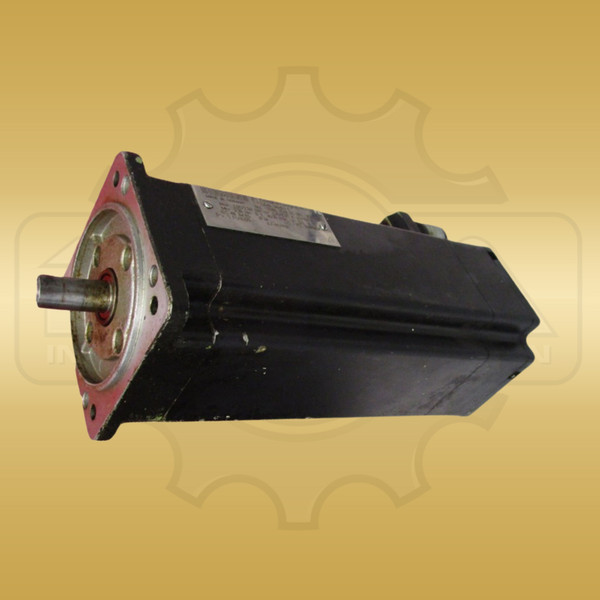

Siemens 1FT5046-0AH01-1
