Siemens 1FK2204-5AF10-0SA0
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

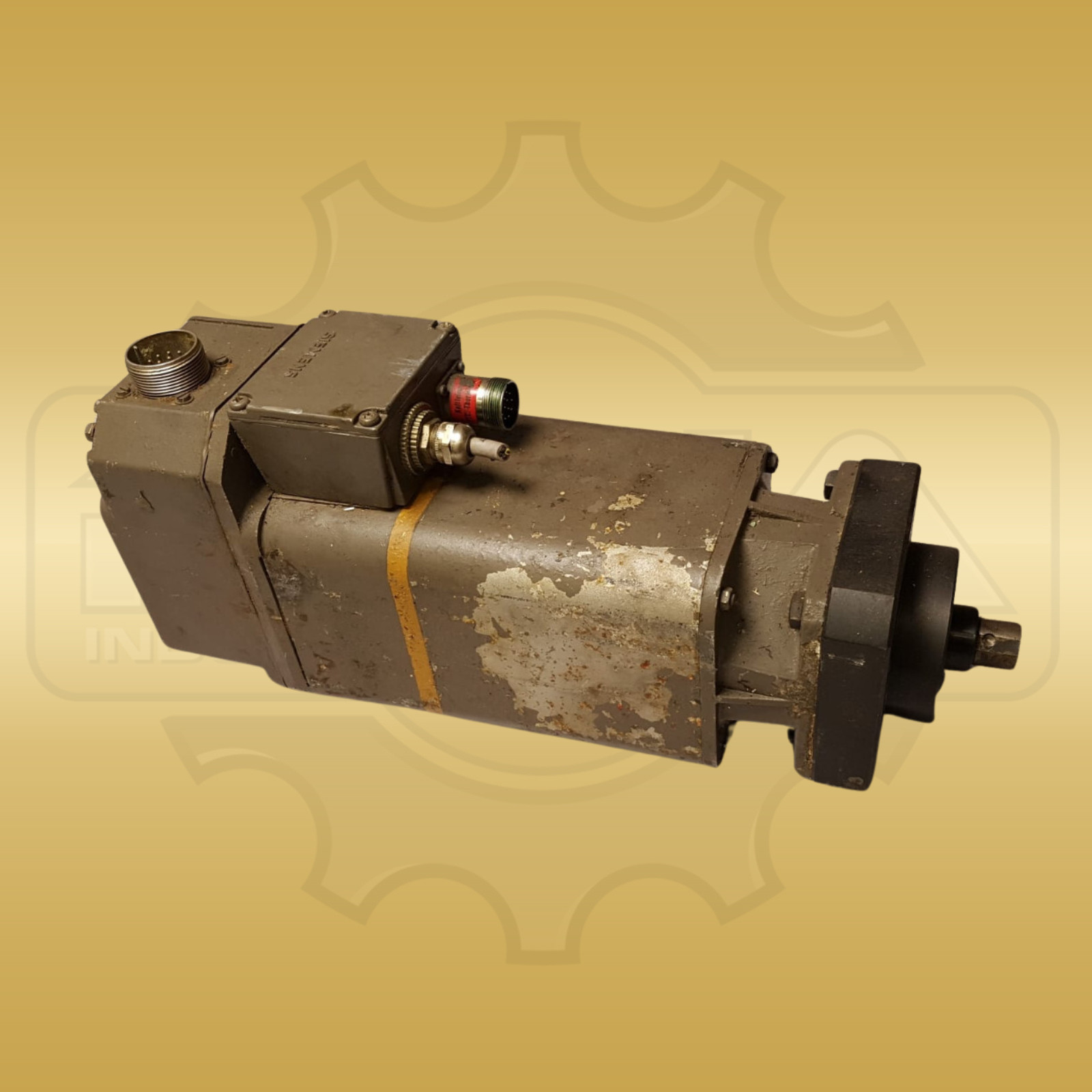

Terminal box and signal connector define the connection design of the Siemens 1FT5062-0AC01-2-Z. The AC feed motor from the 1FT5 series has a separate connection for the electrical motor supply and the feedback signals. Within the feed drive, it is the electromechanical component; feedback is provided via tachogenerator and rotor position encoder. Two different measuring tasks are therefore represented on the motor: detection of the speed and detection of the rotor position. These two encoder types belong to the described version and are not combined into an alternative single encoder system. The electrical reference of the motor is a DC link with 210 V direct voltage. This value refers to the DC link level of the drive and is to be distinguished from a line supply voltage. The mechanical operating data are 2000 revolutions per minute and 2.6 Nm at a temperature rise of 100 K. The temperature reference belongs to the torque value and therefore remains part of its technical classification. For an order with shipping from Germany to the United States and other international destinations, this connection and feedback version is listed under the complete identifier 1FT5062-0AC01-2-Z. Cooling is by self-cooling. The mechanical design includes the IM B5 type of construction and the likewise stated arrangements IM V1 and IM V3. These designations describe the mounting arrangement of the motor; the electrical connection is characterized separately via terminal box and signal connector. The motor housing is specified with protection class IP64. The installation dimensions are 100 mm width, 150 mm height and 280 mm length or depth. The encoder equipment, the self-cooling and the terminal box together form the technical features of this feed motor version.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer/order/ident number | 1FT5062-0AC01-2-Z |
| Device type | AC feed motor |
| DC link voltage | 210 V DC |
| Torque at 100 K | 2.6 Nm |
| Speed | 2000 min⁻¹ |
| Cooling method | Self-cooling |
| Speed feedback | Tachogenerator |
| Position feedback | Rotor position encoder |
| Protection class | IP64 |
| Type of construction | IM B5 (IM V1, IM V3) |
| Power connection | Terminal box |
| Signal connection | Signal connector |
| Dimensions | 100 × 150 × 280 mm |
| Weight | approx. 8 kg |
