Siemens 1FT5102-0AC71-2-Z
€2,070.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- In stock · Ships in approx. 1–2 business days · Express shipping on request
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

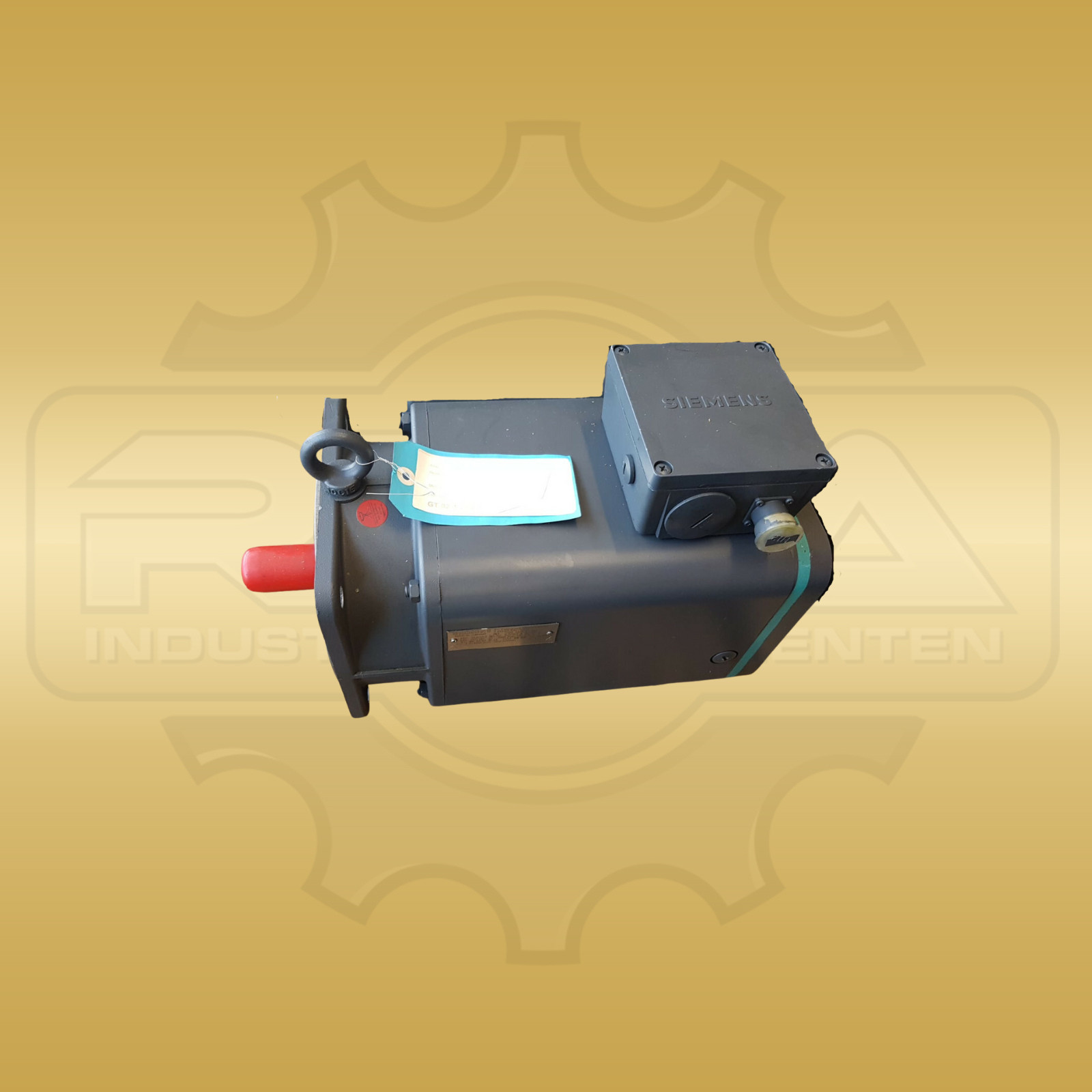

With 2000 revolutions per minute and 33 Nm torque at 100 K, the Siemens 1FT5102-0AC71-2-Z belongs to the AC feed motors of the 1FT5 series. Its task in the drive system is the motor-driven implementation of the movement specified by the drive controller. The version combines a DC link voltage of 600 V DC with air cooling and feedback via tachogenerator and rotor position encoder. The DC link voltage designates the electrical supply level of the associated drive system; it is not a specification for a direct connection of the motor to an AC mains supply. The two feedback elements perform different tasks: the tachogenerator provides the speed information, while the rotor position encoder detects the position of the rotor. Besides the actual motor, the speed and position information are therefore also part of the technical version of this feed drive. For the electrical integration, the power and signal connections are designed separately. The motor power is connected via a terminal box, the feedback via a signal connector. This connection version in particular is an essential feature of the complete order number, which is also retained for the specific order with shipping from Germany to the United States and other international destinations. Mechanically, the motor has the flange design IM B5; IM V1 and IM V3 are specified as further designs. These designations describe the mechanical arrangement and complement the electrical rating data when classifying the motor. The housing has the degree of protection IP64. The air cooling and the torque reference designated with 100 K together belong to the thermal specifications of the version. For spatial classification, the dimensions are 200 mm in width, 280 mm in height and 440 mm in depth.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer / order / ident number | 1FT5102-0AC71-2-Z |
| Device type | AC feed servo motor |
| DC link voltage | 600 V DC |
| Torque at 100 K | 33 Nm |
| Rated speed | 2000 min⁻¹ |
| Cooling method | Air cooling |
| Speed feedback | Tachogenerator |
| Position feedback | Rotor position encoder |
| Degree of protection | IP64 |
| Design | IM B5 (IM V1, IM V3) |
| Power connection | Terminal box |
| Signal connection | Signal connector |
| Dimensions | 200 × 280 × 440 mm (W × H × D) |
| Weight | approx. 32 kg |
