Siemens 1FT5132-0AF71-1-Z
€3,530.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- In stock · Ships in approx. 1–2 business days · Express shipping on request
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

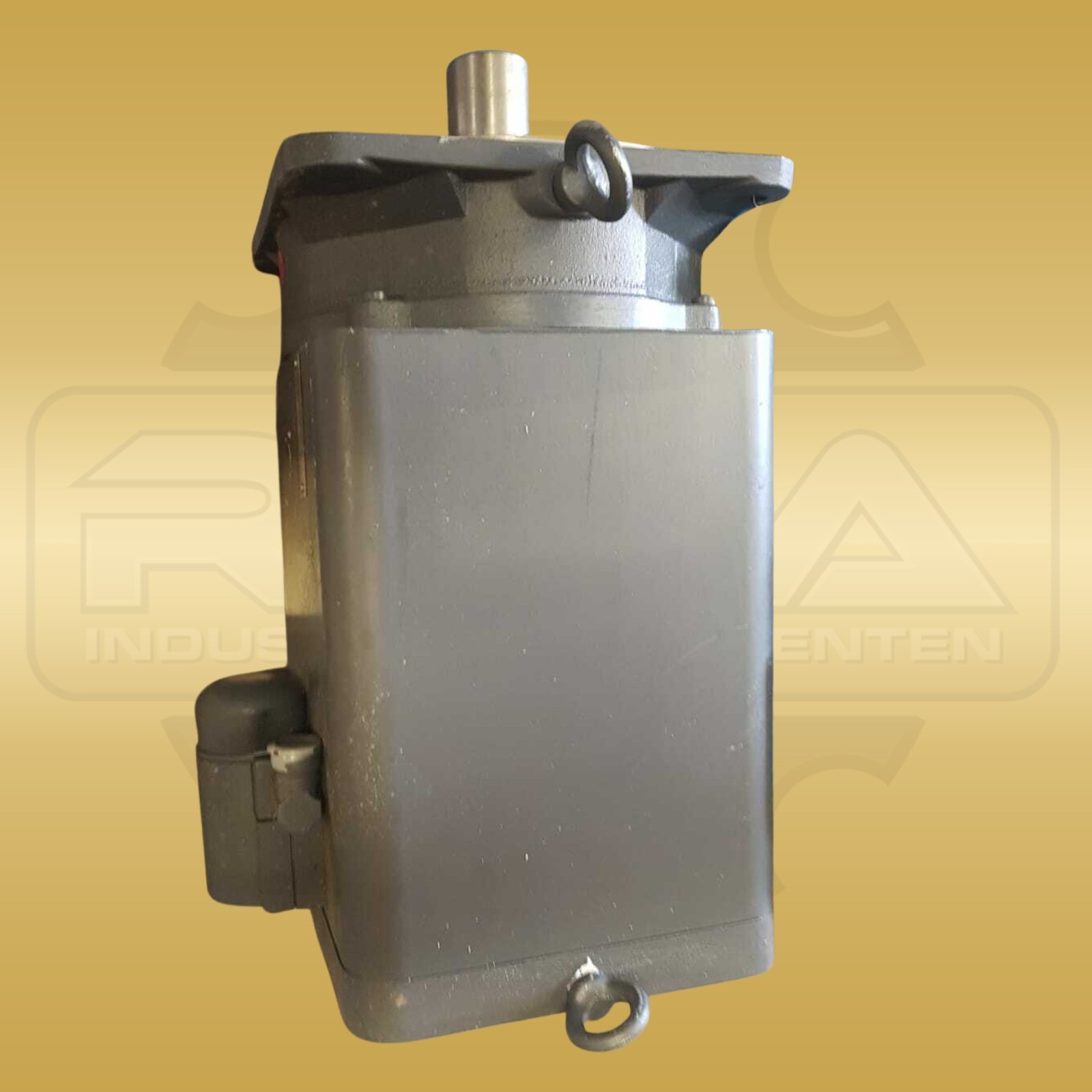

Continuous duty S1, a PTC temperature sensor and thermal class F characterize the thermal design of the Siemens 1FT5132-0AF71-1-Z. The three-phase servo motor belongs to the 1FT5 series and forms the motor component of a controlled drive. It converts the electrical control into a rotary movement at the motor shaft. Its rating data combine 467 V in star connection with a rated torque of 12 Nm and a rated speed of 3000 revolutions per minute. The specified maximum speed of 3200 revolutions per minute must be distinguished from this rated speed. Both values describe different speed limits and do not replace each other in the technical classification. The voltage specification also explicitly belongs to the star connection; it must be considered together with the connection type. The motor is of non-ventilated design. Its operating mode S1 designates continuous duty, while thermal class F describes the thermal insulation system. The PTC serves as a temperature-dependent sensor element in the motor. For the mechanical connection, this version has the B5 design with flange. In the specific order with shipping from Germany to the United States and other international destinations, the Siemens 1FT5132-0AF71-1-Z is listed with this electrical and mechanical version. The enclosure rating of the housing is IP64. The flange defines the mechanical fastening; the electrical rating and the thermal design remain separate characteristics. For planning the installation space, the estimated external dimensions are approximately 300 mm width, 400 mm height and 650 mm depth. These dimensions are approximate values and not a precise connection drawing. The weight is specified as 71 kg, without distinguishing between net and gross weight.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | 1FT5 |
| Manufacturer / order / ident number | 1FT5132-0AF71-1-Z |
| Device type | Three-phase servo motor |
| Rated voltage | 467 V, star connection |
| Rated torque | 12 Nm |
| Rated speed | 3000 min⁻¹ |
| Maximum speed | 3200 min⁻¹ |
| Cooling type | Non-ventilated |
| Design | B5 |
| Operating mode | S1 (continuous duty) |
| Enclosure rating | IP64 |
| Temperature sensor | PTC |
| Thermal class | F |
| Dimensions | approx. 300 × 400 × 650 mm |
| Weight (reference type not specified) | 71 kg |
