Siemens 6AU1432-2AA00-0AA0
€100.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
The Siemens 6AU1435-2AD00-0AA0 is a SIMOTION D435-2 DP/PN drive-based control unit with documented motion-control and automation functions. Siemens assigns the unit to the STANDARD performance class for multi-axis systems and specifies up to 32 axes. The integrated drive control is based on SINAMICS S120 CU320-2 with firmware V4.x. Depending on the control mode, up to six servo axes, six vector axes, or twelve V/f axes are documented. The documented servo, interpolator, and PROFINET cycle times reach 0.25 ms; the minimum PROFIBUS cycle is 1 ms. The unit provides six DRIVE-CLiQ interfaces, two PROFIBUS interfaces, one PROFINET interface with three integrated ports, two Industrial Ethernet connections, and two USB ports. It also has twelve digital inputs and 16 configurable digital inputs/outputs. Depending on the configuration, the latter can be used as inputs, outputs, measuring inputs, or cam outputs. The memory configuration comprises 86 MB working memory, 20 MB additional Java working memory, a 41 MB RAM disk, 364 kB retentive memory, and 300 MB persistent user memory on the CF card. The supply is 24 V DC within a range of 20.4 to 28.8 V. Siemens specifies a typical current consumption of 1 A without loaded inputs/outputs and a typical power loss of 24 W. The unit has IP20 protection and is specified for an operating ambient temperature of 0 to 55 °C. The enclosure is 380 mm high, 50 mm wide, and 270 mm deep; without the spacer, the documented depth is 230 mm. Net weight is 3.7 kg. The complete order number, the DP/PN communication version, and the D435-2 hardware are the defining identifiers of the documented unit.

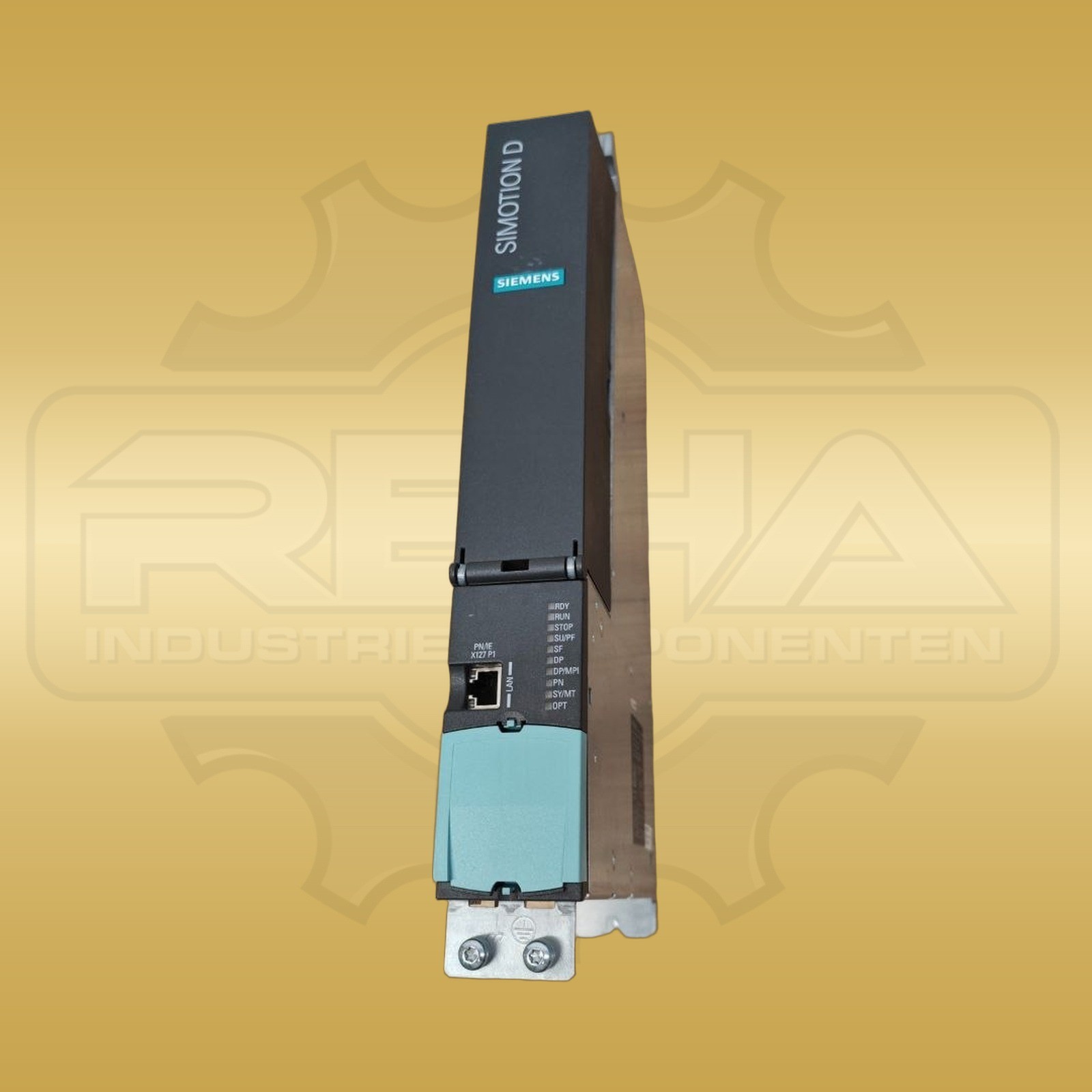

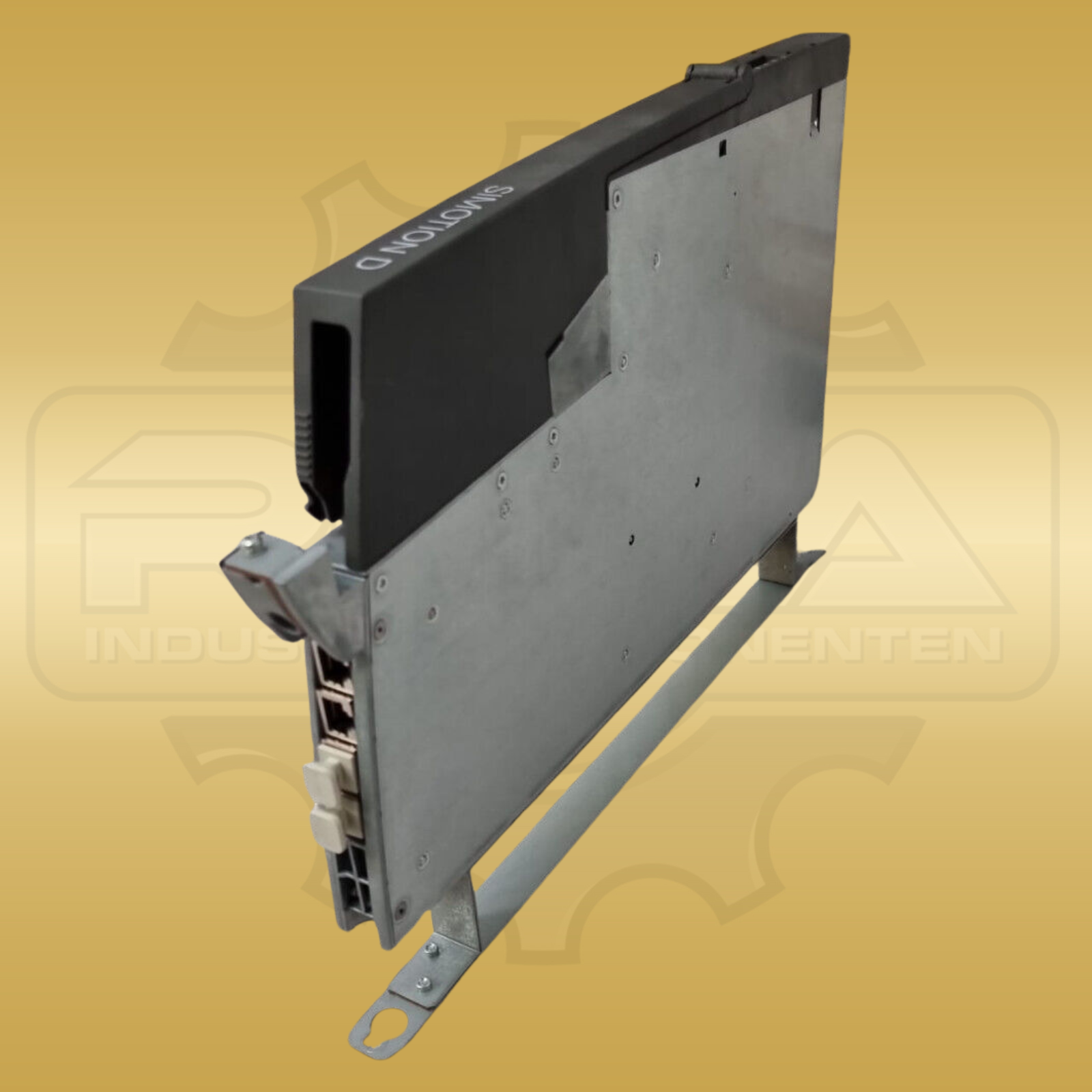

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIMOTION D435-2 DP/PN |
| Manufacturer / order / identification number | 6AU1435-2AD00-0AA0 |
| Device class | Drive-based control unit / programmable motion controller |
| Performance class | STANDARD Performance |
| Maximum number of axes | 32 axes |
| Integrated drive control | 6 servo, 6 vector, or 12 V/f axes |
| Minimum cycle times | PROFINET, interpolator, and servo 0.25 ms; PROFIBUS 1 ms |
| Working memory | 86 MB RAM plus 20 MB Java working memory |
| Persistent memory | 300 MB user memory on CF card |
| DRIVE-CLiQ | 6 interfaces |
| PROFIBUS | 2 interfaces, configurable as master or slave |
| PROFINET | 1 interface with 3 integrated ports |
| Additional interfaces | 2 Industrial Ethernet and 2 USB |
| Digital inputs | 12 inputs, 24 V DC |
| Digital inputs/outputs | 16 configurable DI/DO |
| Supply voltage | 24 V DC, permissible 20.4–28.8 V |
| Degree of protection | IP20 |
| Dimensions | 380 × 50 × 270 mm (H × W × D) |
| Weight | 3.7 kg |
Related products
Go to shop
Siemens 6AU1435-2AA00-0AA0
€1,670.00
Siemens 6SN1123-1AA00-0BA2
€830.00
Siemens 6ES7414-3XM05-0AB0
€1,460.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which communication interfaces does the Siemens 6AU1435-2AD00-0AA0 provide?
The documented connections include six DRIVE-CLiQ interfaces, two PROFIBUS interfaces, one PROFINET interface with three ports, two Industrial Ethernet connections, and two USB ports.
What are the dimensions and weight of the SIMOTION D435-2 DP/PN?
The unit measures 380 × 50 × 270 mm in height, width, and depth. Without the spacer, the depth is 230 mm. Net weight is 3.7 kg.
What applies if an item develops a defect within 14 days?
For the condition categories “Used, removed from an installation” and “New, old stock”, the contractual 14-day right of return in the event of a defect applies. The defect must occur within 14 calendar days after delivery and be reported in text form within the same period.
In particular, the REHA tamper-evident seal must remain fully intact and our RMA approval is required before return. In an accepted case, we decide between replacement and refund. Details in Section 11 of the Terms.
Which shipping methods and delivery times are available?
The shipping method, shipping cost and estimated delivery time are confirmed for the specific order. Depending on the item, destination and urgency, we can check parcel, express or freight shipping as well as collection.
A delivery date is binding only if we expressly confirm it as binding.
Which payment terms apply?
The payment terms stated in the checkout or order confirmation apply. Depending on the order and customer, payment is made in advance or against invoice.
International deliveries and deliveries to new customers are generally made against advance payment unless we expressly confirm another payment arrangement.
Can I return an item ordered incorrectly or found incompatible?
No. There is no general B2B right of return, exchange, cancellation or withdrawal. Incorrect or duplicate orders and a lack of suitability or compatibility with the customer’s installation are not covered by the contractual 14-day right of return in the event of a defect. Details in Section 12 of the Terms.
Can I request individual pricing for several items?
You may request an individual quotation for several items or larger quantities. We then check availability and pricing for the specific requirement; there is no entitlement to a quantity discount. Open the quick enquiry.
Do you also purchase industrial spare parts?
Yes. You can offer us automation and drive components for purchase. Please provide complete type numbers, quantities, condition details and photographs where possible.
After review, we will tell you whether a purchase is possible and on which terms. Learn more about selling industrial stock.
