Siemens 6EP1534-1SL01
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
On the input side, the Siemens 6EP1332-1SH43 from the LOGO!Power range covers a rated range of 100 to 240 V AC; alternatively, a DC input from 110 to 300 V DC is specified. The single-phase version operates at 50 to 60 Hz. On the output side, it provides 24 V DC and 2.5 A. The output is electrically isolated, short-circuit-proof and no-load-proof. Input type, output voltage and rated current therefore remain separate reference characteristics of the complete order number. The compact design belongs to the LOGO!Power product range. Its enclosure is 72 mm wide, 90 mm high and 52.6 mm deep; net weight is 0.25 kg. For the specific order, dispatch from Germany can be arranged for the United States and other international destinations with these mechanical data taken into account. The enclosure can be mounted side by side; mounting is on a DIN rail according to EN 60715 with 35 × 7.5 or 35 × 15 mm dimensions. Mains and output conductors are connected through screw terminals. At the input, L and N each use one terminal; at the output, two terminals are provided for both positive and negative. The specified conductor cross-section ranges from 0.5 to 2.5 mm² for solid or finely stranded conductors. IP20 protection and protection class II without a protective conductor define the electrical design. With natural convection, the specified operating temperature range is −20 to +70 °C. The transport and storage ranges are both −40 to +85 °C. Climate class 3K3 requires operation without condensation. The complete identifier, input and output data, connection method, mounting dimensions and weight together define the variant profile of the 6EP1332-1SH43.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product range | LOGO!Power |
| Manufacturer/order/identification number | 6EP1332-1SH43 |
| Device type | Regulated primary-switched power supply |
| Input | 100–240 V AC or 110–300 V DC |
| Mains type | Single-phase AC mains |
| Mains frequency | 50–60 Hz |
| Output voltage | 24 V DC |
| Output current | 2.5 A |
| Output | Electrically isolated, short-circuit-proof and no-load-proof |
| Protection rating | IP20 |
| Protection class | II, without protective conductor |
| Connection method | Screw terminals |
| Mounting | DIN rail EN 60715, 35 × 7.5/15 mm |
| Operating temperature | −20 to +70 °C with natural convection |
| Dimensions | 72 × 90 × 52.6 mm (W × H × D) |
| Weight | 0.25 kg net weight |
Related products
Go to shop
Siemens 1HU3071-0AC01-Z
€890.00

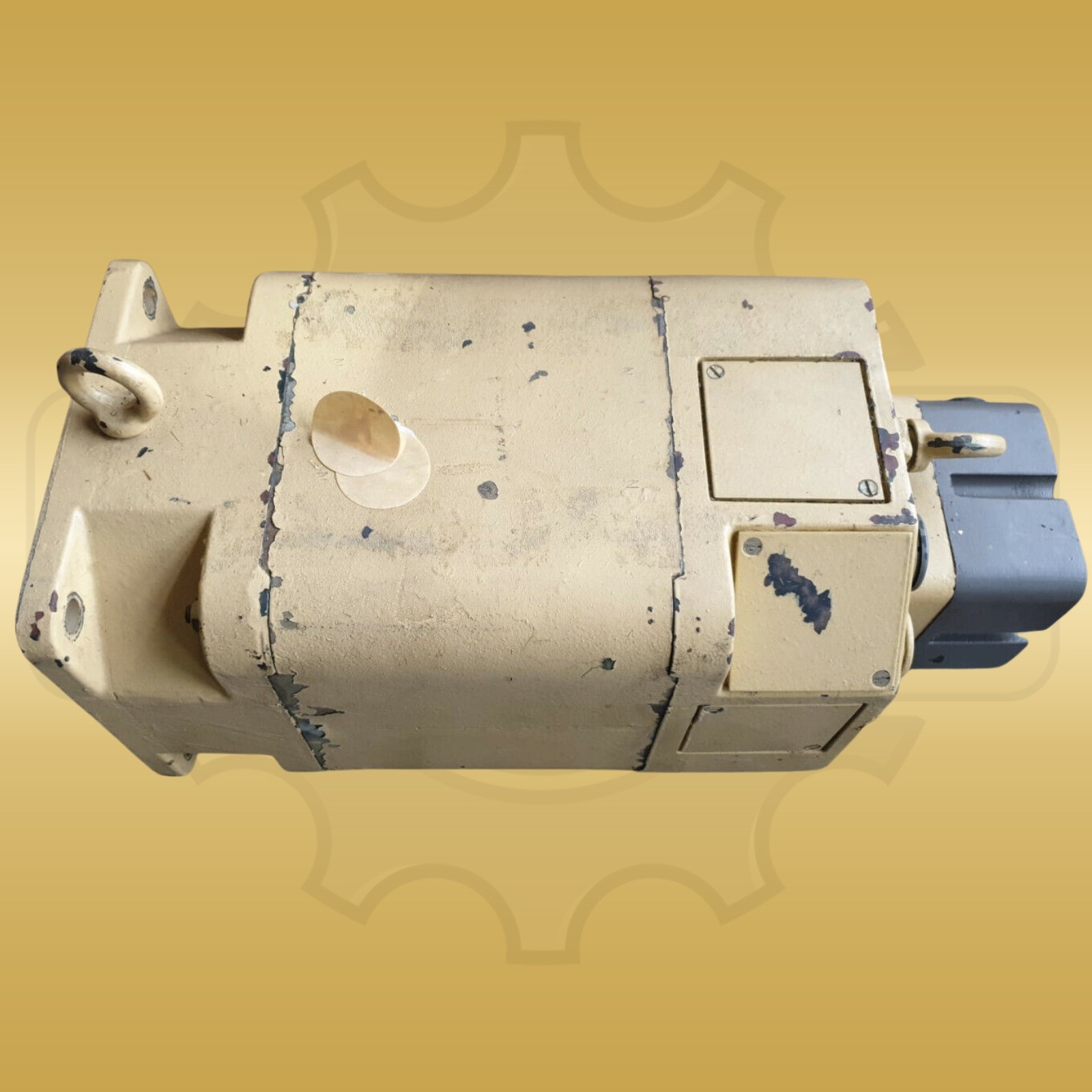

Siemens 1HU3132-0AC01-0ZZ9-Z
