Siemens 6EW1810-3AA
€870.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
From a 24 V DC input, the Siemens 6DD1683-0BC0 supplies the modules of a SIMADYN D subrack. The SP8 power supply unit provides 5 V DC at 52 A on its main output. A positive +15 V DC auxiliary output and a negative -15 V DC auxiliary output are also provided. This clearly separates the main and auxiliary voltages as independent electrical values. The complete identification number 6DD1683-0BC0 denotes this exact variant within the SIMADYN D product range. Its variant profile covers the input voltage, main output current and both auxiliary voltages as separate technical values. Their respective polarity is part of the technical configuration and remains associated with the voltage level. An integrated fan cools the unit. Mechanically, the device is designed as open equipment. The documented installation environments are a control cabinet, an electrical equipment room or an enclosed electrical operating area. Assignment to a SIMADYN D subrack describes the system application without implying plant-specific interchangeability. For the specific order, shipping from Germany to the United States and other international destinations is considered together with the documented device dimensions of 492 × 126 × 330 mm. The net weight is 8.8 kg. For technical identification, the complete order number, SP8 version and output profile therefore form the core of the comparison. The 5-V main supply is distinct from the two 15-V auxiliary outputs, while the 24-V-DC value denotes the input side. Dimensions and net weight complement these electrical data for mechanical planning. The integrated fan and open design also belong to the documented device configuration.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product range | SIMADYN D |
| Manufacturer/order/identification number | 6DD1683-0BC0 |
| Device type | Power supply unit |
| Input voltage | 24 V DC |
| Main output voltage | 5 V DC |
| Main output current | 52 A |
| Positive auxiliary output | +15 V DC |
| Negative auxiliary output | -15 V DC |
| Cooling | Integrated fan |
| Equipment type | Open equipment |
| Installation environment | Control cabinet, electrical equipment room or enclosed electrical operating area |
| System application | SIMADYN D subrack |
| Dimensions | 492 × 126 × 330 mm |
| Weight | 8.8 kg net |
Related products
Go to shop

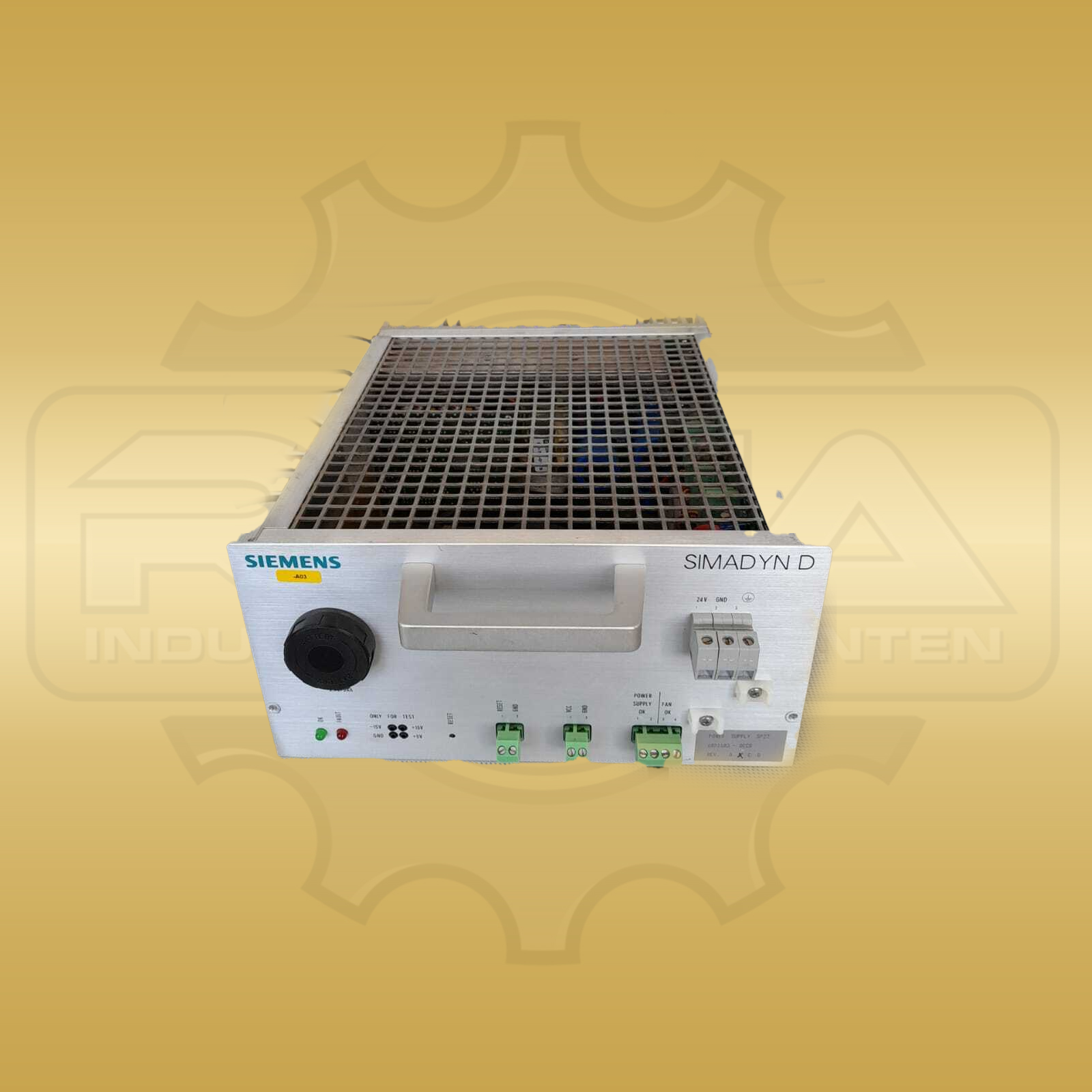

Siemens 6DD1683-0CC0
€5,460.00

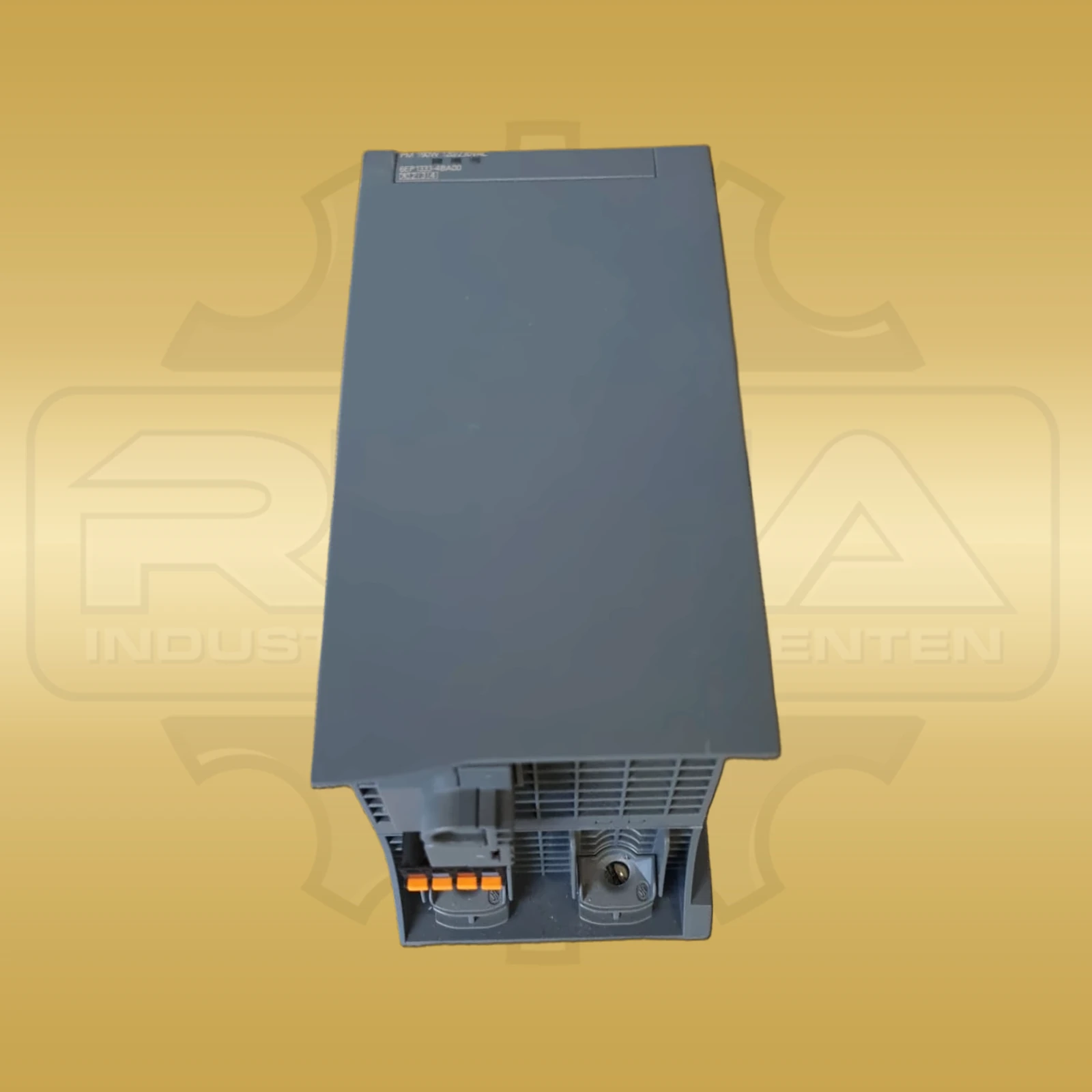

Siemens 6EP1333-4BA00
€110.00

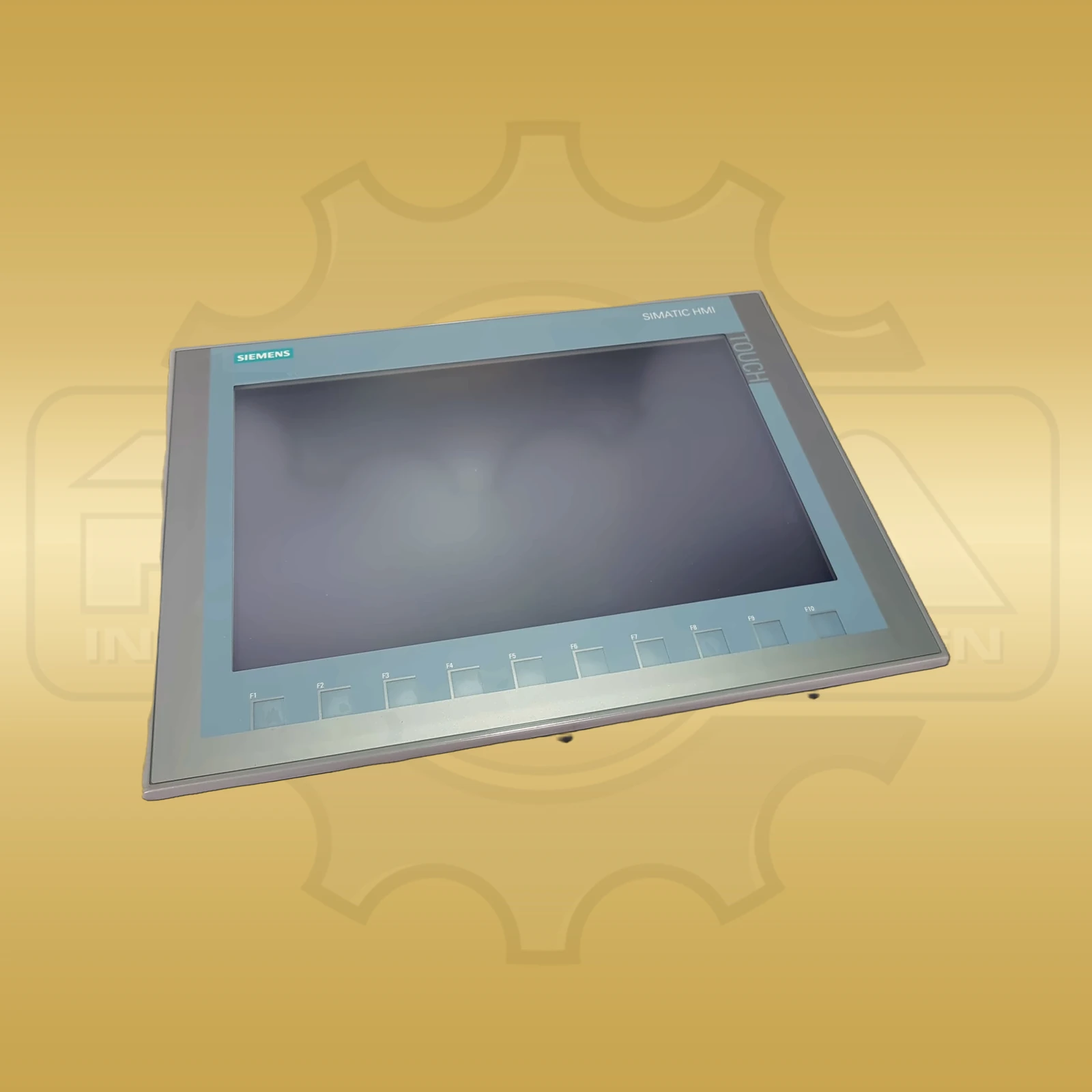

Siemens 6AV2123-2MB03-0AX0
