Siemens 1FK6040-6AK71-1EG0
€1,680.00
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!

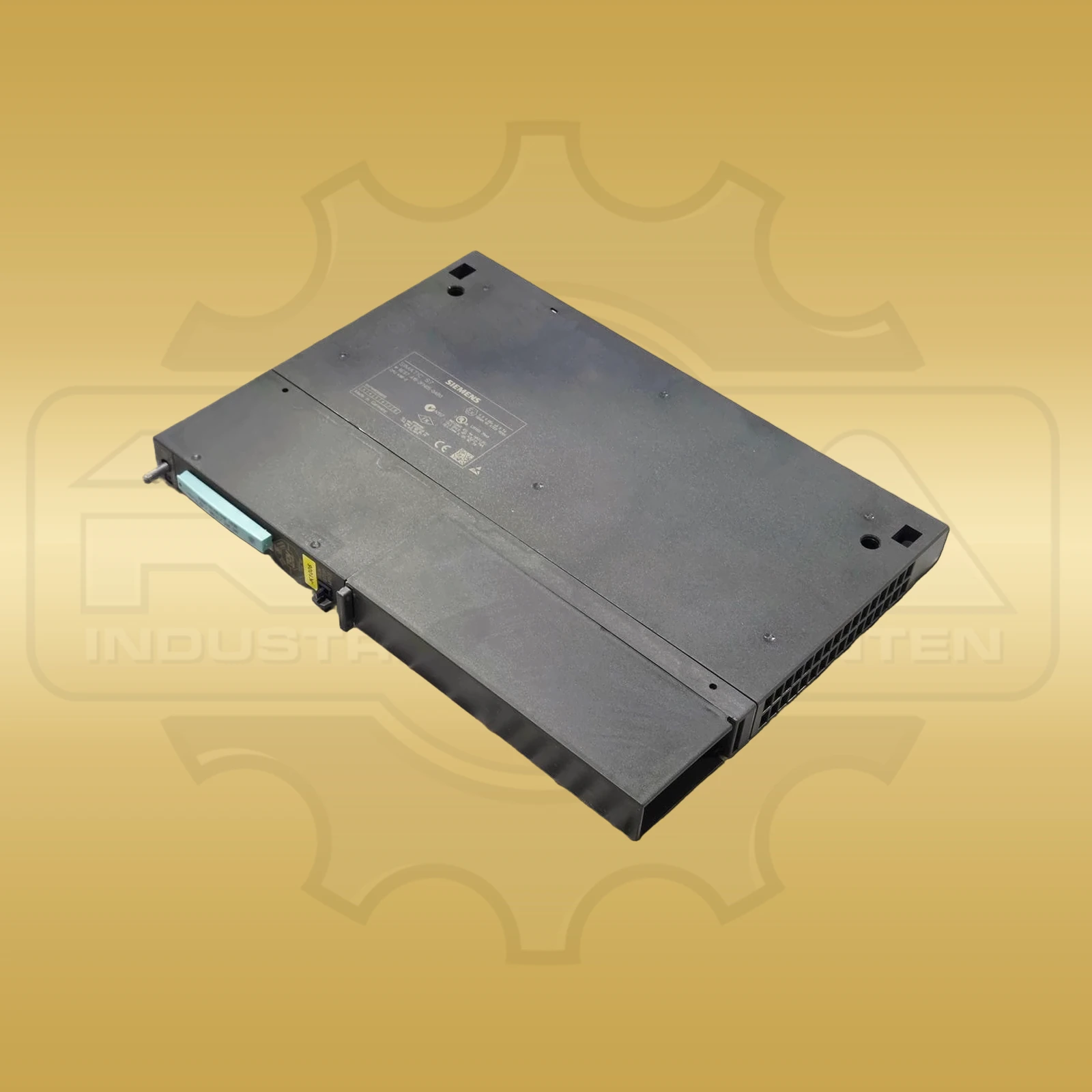

The Siemens 6ES7 416-2FN05-0AB0 is a fail-safe central processing module from the SIMATIC-S7-400 series for powerful and safety-related automation tasks. The CPU 416F-2 has 5.6 MB working memory, divided into 2.8 MB each for program and data. An execution time of 30 ns is documented for bit, word and fixed-point operations; floating-point operations require 90 ns. The module has two electrically isolated RS485 interfaces. The first is a combined MPI/PROFIBUS DP interface, while the second is a PROFIBUS DP interface. Both support transmission rates up to 12 Mbit/s. As a DP master, the first interface can operate up to 32 slaves and the second up to 125 slaves. The addressable input and output range is 16 kB each. Distributed Safety from version V5.2 SP2 and STEP 7 from V5.3 SP2 are documented for fail-safe programs. This version has hardware revision 03 and firmware V5.3. Typical power loss is 4.5 W, with a maximum of 5 W. An operating temperature range from 0 to 60 °C is specified. The CPU occupies one slot, measures 25 × 290 × 219 mm and weighs approximately 700 g. These features make the 6ES7 416-2FN05-0AB0 particularly suitable as a type-identical replacement in existing S7-400F controllers. Its large working memory and integrated bus connections support extensive control programs and distributed automation structures in production plants. Before replacement, check the complete order number, hardware and firmware version, memory card, safety signature, F-program, STEP-7 project, PROFIBUS addresses, interface configuration, module revision and plant approvals. Adjacent CPU-416 versions can differ in memory, interfaces, safety function and firmware.
| Manufacturer | Siemens |
|---|---|
| Product series | SIMATIC S7-400 |
| Manufacturer/order/identification number | 6ES7 416-2FN05-0AB0 |
| Module type | CPU 416F-2 |
| Function | fail-safe central processing module |
| Working memory | 5.6 MB |
| Memory allocation | 2.8 MB program / 2.8 MB data |
| Processing time bit/word/fixed point | 30 ns |
| Processing time floating point | 90 ns |
| Interfaces | 2 × RS485, electrically isolated |
| Communication | MPI / PROFIBUS DP |
| Transmission rate | up to 12 Mbit/s |
| Input/output address range | 16 kB each |
| Hardware revision | 03 |
| Firmware version | V5.3 |
| Power loss | typically 4.5 W, maximum 5 W |
| Operating temperature | 0 to 60 °C |
| Dimensions | 25 × 290 × 219 mm |
| Weight | approx. 700 g |
| Slot requirement | 1 slot |
Machine downtime?
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Manufacturer / EU responsible person
The order number identifies a SIMATIC S7-400 CPU 416F-2 with 5.6 MB working memory, hardware revision 03, firmware V5.3 and two integrated PROFIBUS DP interfaces.
The complete order number, hardware and firmware version, memory card, safety signature, F-program, STEP-7 version, PROFIBUS addresses and all plant approvals must be checked.
