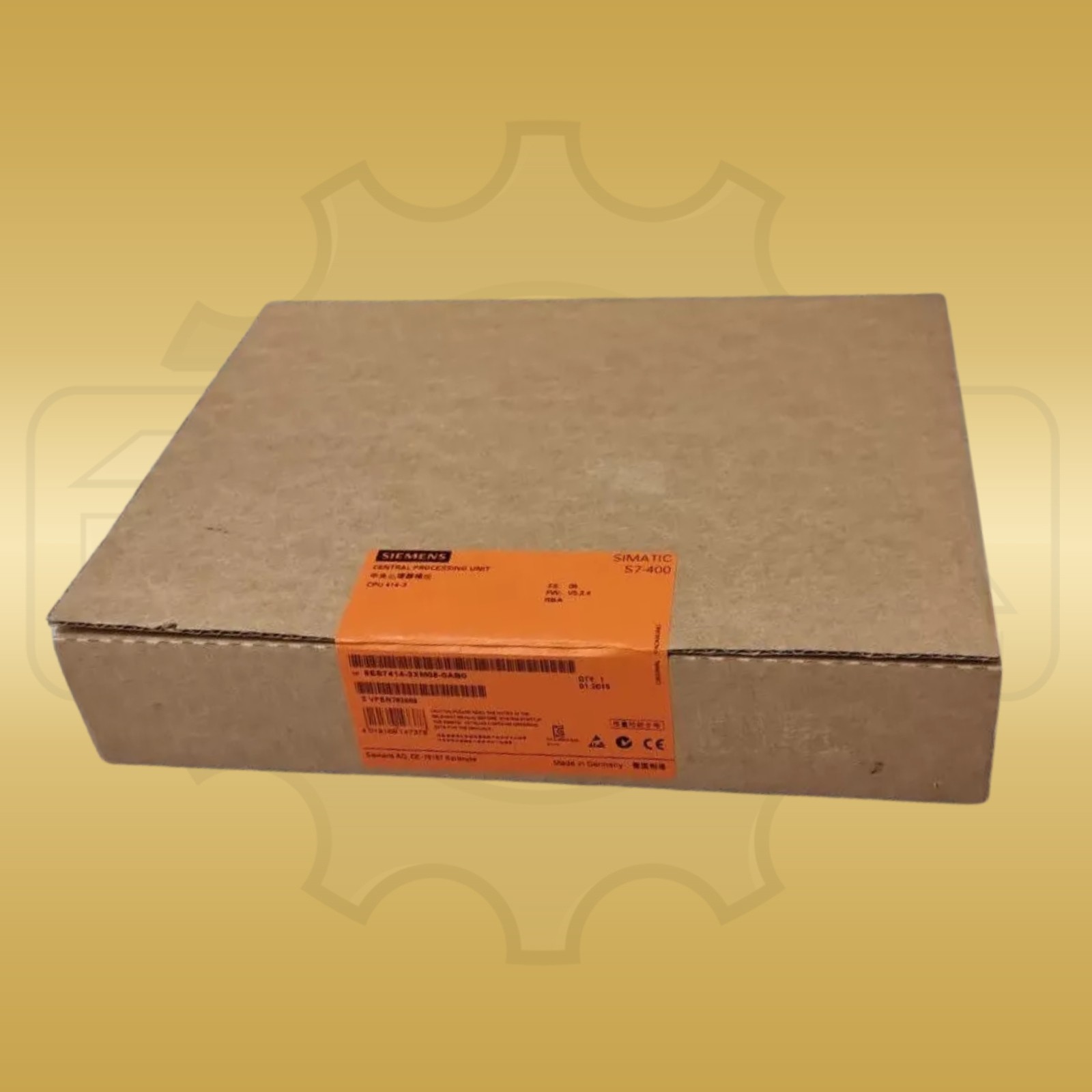

Siemens 6ES7414-3XM05-0AB0
€1,460.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
The Siemens 6ES7513-1FL02-0AB0 is a fail-safe central processing unit in the SIMATIC S7-1500F series. Siemens identifies it as CPU 1513F-1 PN with 450 KB integrated working memory for the program and 1.5 MB for data. A SIMATIC Memory Card is required for load memory; cards up to 32 GB are documented. The hardware functional status is FS03 and the specified firmware version is V2.9. Configuration of firmware V2.9 is documented from STEP 7 TIA Portal V17. The typical execution time for bit operations is 40 ns. The integrated PROFINET IRT interface has a two-port switch. The documented PROFINET roles are IO Controller and IO Device. As a controller, the CPU is specified for up to 128 PROFINET IO devices, including up to 64 with IRT. Further documented functions include isochronous mode, direct data exchange, PROFIenergy, prioritized startup, media redundancy, and a web server. Fail-safe communication uses PROFIsafe V2.4/V2.6. Siemens specifies Performance Level PLe according to ISO 13849-1 and SIL 3 according to IEC 61508. The supply voltage is 24 V DC within a permissible range of 19.2 to 28.8 V. Rated current consumption is 0.7 A, the maximum is 0.95 A, and typical power loss is 5.7 W. The front display has a 3.45 cm diagonal, eight keys, and two mode buttons. For horizontal installation, the documented operating temperature is -25 to 60 °C. The CPU is 35 mm wide, 147 mm high, and 129 mm deep; approximate weight is 405 g. The complete 6ES7513-1FL02-0AB0 order number, fail-safe CPU type, hardware status, and PROFINET version are the defining identifiers of this documented unit.
Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIMATIC S7-1500F |
| Manufacturer / order / identification number | 6ES7 513-1FL02-0AB0 |
| Device class | Fail-safe central processing unit CPU 1513F-1 PN |
| Program memory | 450 KB integrated |
| Data memory | 1.5 MB integrated |
| Load memory | SIMATIC Memory Card required, up to 32 GB |
| PROFINET interface | 1 × PROFINET IRT with two-port switch |
| PROFINET roles | IO Controller and IO Device |
| PROFINET IO devices | Up to 128 devices, including up to 64 with IRT |
| Bit performance | 40 ns typical |
| Supply voltage | 24 V DC; permissible 19.2–28.8 V |
| Current consumption | 0.7 A rated; 0.95 A maximum |
| Power loss | 5.7 W typical |
| Display | 3.45 cm diagonal, 8 keys, and 2 mode buttons |
| Hardware / firmware status | FS03 / V2.9 |
| Functional safety | PROFIsafe V2.4/V2.6, PLe, and SIL 3 |
| Operating temperature | -25–60 °C with horizontal installation |
| Dimensions | 35 × 147 × 129 mm (W × H × D) |
| Weight | approx. 405 g |
Related products
Go to shop
Siemens 6ES7414-4HR14-0AB0
Price on request

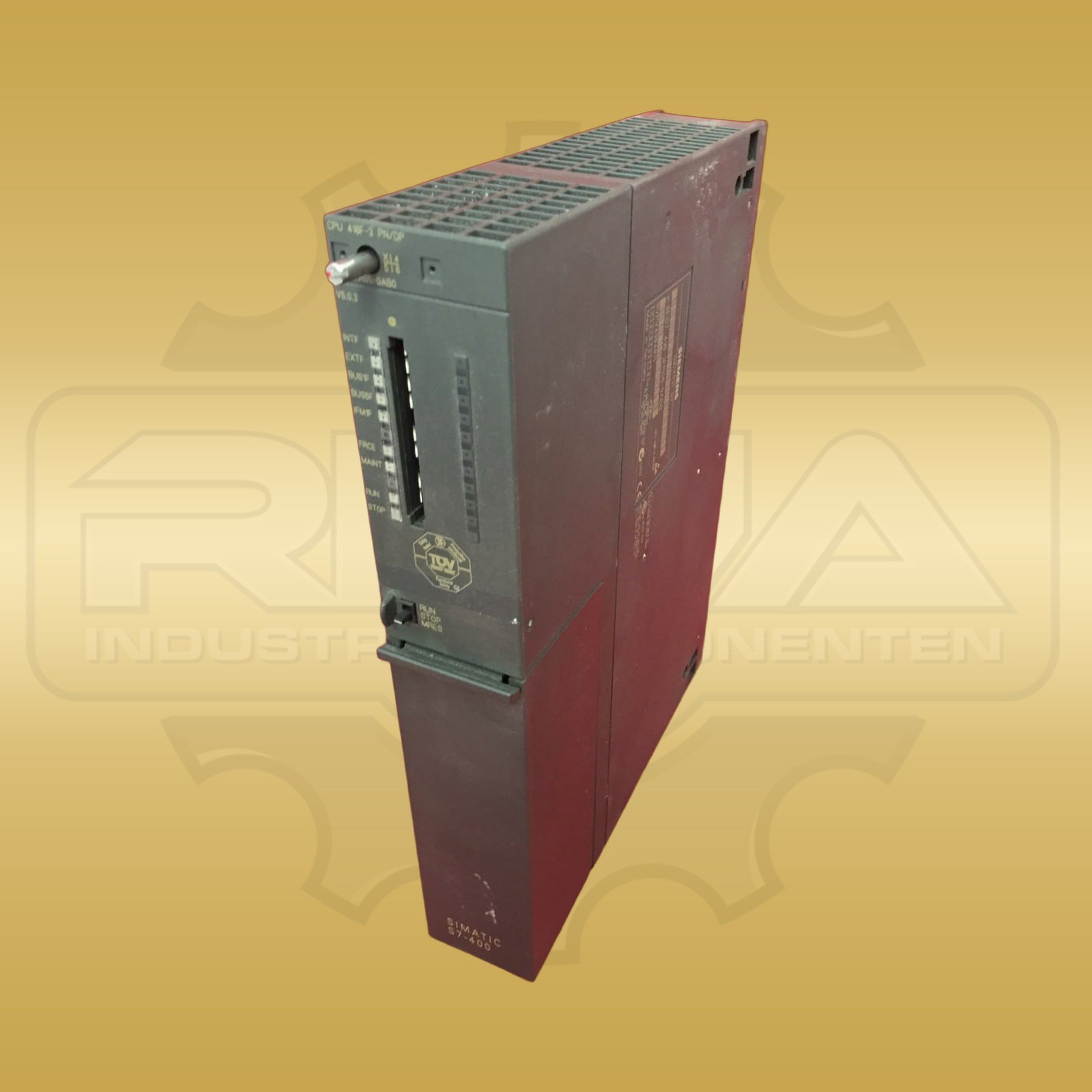

Siemens 6ES7416-3FR05-0AB0
€270.00
Siemens 1FK6040-6AK71-1EG0
€1,680.00
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
Which memory capacities are documented for the Siemens CPU 1513F-1 PN?
Siemens specifies 450 KB integrated program memory and 1.5 MB integrated data memory. A SIMATIC Memory Card is required for load memory; cards up to 32 GB are documented.
Which safety and PROFINET data apply to 6ES7513-1FL02-0AB0?
The CPU uses PROFIsafe V2.4/V2.6 and is specified with Performance Level PLe and SIL 3. Its integrated PROFINET IRT interface has two ports, with IO Controller and IO Device as the documented roles.
