IndraDyn S / MSM Permanent-magnet synchronous servo motor

Bosch Rexroth MSM031C-0300-NN-M0-CH1

€610.00

excl. VAT

Product condition:
New, old stock

Unused goods from older stock. Original packaging, if present, may have been opened. Manufacturing date and packaging may vary; age- or storage-related marks are possible.

  • Available · Ships in approx. 3–6 business days
  • Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.

Quantity: 1

Do you have any questions?

Personal service

We are happy to help with processing, shipping or individual quotations. Simply contact us:

Online and available Currently unavailable

International delivery

Available shipping options and net charges are calculated after the delivery country and postcode are entered at checkout. If no reliable rate is available, request an individual quotation.

Product description

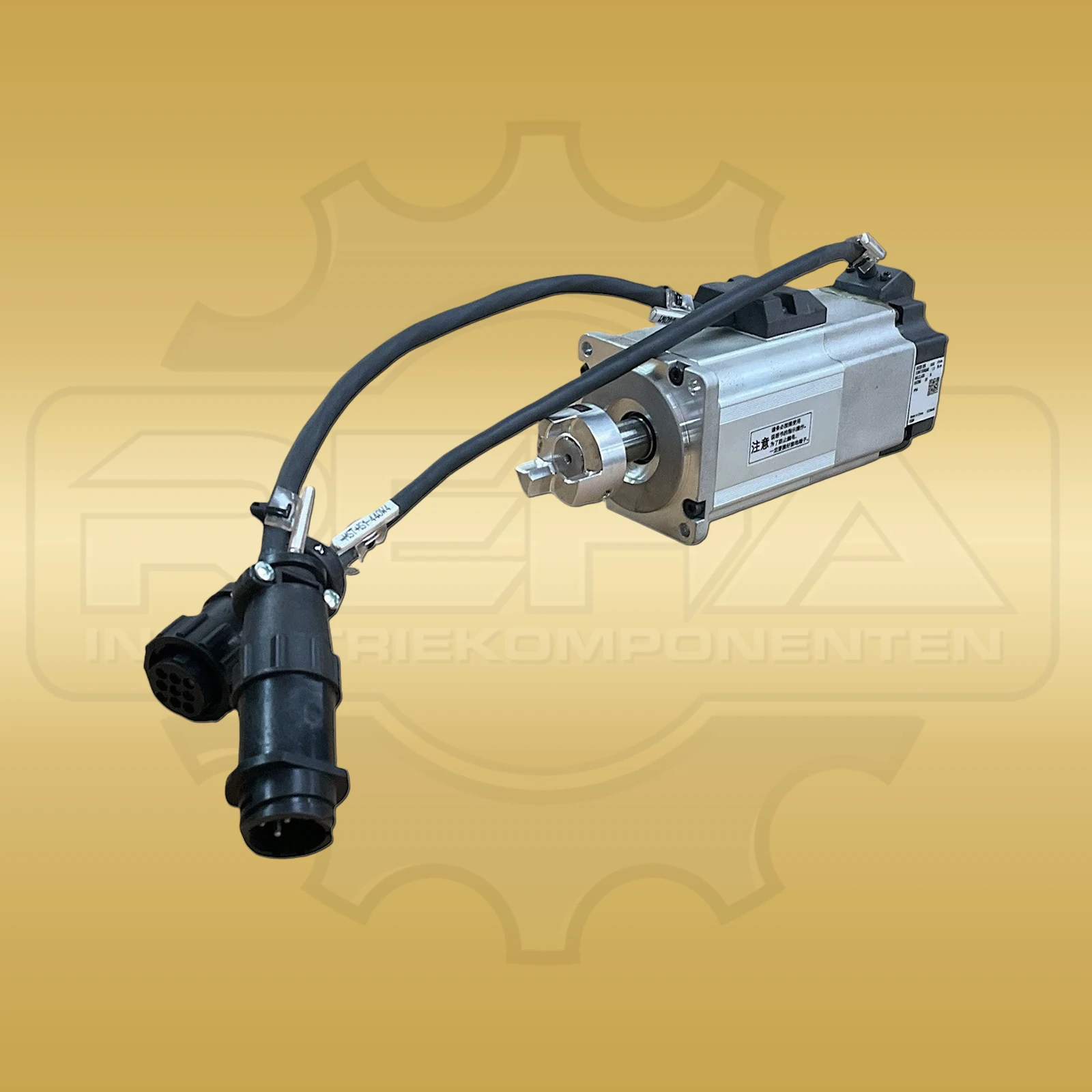

Bosch Rexroth MSM031C-0300-NN-M0-CH1 identifies a permanent-magnet synchronous servo motor from the IndraDyn S MSM range. The type code assigns the motor to size 031 and motor length C. Rated power is 300 W and rated speed is 3000 U/min. At standstill, the version supplies 1.30 Nm continuous torque. A multiturn absolute encoder provides position feedback. Suffix CH1 denotes the cable-outlet version with an electrically released holding brake. Documented holding torque is 1.27 Nm. Mechanically, the motor uses a plain shaft without a shaft seal. Heat is dissipated by natural convection, and the enclosure reaches IP65.

The Bosch Rexroth data sheet specifies an overall axial length of 135 mm for the braked MSM031C version. Flange width is 60 mm, while maximum height including the connection area is 73 mm. Complete external dimensions are therefore 73 × 60 × 135 mm in height × width × depth order, including the shaft. Documented motor weight with holding brake is 1.7 kg. Mating connectors, cables and attached coupling parts are not included in these device dimensions. Exact identification requires the complete type number, size, motor length, encoder, brake, shaft, connection version, dimensions and weight.

Adjacent MSM031 versions can differ in length, encoder or brake despite similar power data. The dimensions refer to the complete motor housing with the holding brake installed and the shaft extension. They can therefore be used when checking installation space, transport containers and storage locations. Additional clearance needed for cable bends, mating connectors, couplings and tool access must be considered separately before installation.

Specifications

Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.

Identification

Manufacturer Bosch Rexroth
Product series IndraDyn S / MSM
Manufacturer/order/identification number MSM031C-0300-NN-M0-CH1
Device type permanent-magnet synchronous servo motor

Performance data

Rated power 300 W
Rated speed 3000 U/min
Continuous torque at standstill 1.30 Nm
Brake holding torque 1.27 Nm

Interfaces

Encoder system multiturn absolute encoder
Connection version cable outlet

Installation and environment

Cooling method natural convection
Protection rating IP65

Dimensions and weight

Frame size 031
Motor length C
Dimensions 73 × 60 × 135 mm (H × W × D, including shaft)
Weight 1.7 kg

Further details

Holding brake electrically released
Shaft end plain shaft
Industrial production environment

Urgent requirement?

Shipping options

Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.

Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.

Contact us now!

Product safety

Manufacturer / EU responsible person

FAQ

Questions about MSM031C-0300-NN-M0-CH1

Contact us
What are the dimensions of Bosch Rexroth MSM031C-0300-NN-M0-CH1?

Complete external dimensions are 73 × 60 × 135 mm including the shaft.

How much does Bosch Rexroth MSM031C-0300-NN-M0-CH1 weigh?

Documented motor weight with holding brake is 1.7 kg.
