Control Techniques SP0402
€980.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

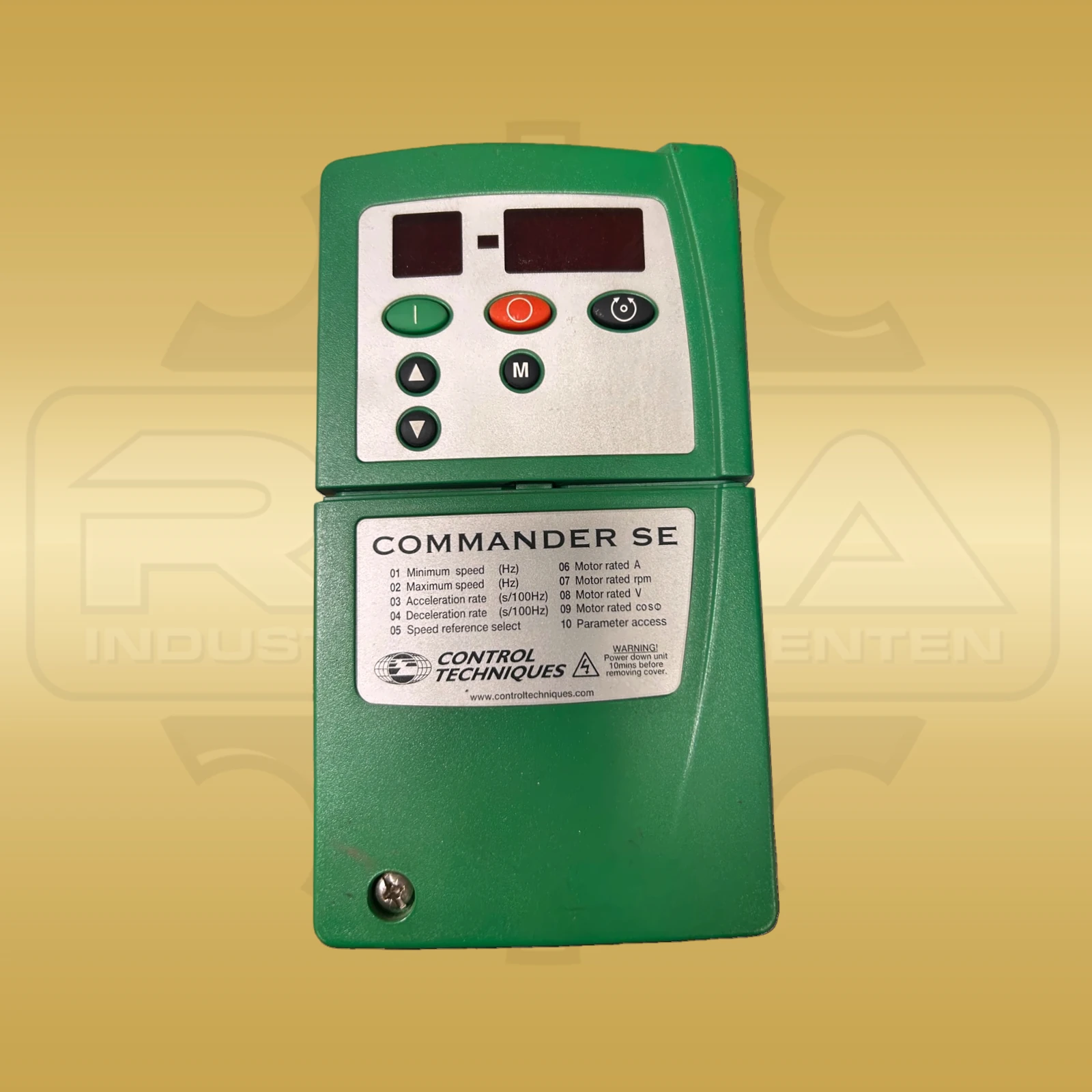

The SE1.5M variable frequency drive carries full Control Techniques order number SE11200075 and belongs to the Commander SE series. The code identifies frame size 1 and the 0.75 kW or 1 hp power class. Mains supply is 200–240 V AC single-phase, while motor output is three-phase. The intended motor type is a three-phase induction motor. Control methods comprise open-loop vector control and V/Hz operation. An integrated keypad with display sits on the front. Programmable digital and analogue inputs and outputs form the control interfaces. Installation is within a control cabinet. The manufacturer drawing for Commander SE frame size 1 specifies an enclosure width of 102 mm, overall height of 191 mm and depth of 130 mm. Complete external dimensions are therefore 102 × 191 × 130 mm. A device weight of 1.25 kg is documented for SE11200075. The front surface carries the display, keys and terminal cover; heat sink and power stage remain inside the stated outer contour. Manufacturer, product series and manufacturer/order/identification number are Control Techniques, Commander SE and SE11200075. Short designation SE1.5M remains as an additional device identifier. Electrical supply, output arrangement, control modes, operator interface, control signals, installation environment and complete mechanical values are thus assigned to one specific version.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Control Techniques |
|---|---|
| Product series | Commander SE |
| Manufacturer / order / identification number | SE1.5M |
| Full order code | SE11200075 |
| Device type | Variable frequency drive for three-phase induction motors |
| Rated power | 0.75 kW / 1 hp |
| Mains voltage | 200–240 V AC |
| Mains input | Single-phase |
| Motor output | Three-phase |
| Control method | Open-loop vector control and V/Hz characteristic |
| Motor type | Three-phase induction motor |
| Operation | Integrated keypad with display |
| Control signals | Programmable digital and analogue inputs/outputs |
| Installation environment | Control cabinet |
| Dimensions | 102 × 191 × 130 mm (W × H × D) |
| Weight | 1.25 kg |
Related products
Go to shop

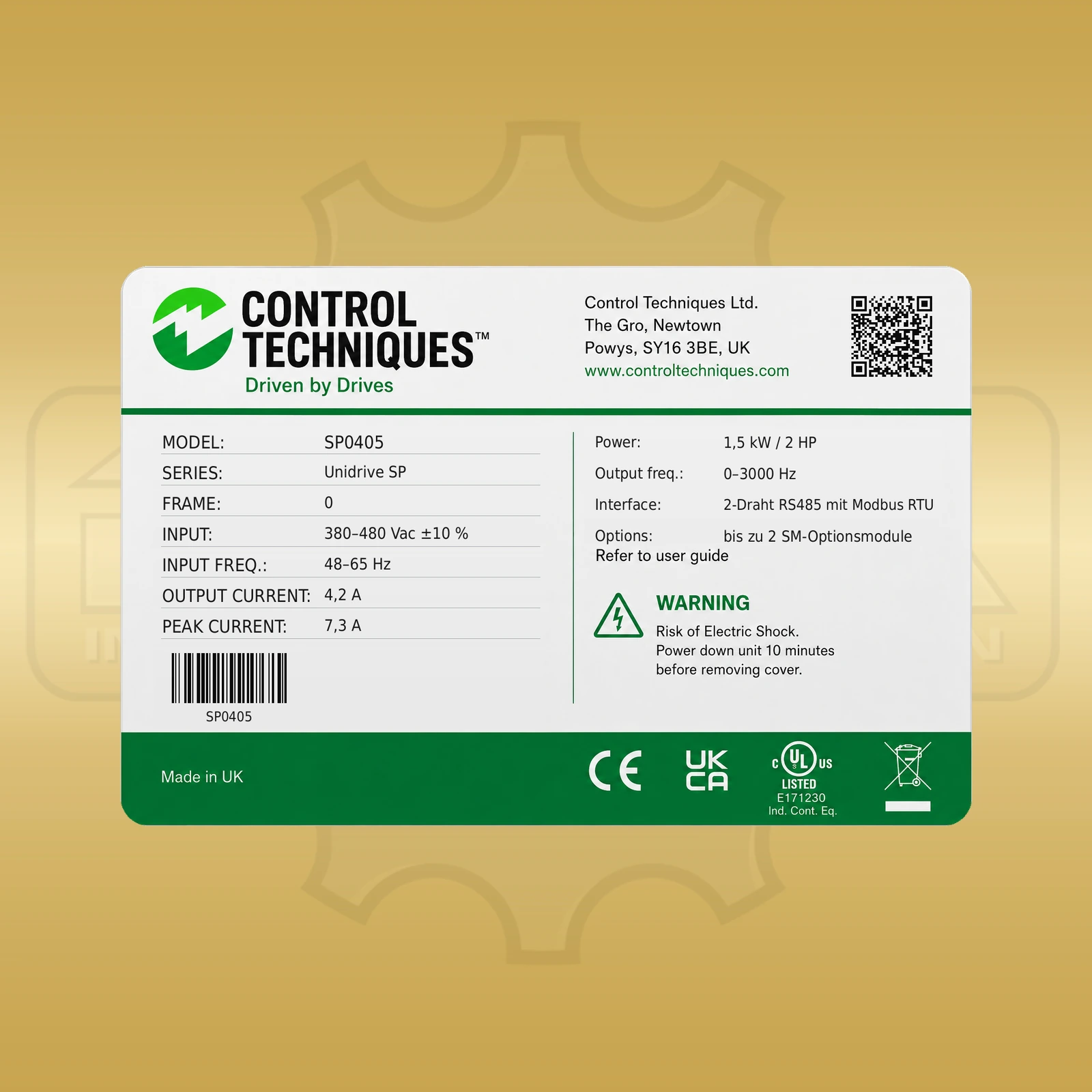

Control Techniques SP0405
€980.00

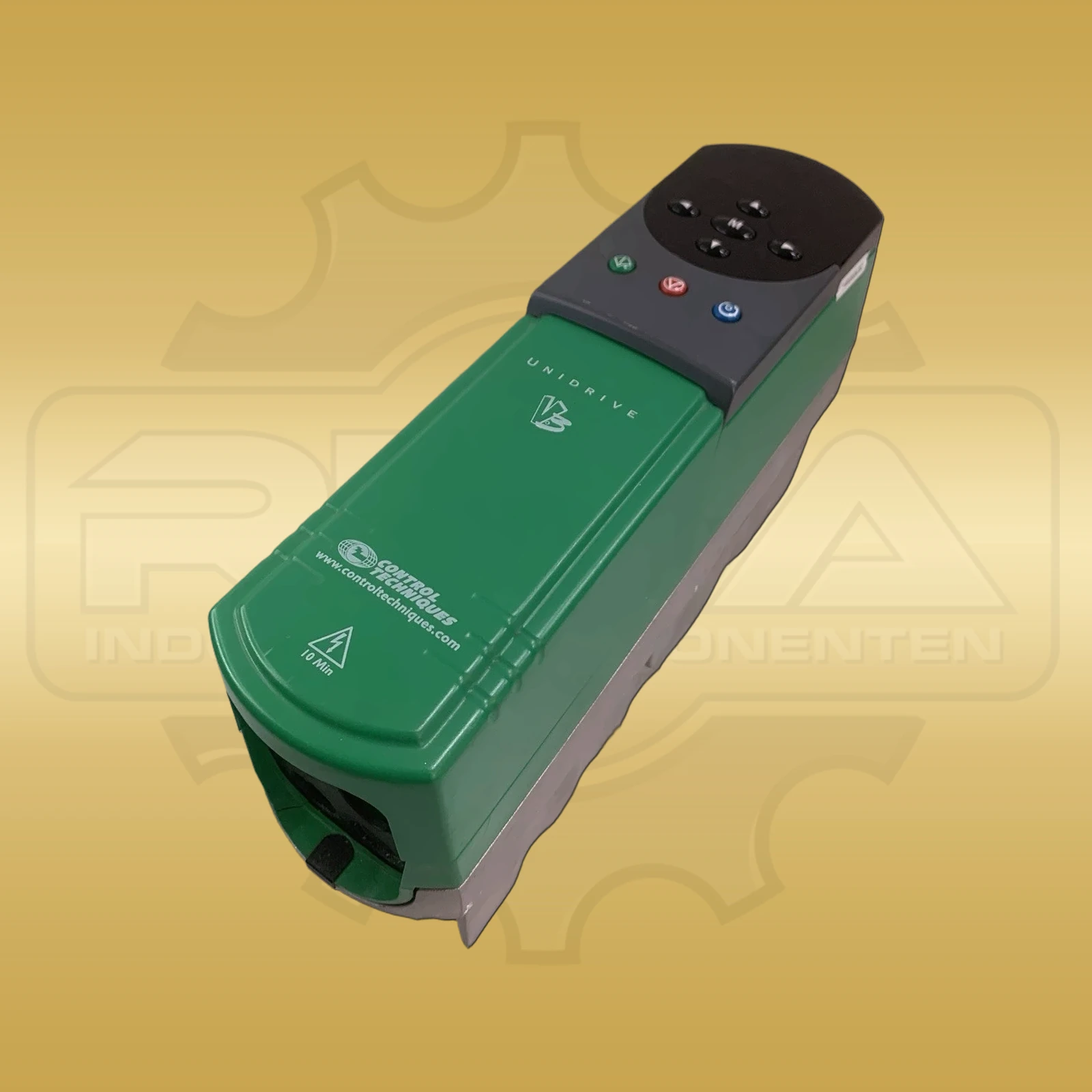

Control Techniques UNI1402
€1,090.00

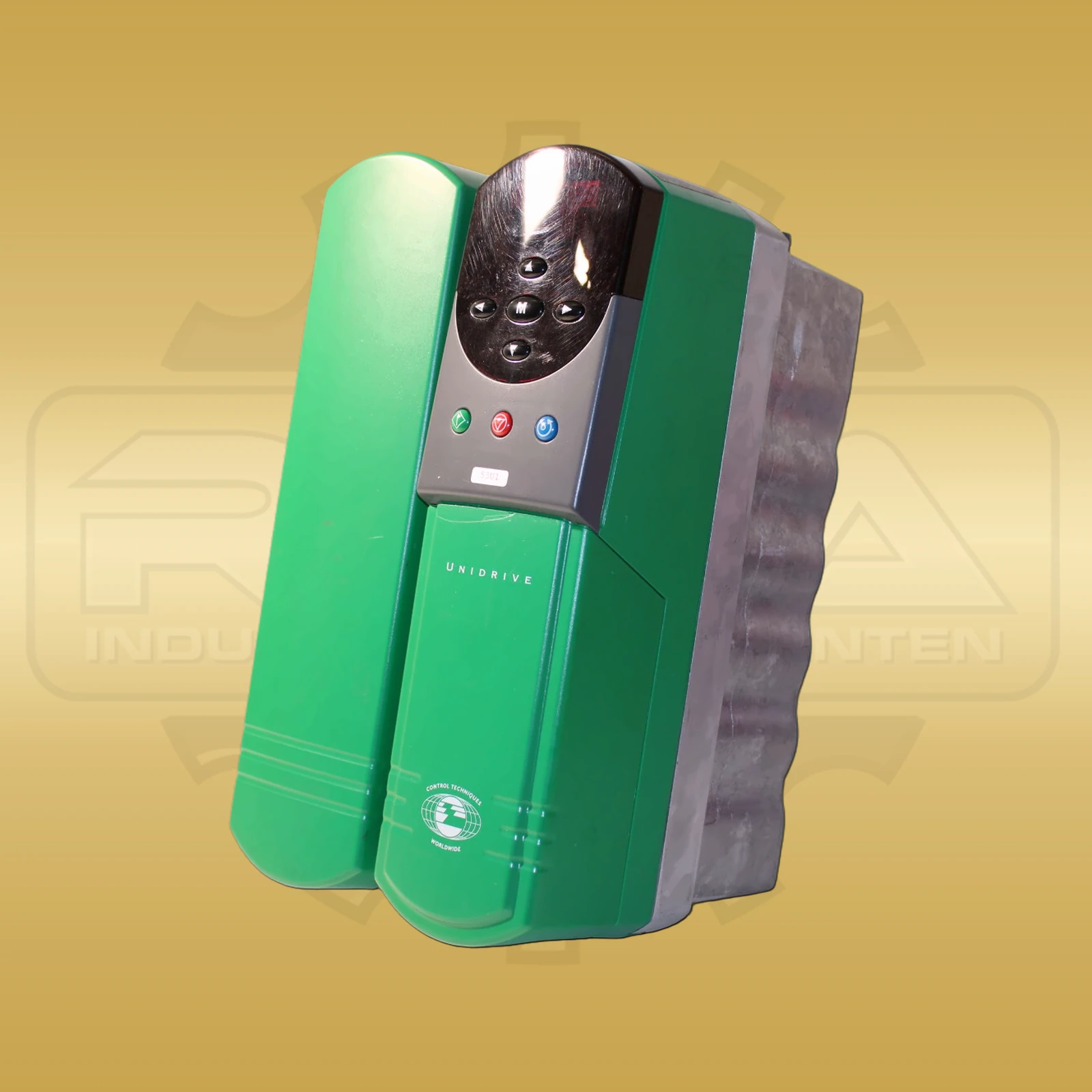

Control Techniques UNI2402
