Fanuc A06B-0314-B001
Price on request
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description
The Fanuc A06B-0116-B804#0037 is an AC servo motor for precise and fast axis movements in industrial CNC and robotic systems. This specific version belongs to the FANUC βiS series and is identified as the βiS1/6000 motor model. With a rated output of 0.5 kW, a maximum speed of 6,000 min⁻¹ and a three-phase motor design, it is intended for compact, dynamic servo axes. The straight shaft with keyway provides a positive mechanical connection to the existing axis mechanism. An integrated 90 V DC holding brake supports secure holding of the axis at standstill. Position and speed feedback are provided by a B64iA absolute encoder. During replacement, the complete order number including the #0037 suffix is decisive because the basic motor type, shaft design, brake and feedback system must match the existing axis configuration. The connector assignment, flange and shaft dimensions, mounting position, brake control and installed FANUC servo amplifier must also be compared with the machine documentation. This check prevents a similarly designated neighbouring variant with a different shaft, brake or feedback system from being installed. The motor is particularly suitable as a spare part for maintenance, repair and retrofit when an existing machine with unchanged mechanics and control needs to be returned to service quickly. For commissioning, the permissible controller parameters, axis data and safety functions must be taken from the applicable FANUC machine and servo documentation. REHA-Components supplies the A06B-0116-B804#0037 for professional use in production equipment and supports customers in matching the existing motor and axis data.
Specifications
| Manufacturer | Fanuc |
|---|---|
| Product series | FANUC βiS servo motors |
| Manufacturer / order / identification number | A06B-0116-B804#0037 |
| Device type | AC servo motor |
| Motor model | βiS1/6000 |
| Rated output | 0.5 kW |
| Maximum speed | 6,000 min⁻¹ |
| Phase system | 3-phase |
| Number of poles | 8 poles |
| Shaft design | Straight shaft with keyway |
| Holding brake | 90 V DC |
| Feedback system | B64iA absolute encoder |
| Insulation class | Class F |
| Application | CNC and robot axes |
Related products
Go to shop
Fanuc A06B-0239-B200
Price on request

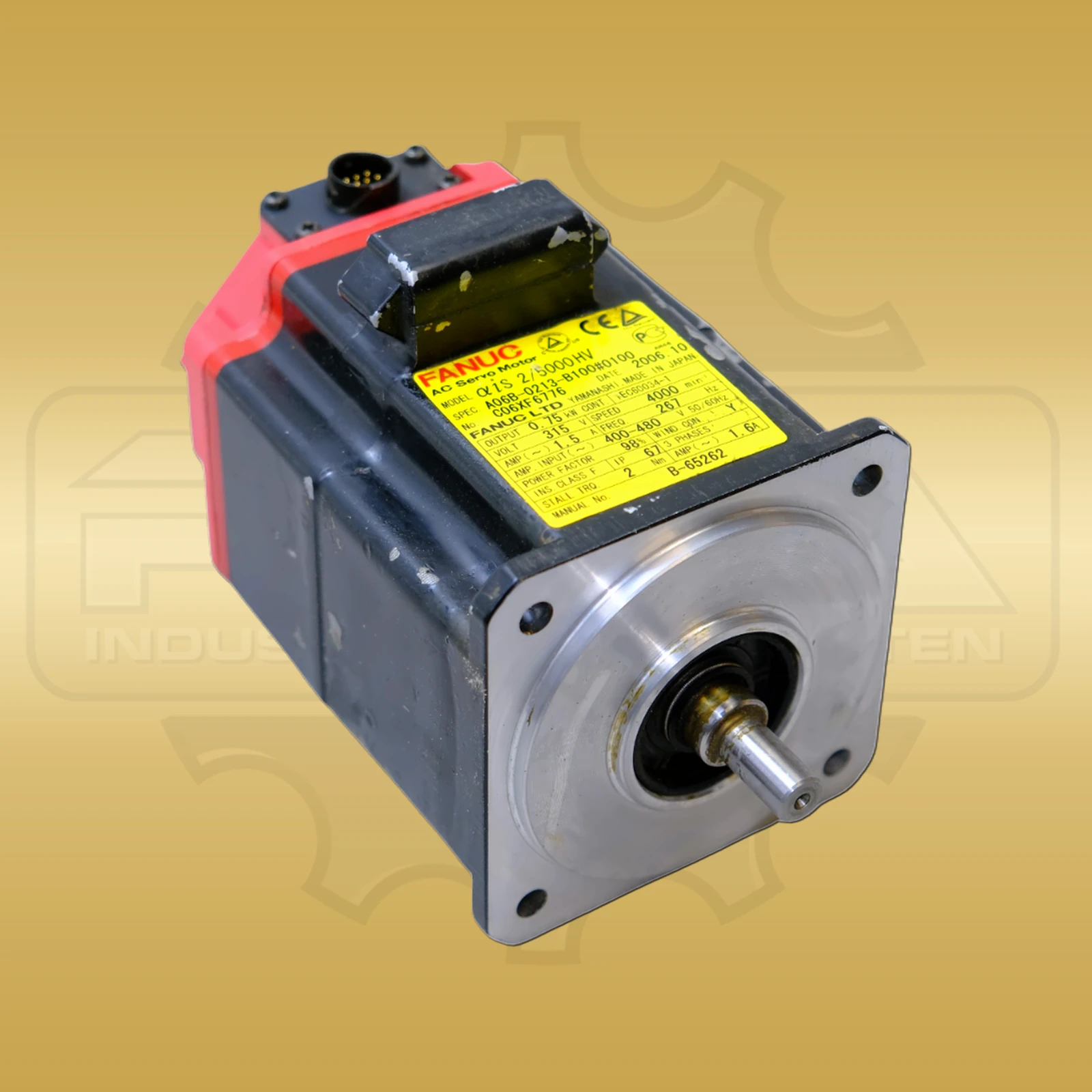

Fanuc A06B-0213-B100#0100
Price on request
Fanuc A06B-0372-B175
Price on request
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
Which features identify the A06B-0116-B804#0037?
This version combines the βiS1/6000 servo motor with a straight shaft and keyway, a 90-V-DC holding brake and a B64iA absolute encoder.
What must be checked when replacing the FANUC servo motor?
Check the complete order number including #0037, flange and shaft, brake voltage, encoder, connector assignment, mounting position and the corresponding FANUC servo amplifier.
