Lenze EVS9328-EP
€1,570.00
excl. VAT
Product condition:
Used, removed from an installation
The item comes from dismantled equipment. We have not carried out an electrical inspection or a comprehensive operational check. Signs of age, use, installation or removal may be present. 14-day right of return in the event of a defect. See Terms and Conditions
- Available · Ships in approx. 1–2 business days
- Urgent? Faster options such as direct or express shipping are often possible. Please state your required date when you request a quote or order.
Do you have any questions?
Personal service
We are happy to help with processing, shipping or individual quotations. Simply contact us:
Online and available Currently unavailable
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

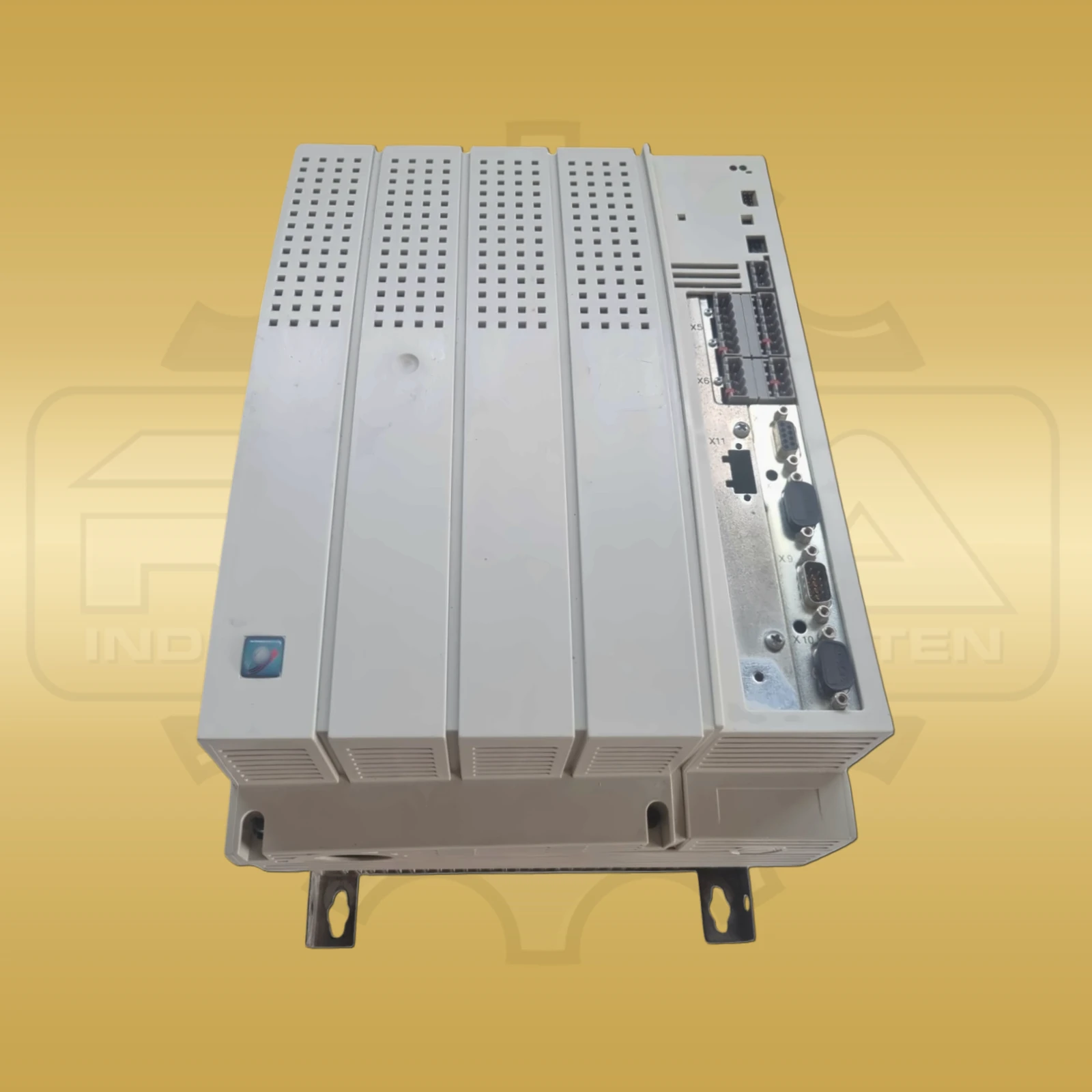

The positioning version EP identifies the Lenze EVS9328-EP within the 9300 drive family. The device takes on the role of a servo position controller and combines this functional version with the power stage 9328. In the series, position controllers, servo controllers, register control and cam versions are listed separately; the EP identifier here explicitly designates the positioning version. Its electrical rated values are tied to the mains voltage and the switching frequency of the inverter. On the three-phase 400-V mains, a motor power of 22 kW is assigned for a four-pole asynchronous motor. At 8 kHz, a rated output current of 47 A and an apparent output power of 32.6 kVA apply. With a switching frequency of 16 kHz, the associated rated current is 30.6 A. The higher switching frequency is therefore linked to a different current rating. On the 480-V mains, a motor power of 30 kW and an apparent output power of 37 kVA apply for the same power stage. Under this mains condition, the rated current is 44.7 A at 8 kHz and 28.2 A at 16 kHz respectively. These values each belong to their own operating conditions and do not describe freely combinable performance data. For the mains supply, the permissible voltage range covers 320 to 528 V AC at 45 to 65 Hz. Alternatively, supply via the DC link with 460 to 740 V DC is provided. For an order with shipping to the United States and other international destinations, EVS9328-EP designates the positioning version of this power stage. The electrical power loss is 640 W under the stated rated conditions. The mechanical device profile includes a width of 250 mm, a height of 350 mm and a depth of 250 mm as well as a weight of 12.5 kg. Mains supply and alternative DC voltage supply form two separately specified connection types.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product series | 9300 |
| Manufacturer/order/ident number | EVS9328-EP |
| Device type | Servo position controller |
| Mains voltage | 3 AC 320–528 V |
| Mains frequency | 45–65 Hz |
| Alternative DC voltage supply | 460–740 V DC |
| Motor power at 400 V (four-pole ASM) | 22 kW |
| Motor power at 480 V (four-pole ASM) | 30 kW |
| Output current at 400 V / 8 kHz | 47.0 A |
| Output current at 400 V / 16 kHz | 30.6 A |
| Output current at 480 V / 8 kHz | 44.7 A |
| Output current at 480 V / 16 kHz | 28.2 A |
| Apparent output power at 400 V / 8 kHz | 32.6 kVA |
| Apparent output power at 480 V / 8 kHz | 37.0 kVA |
| Power loss | 640 W |
| Dimensions | 250 × 350 × 250 mm |
| Weight (reference basis not stated) | 12.5 kg |
Lenze 9300 Servo error codes
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
How do the current values differ at 8 and 16 kHz?
At a mains voltage of 400 V, the rated output current is 47.0 A at 8 kHz and 30.6 A at 16 kHz. At 480 V, the values are 44.7 A and 28.2 A respectively.
