Product description

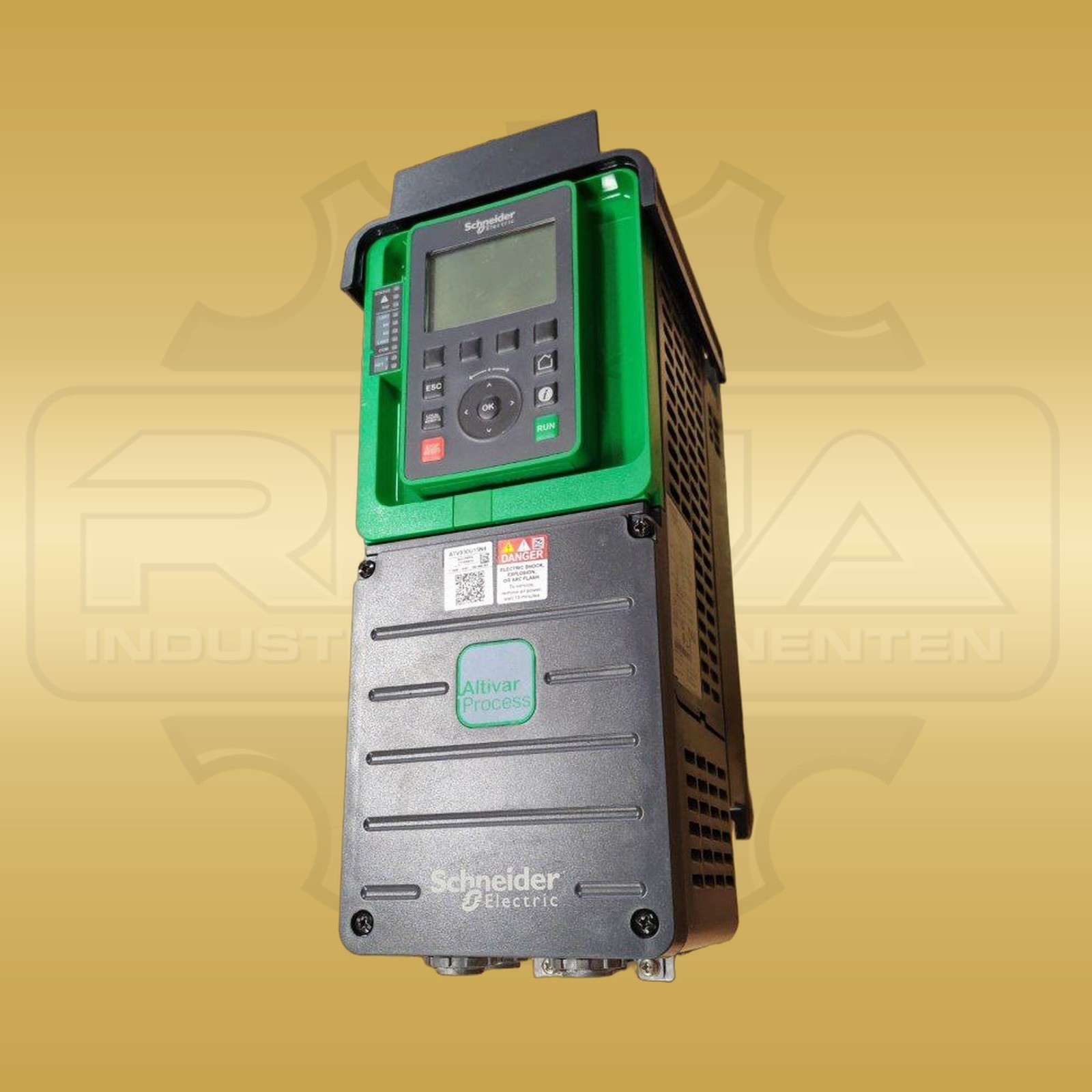

On the Schneider Electric ATV930U15N4, the assigned motor power differs between Normal Duty and Heavy Duty: 1.5 kW in normal operation compares with 0.75 kW in operation with higher overload requirements. The frequency converter belongs to the Altivar Process ATV900 series and forms the power electronics of a speed-controlled motor drive. The supply is three-phase with 380 to 480 V at 50 to 60 Hz. At a switching frequency of 4 kHz, the version continuously delivers 4 A in Normal Duty or 2.2 A in Heavy Duty. The short-time current values are also stated separately: 4.8 A and 3.3 A respectively apply for 60 seconds. The operating mode is therefore directly linked to the electrical rating. The ATV930U15N4 version with shipping from Germany to the United States and other international destinations for the specific order includes an integrated braking module and an integrated EMC filter. Its assignment distinguishes category C2 up to 50 m and category C3 up to 150 m cable length according to EN/IEC 61800-3. On the communication side, Modbus TCP and EtherNet/IP are available via two internally switched Ethernet ports, as well as Modbus via a serial RS485 interface. The integrated web server provides access to configuration and monitoring; in addition, a graphical operating terminal and parameterization via SoMove are part of the operating concept. Digital and analog signals are processed via the local inputs and outputs, while relay outputs provide separate switching signals. The device is designed as a wall-mounted unit with protection class IP21 and is cooled by forced convection. Vertical mounting is intended; the dimensions are 144 mm width, 350 mm height and 206 mm depth.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Schneider Electric |
|---|---|
| Product series | Altivar Process ATV900 |
| Manufacturer/order/ident number | ATV930U15N4 |
| Device type | Frequency converter |
| Line voltage | 380–480 V, 3-phase |
| Line frequency | 50–60 Hz ±5 % |
| Motor power Normal Duty | 1.5 kW |
| Motor power Heavy Duty | 0.75 kW |
| Continuous output current Normal Duty | 4 A at 4 kHz |
| Continuous output current Heavy Duty | 2.2 A at 4 kHz |
| Short-time current Normal Duty | 4.8 A for 60 s |
| Short-time current Heavy Duty | 3.3 A for 60 s |
| Braking module | Integrated |
| Protection class | IP21 |
| Cooling method | Forced convection |
| EMC filter | Integrated: C2 up to 50 m, C3 up to 150 m according to EN/IEC 61800-3 |
| Ethernet protocols | Modbus TCP, EtherNet/IP |
| Serial communication | Modbus via RS485 |
| Dimensions | 144 × 350 × 206 mm |
| Weight | approx. 5 kg |
