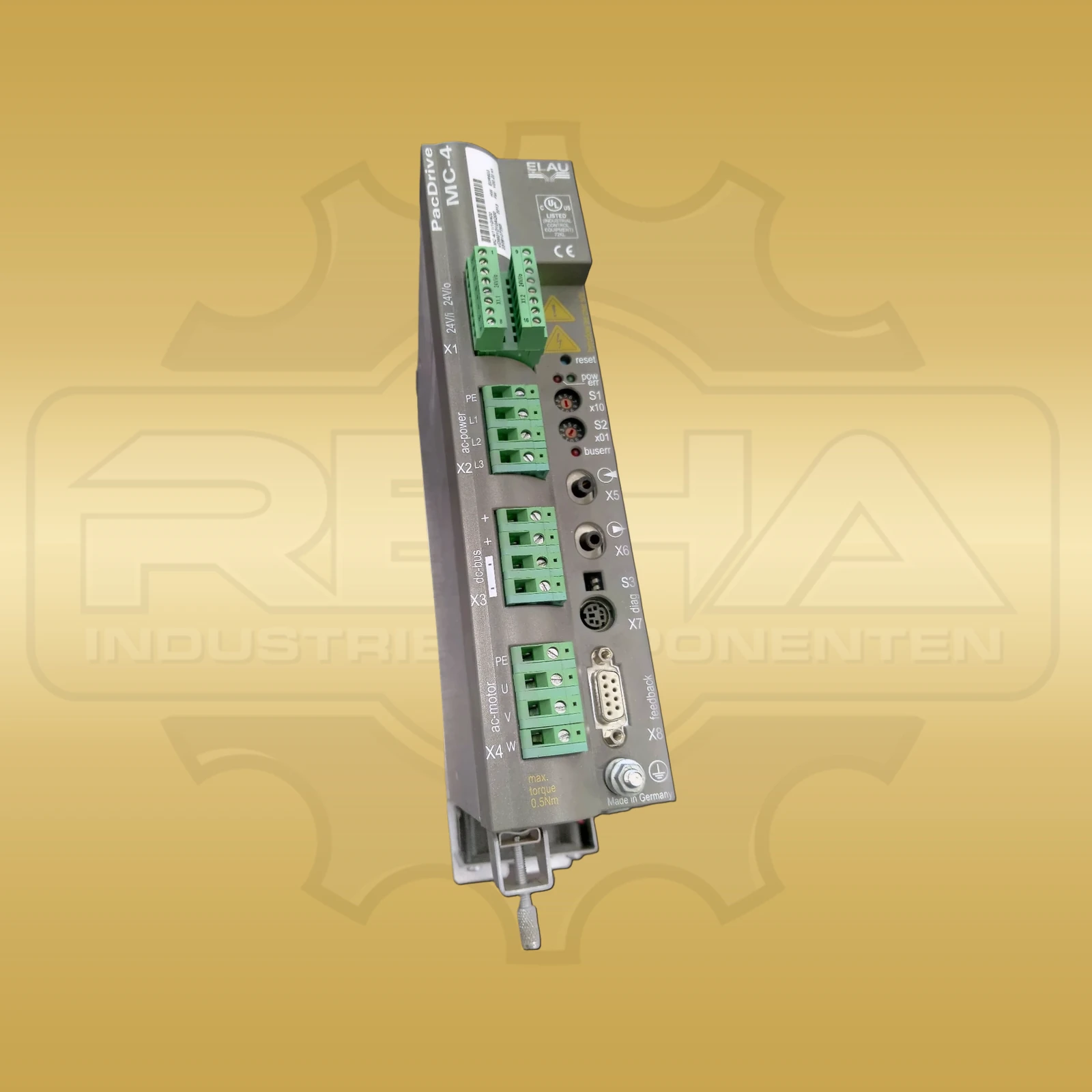

Schneider Electric MC-4/11/10/400
€410.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Schneider Electric SH055/80013/0/0/00/00/00/00/00 is a permanent-magnet three-phase synchronous servo motor from the PacDrive SH range. The ELAU parts list assigns the complete variant code to additional identification number SH30553P01A2000. The operating manual lists the motor as size SH-055 with winding 80 013. At 400 V, documented values are 0.88 kW rated power, 1.05 Nm rated torque and 8.000 1/min rated speed. Stall torque is 1.2 Nm, peak torque is 3.5 Nm and maximum permissible mechanical speed is 9.000 1/min. For electrical planning, the manual specifies 1.7 Arms stall current, 1.35 Arms rated current and 6.5 Arms peak current. The motor has three pole pairs. Torque constant at 120 °C is 0.7 Nm/Arms; rotor moment of inertia is 0.134 kgcm². These values describe winding 80 013 exactly and support assignment of motor, servo amplifier and axis mechanics. The unit is self-cooled; the complete order code additionally defines the specific shaft, encoder, brake and connection version. The dimension drawing specifies a housing length of 176.5 mm and a shaft length of 20 mm for the version without brake. This produces a maximum depth of 196.5 mm. The square flange outline measures 55 mm; the connector assembly determines a maximum height of 94.4 mm. Complete outside dimensions are therefore 55 × 94.4 × 196.5 mm in width × height × depth order. The manual lists a weight of 1.8 kg for SH-055 80 013. Dimensions and weight refer to the motor without shipping packaging.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Schneider Electric |
|---|---|
| Product series | PacDrive SH |
| Manufacturer / order / identification number | SH055/80013/0/0/00/00/00/00/00 |
| Device type | Permanent-magnet three-phase synchronous servo motor |
| Size and winding | SH-055 80 013 |
| Additional identification number | SH30553P01A2000 |
| Stall torque | 1.2 Nm |
| Peak torque | 3.5 Nm |
| Rated speed at 400 V | 8.000 1/min |
| Rated torque at 400 V | 1.05 Nm |
| Rated power at 400 V | 0.88 kW |
| Stall current | 1.7 Arms |
| Rated current | 1.35 Arms |
| Peak current | 6.5 Arms |
| Number of pole pairs | 3 |
| Torque constant at 120 °C | 0.7 Nm/Arms |
| Rotor moment of inertia | 0.134 kgcm² |
| Maximum permissible mechanical speed | 9.000 1/min |
| Dimensions | 55 × 94.4 × 196.5 mm (W × H × D, without brake) |
| Weight | 1.8 kg |
