Schneider Electric LXM62DD15D21029
€2,260.00
Shipping information
Do you require an expedited shipping option for this item?
Please contact us!
Product description
The Schneider Electric SH30703P02F2000 is a three-phase AC servo motor from the Lexium SH3 product range for PacDrive 3 drive systems. The manufacturer code identifies the version with a 70-mm flange and three motor stacks. The inventory record also lists the earlier ELAU designation SH070/60030/0/0/00/00/00/11/00; both identifiers refer to the offered unit. The motor has a smooth shaft measuring 14 mm in diameter and 30 mm in length. Feedback is provided by an absolute SinCos multiturn encoder with 128 periods. Electrical connections use two angled, rotatable M23 connectors for motor and encoder. Schneider Electric specifies an integrated holding brake with a 24 V DC control supply for this version. Continuous stall torque is 2.95 Nm and peak torque is 11.3 Nm. Stall current is 4.1 A; the maximum permissible mechanical speed is 8000 min⁻¹. The three-pole permanent-magnet synchronous motor uses natural-convection cooling. Documented rotor inertia is 0.807 kg·cm². The protection rating is IP54 at the shaft passage and IP65 at the motor housing. Four mounting holes, each 5.5 mm in diameter, are arranged on an 82 mm pitch circle. The centring collar is 60 mm in diameter and 2.5 mm deep. These data support a direct check of mechanical installation dimensions and existing PacDrive 3 peripherals. Shaft geometry, connector orientation and brake supply are documented for precise mechanical and electrical assignment. The exact article number SH30703P02F2000, encoder version, holding brake and angled connectors must be considered together. Variant-specific dimensions are 70 × 70 × 254 mm and product weight is 3.8 kg.

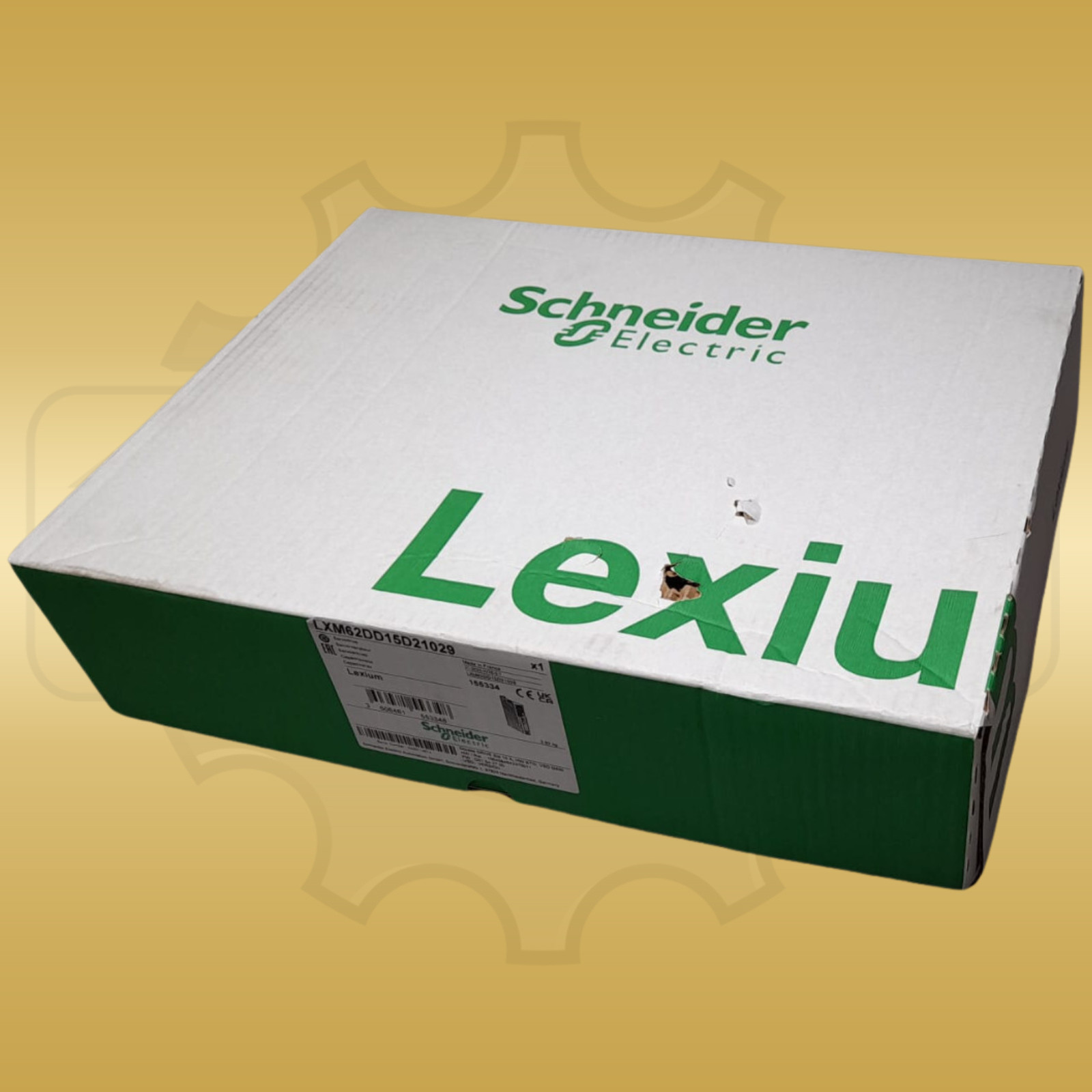

Example image – The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Product series | Lexium SH3 / PacDrive 3 |
| Manufacturer/order/identification number | SH070/60030/0/0/00/00/00/11/00 |
| Schneider model code | SH30703P02F2000 |
| Motor type | Three-phase AC permanent-magnet synchronous servo motor |
| Flange size | 70 mm |
| Rated torque | 2.95 Nm |
| Peak torque | 11.3 Nm |
| Stall current | 4.1 A |
| Maximum speed | 8000 min⁻¹ |
| Rotor inertia | 0.807 kg·cm² |
| Encoder system | Absolute SinCos multiturn encoder, 128 periods |
| Holding brake | Integrated, 24 V DC |
| Shaft | Smooth, Ø 14 × 30 mm |
| Connections | M23/M23, angled and rotatable |
| Cooling | Natural convection |
| Mounting | 4 holes Ø 5.5 mm on pitch circle Ø 82 mm |
| Protection rating | IP54 at shaft passage / IP65 at housing |
| Dimensions | 70 × 70 × 254 mm (flange × flange × length) |
| Weight | 3.8 kg |
