Siemens 1FK6040-6AK71-1EG0
€1,680.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

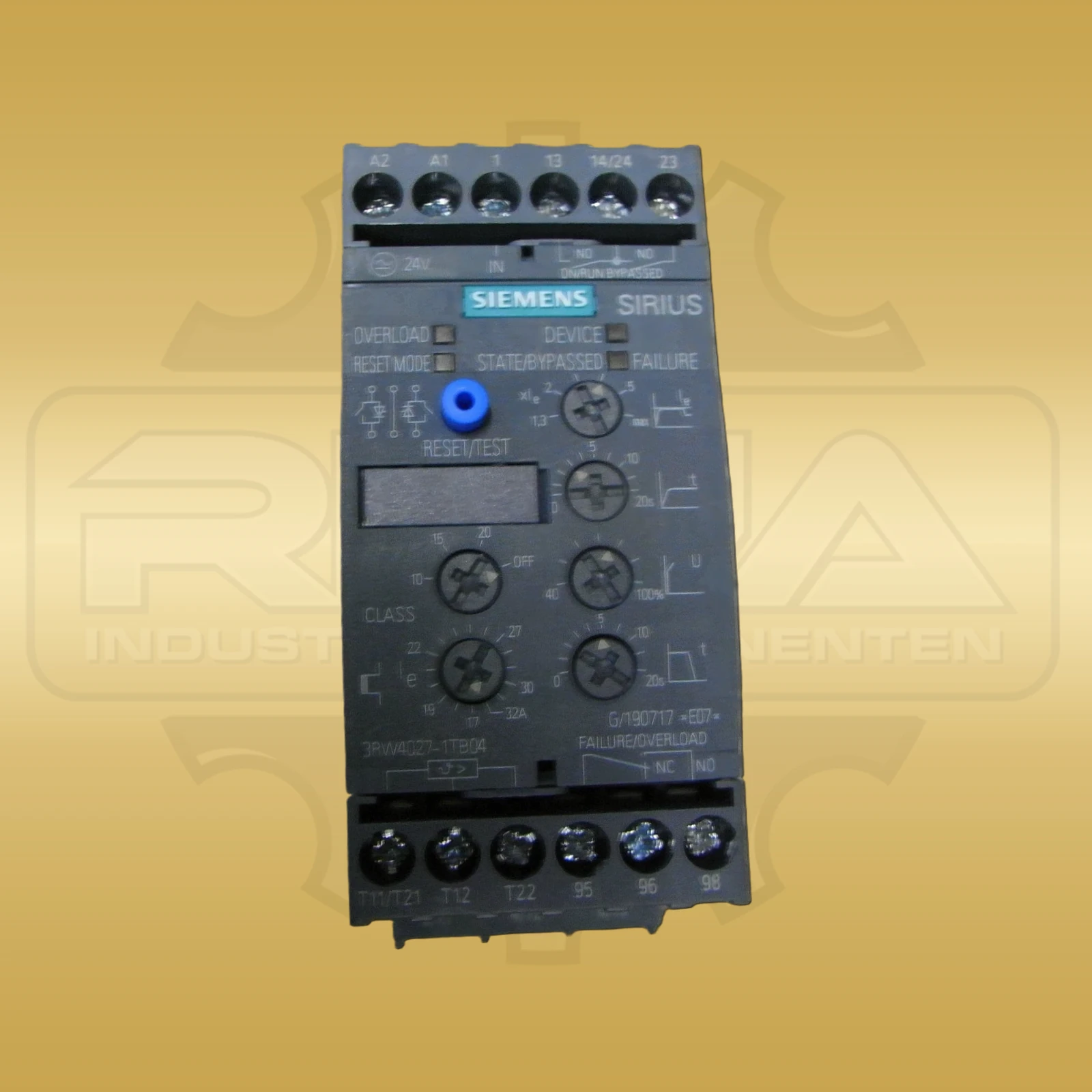

The Siemens 3RW4027-1TB04 from the SIRIUS 3RW40 product family is an electronic soft starter for standard applications with three-phase induction motors. The S0 unit is rated for an operational current of 32 A at 40 °C and can start a 15 kW motor at 400 V in a standard circuit. The main circuit operates in a voltage range from 200 to 480 V AC at 50 to 60 Hz. The control electronics are supplied with 24 V AC or DC. Integrated bypass contacts reduce power loss after acceleration; the typical operating power loss is 13 W. The soft starter provides adjustable current limiting, intrinsic device protection, motor overload protection and thermistor evaluation for motor protection. The adjustable motor-current range starts at 17 A. Power terminals and auxiliary and control connections use screw terminals. Dimensions of 45 × 125 × 155 mm allow the device size to be compared unambiguously with the available control-cabinet space before replacement. The front meets IP20 and the permissible operating-temperature range extends from -25 to +60 °C. Two normally open contacts and one changeover contact are available for operating and fault signals. During replacement, the complete 3RW4027-1TB04 order number, motor output and current, main and control voltage, circuit type, conductor cross-sections, mounting position and upstream protection must match. Similarly designated 3RW40 variants can differ in current range, control or motor protection. This device is suitable as a type-identical spare part for maintenance, repair and retrofit of existing motor starters. REHA-Components supplies the Siemens 3RW4027-1TB04 for industrial drive technology and supports customers in matching the relevant motor data.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIRIUS 3RW40 |
| Manufacturer / order / identification number | 3RW4027-1TB04 |
| Device type | Electronic soft starter |
| Size | S0 |
| Rated operational current | 32 A at 40 °C |
| Motor output | 15 kW at 400 V |
| Operating voltage | 200–480 V AC |
| Operating frequency | 50–60 Hz |
| Control supply voltage | 24 V AC/DC |
| Adjustable motor current | from 17 A |
| Typical power loss | 13 W during operation |
| Connection type | Screw terminals |
| Dimensions (W × H × D) | 45 × 125 × 155 mm |
| Front protection rating | IP20 |
| Operating temperature | -25 to +60 °C |
Related products
Go to shop
Siemens 1FK6060-6AF71-1TA0
Price on request
Siemens 1FK6063-6AF71-1AH0
Price on request
Siemens 1FK6063-6AF71-1EB0
€1,500.00
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
What motor output is the Siemens 3RW4027-1TB04 rated for?
In a standard circuit, the soft starter is rated at 40 °C for 32 A and a motor output of 15 kW at 400 V.
What must be checked when replacing the SIRIUS soft starter?
Check the complete order number, motor current and output, 200 to 480 V AC operating voltage, 24 V AC/DC control supply, circuit type, terminal assignment, size and protection concept.
