Siemens 6SE3214-0DA40
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Two load profiles determine the performance data of this MICROMASTER 440: in high-overload operation, 55 kW and 110 A output current are stated; in low-overload operation, 75 kW and 145 A. The Siemens 6SE6440-2UD35-5FA1 has a three-phase input and output. The line voltage is 380 to 480 V AC with a tolerance of ten percent in each direction; the permissible line frequency ranges from 47 to 63 Hz. Input current and output current are to be considered separately. On the line side, the rated current is 104 A for HO and 139 A for LO. For high overload, a load of 150 percent of the output current for 60 seconds is specified, followed by 240 seconds at 100 percent. The low-overload profile states 140 percent for three seconds, then 110 percent for 57 seconds and 100 percent for 240 seconds. The pulse frequency is 4 kHz. For an order with shipping from Germany to the United States and other international destinations, the complete identifier of this FSF version is decisive. For signal processing, six digital inputs and three relay outputs are available. They are complemented by two analog inputs, two analog outputs and a PTC/KTY interface. A fan provides cooling of the unit. The permissible ambient temperature range differs by load profile: −10 to +50 °C for HO and −10 to +40 °C for LO. The enclosure corresponds to IP20 or UL Open Type. The converter measures 350 mm in width, 850 mm in height and 320 mm in depth. Its net weight is 56 kg.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | MICROMASTER 440 |
| Manufacturer/order/ident number | 6SE6440-2UD35-5FA1 |
| Device type | Frequency converter |
| Input voltage | 3 AC 380–480 V ±10 % |
| Line frequency | 47–63 Hz |
| Output power | 55 kW HO / 75 kW LO |
| Output current | 110 A HO / 145 A LO |
| Input current | 104 A HO / 139 A LO |
| Pulse frequency | 4 kHz |
| Overload capability HO | 150 % for 60 s, then 100 % for 240 s |
| Digital inputs | 6 |
| Relay outputs | 3 |
| Analog inputs/outputs | 2 inputs / 2 outputs |
| Temperature sensor interface | 1 × PTC/KTY |
| Protection class | IP20 / UL Open Type |
| Cooling | Fan |
| Operating temperature | −10 to +50 °C HO / −10 to +40 °C LO |
| Dimensions | 350 × 850 × 320 mm (W × H × D) |
| Weight | 56 kg |
Related products
Go to shop
Siemens 6SE6400-3CC00-4AB3
€170.00
Siemens 1FT6034-4AK71-4EG1-Z
€2,100.00

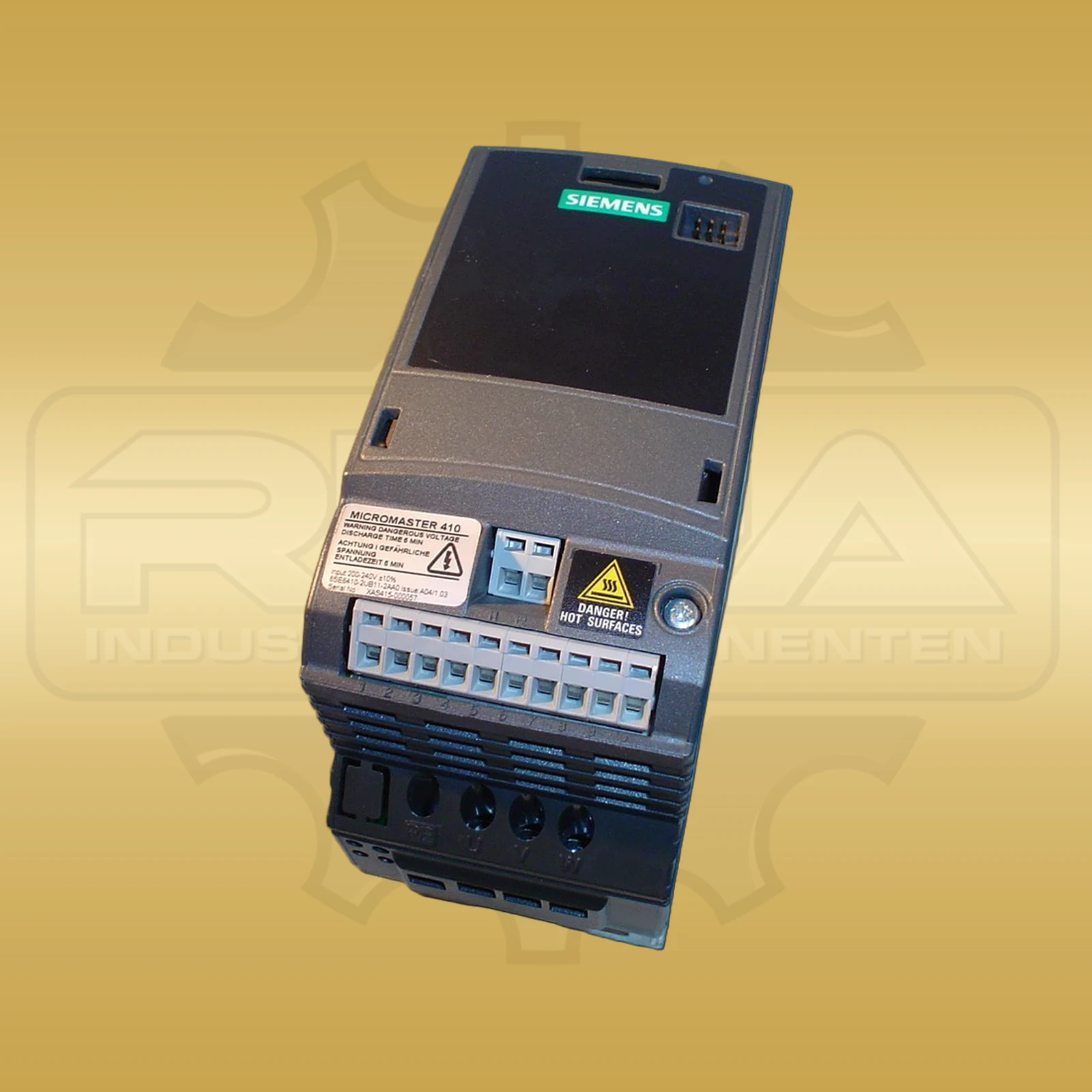

Siemens 6SE6410-2UB11-2AA0
