Siemens 6SL3040-1MA01-0AA0
€535.00
Shipping information
Do you require same-day delivery or express shipping with a defined delivery time for this item?
Please contact us!
Product description

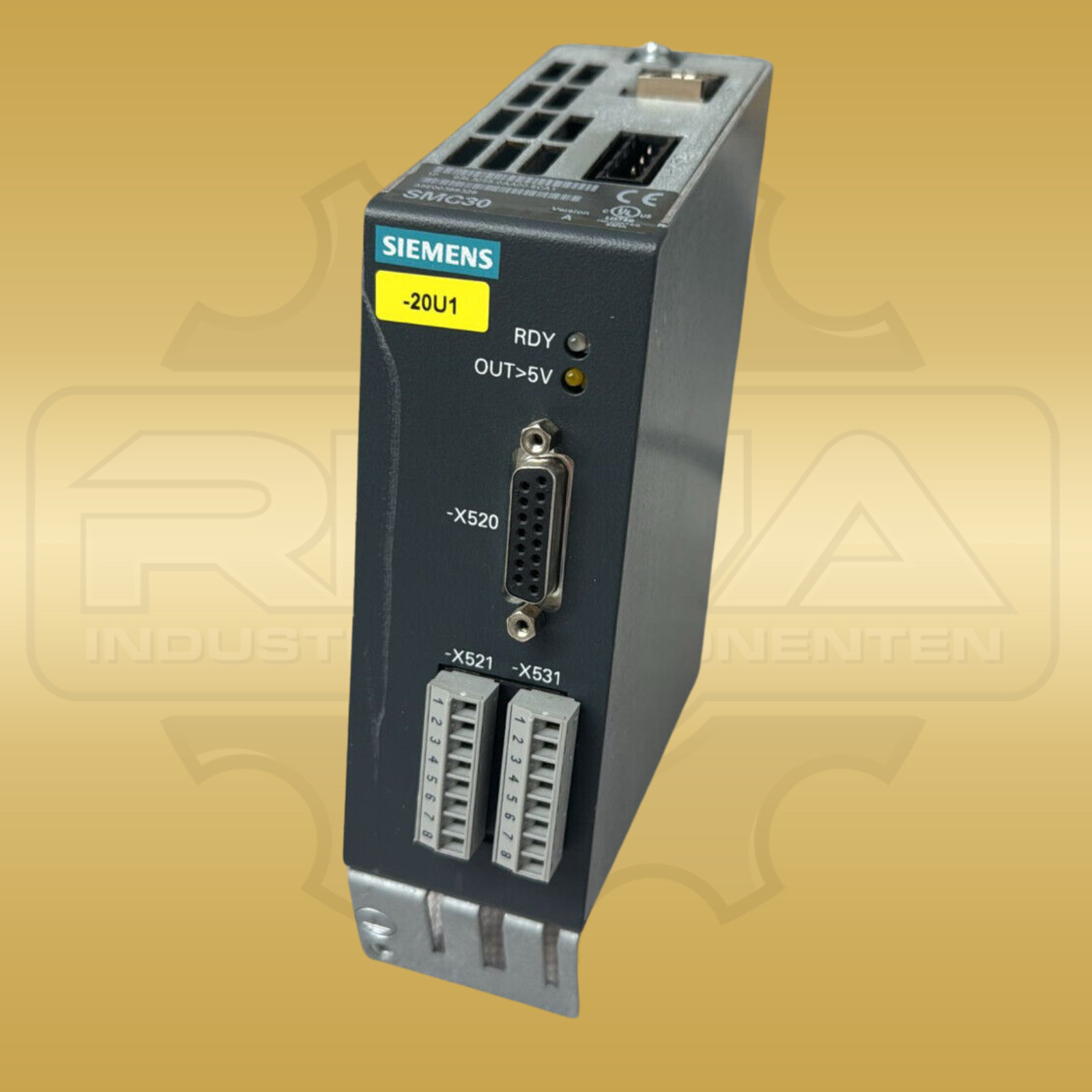

The Siemens 6SL3055-0AA00-5CA1 is a Sensor Module Cabinet-Mounted SMC30 for SINAMICS-S120 drive systems. It evaluates signals from external motor or machine encoders and sends speed, actual position, rotor position, motor temperature and the reference point to the associated Control Unit via DRIVE-CLiQ. Supported measuring systems include incremental TTL and HTL encoders as well as SSI encoders with incremental tracks. Version 6SL3055-0AA00-5CA1 added SSI support to the SMC30 range and can be operated from firmware 2.4 according to Siemens. The electronics require 24 V DC within the permissible range of 20.4 to 28.8 V. Current consumption is no more than 0.20 A without a measuring system and no more than 0.35 A with a measuring system connected. The encoder can be supplied with 5 V DC including Remote Sense or with a voltage derived from the electronics supply. The module evaluates encoder frequencies up to 500 kHz; Siemens specifies 100 to 250 kHz for SSI transmission. Connection is available through the X520 Sub-D interface or the X521 and X531 terminals. One DRIVE-CLiQ interface links the module to the drive controller. The enclosure has IP20 or IPXXB protection, weighs approximately 0.8 kg and uses an M4 screw tightened to 1.8 Nm for the PE or ground connection. Used hardware version A is offered. According to the product description, a DRIVE-CLiQ cable is not included. Siemens lists the product as discontinued and names 6SL3055-0AA00-5CA2 as its successor. Encoder type, pin assignment, SSI function, firmware level and installation conditions must still be checked together before replacement; the successor reference alone does not establish unverified interchangeability. This SMC30 is intended for focused maintenance of existing SINAMICS-S120 configurations that require the exact article number. Available immediately with worldwide delivery.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product range | SINAMICS S120 SMC30 |
| Manufacturer/order/identification number | 6SL3055-0AA00-5CA1 |
| Device type | Sensor Module Cabinet-Mounted SMC30 |
| Hardware version | Version A |
| Module function | Encoder evaluation with transmission via DRIVE-CLiQ |
| Supported encoder signals | TTL, HTL and SSI with incremental tracks |
| Electronics supply | 24 V DC (20.4–28.8 V) |
| Electronics current without measuring system | Maximum 0.20 A |
| Electronics current with measuring system | Maximum 0.35 A |
| SSI transmission rate | 100–250 kHz |
| Power loss | Maximum 10 W |
| Encoder-system supply | 5 V DC with/without Remote Sense or VDC − 1 V |
| Encoder supply current | 0.35 A |
| Maximum encoder frequency | 500 kHz |
| Encoder connections | X520 Sub-D and terminals X521/X531 |
| Drive interface | 1 × DRIVE-CLiQ |
| PE/ground connection | M4 screw, 1.8 Nm |
| Weight | Approx. 0.8 kg |
| Degree of protection | IP20 or IPXXB |
Related products
Go to shop
Machine downtime?
Faster delivery
Is your machine down and do you require particularly fast delivery? Tell us directly. We will do everything possible to provide a quotation with the fastest available delivery and find a solution that matches your schedule.
Our highest priority is to keep your production processes running. Rely on our expertise and flexible service to minimise machine downtime effectively.
Contact us now!Product safety
Manufacturer / EU responsible person
Which encoders can the Siemens SMC30 6SL3055-0AA00-5CA1 evaluate?
The module supports incremental TTL and HTL encoders as well as SSI encoders with incremental tracks. The connection method and parameter settings must match the installed encoder and the firmware level of the SINAMICS system.
Is 6SL3055-0AA00-5CA2 a successor to 6SL3055-0AA00-5CA1?
Siemens names 6SL3055-0AA00-5CA2 as the official successor. Encoder type, terminal assignment, SSI function, firmware and installation dimensions must still be checked before use; unverified interchangeability is not claimed.
