Siemens 6SL3130-6TE23-6AA3
Price on request
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

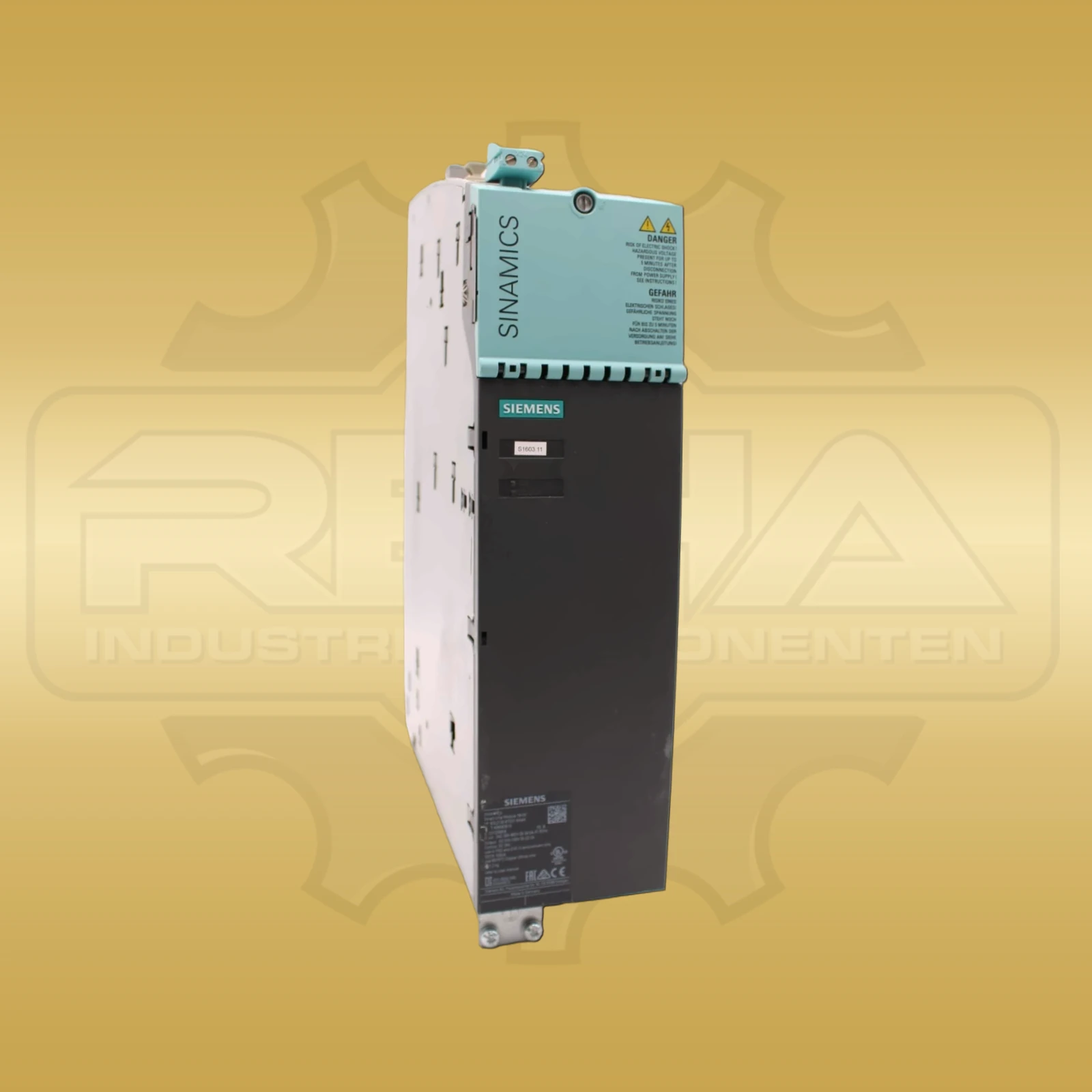

The minimum fundamental power factor is 0.96; a ratio of 1.35 to the supply voltage is documented for the DC link. On the line side, screw terminals accept conductor cross-sections from 2.5 to 10 mm², and the protective conductor is connected with an M5 screw. The complete order number, 16-kW power class, 27-A DC-link current, booksize dimensions and installed connections are therefore decisive for procurement, repair and retrofit. With a width of 100 mm, height of 380 mm, depth of 270 mm and weight of 7 kg, installation space, mounting and handling can be checked precisely before replacement. Documented identifiers and values: 6SL3130-6TE21-6AA4; S120; 380; 480 V; 47; 63 Hz; 342; 528 V; 600 V; 27 A; 16 kW; 24 V; IP20; 100; 380; 270 mm. The module has booksize construction, internal air cooling and an IP20 or UL Open Type rating. The booksize module operates from a three-phase supply with 380 to 480 V and 47 to 63 Hz. The Siemens data sheet specifies an extended permissible supply-voltage range of 342 to 528 V. Siemens 6SL3130-6TE21-6AA4 is a SINAMICS S120 Smart Line Module that supplies the common DC link in industrial drive systems. On the output side, the module provides 600 V DC, 27 A and 16 kW for the DC link.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Siemens |
|---|---|
| Product series | SINAMICS S120 / Smart Line Module |
| Manufacturer / order / identification number | 6SL3130-6TE21-6AA4 |
| Device type | Smart Line Module |
| Supply connection | 3 AC |
| Supply voltage | 342 to 528 V |
| Rated supply range | 380 to 480 V |
| Supply frequency | 47 to 63 Hz |
| Short-circuit rating | 65 kA |
| Output voltage | 600 V DC |
| Output current | 27 A |
| Rated power | 16 kW |
| Fundamental power factor | at least 0.96 |
| DC-link voltage | 1.35 x supply voltage |
| Electronics supply | 24 V DC (-15 % / +20 %) |
| Supply connection | screw terminals X1, 2.5 to 10 mm² |
| Cooling | internal air cooling |
| Degree of protection and construction | IP20 / UL Open Type, booksize |
| Dimensions | 100 x 380 x 270 mm (W x H x D) |
| Weight | 7 kg |
