Product description
Siemens 6SL3224-0BE31-1AA0 is a SINAMICS G120 PM240 Power Module for industrial three-phase drives. The power section operates from a three-phase supply with 380 to 480 V and 47 to 63 Hz. At 400 V, it provides a rated output of 15 kW in Low Overload duty or 11 kW in High Overload duty. The corresponding rated output currents are 32 A and 26 A, while a maximum output current of 52 A is documented for short-duration operation. This makes the module an unambiguously identifiable spare part for machines and systems whose existing SINAMICS-G120 configuration uses this exact PM240 version. A braking chopper and a class A filter are integrated. The pulse frequency is 4 kHz and the documented efficiency is 0.97. Siemens specifies a maximum motor cable length of 50 m for shielded cable and 100 m for unshielded cable. Internal air cooling requires an airflow of 0.055 m³/s. The frame-size FSC enclosure is rated IP20 and is classified as UL Open Type. With a width of 189 mm, height of 334 mm, depth of 185 mm and weight of 7 kg, installation space and handling can be checked precisely before replacement. Siemens 6SL3224-0BE31-1AA0 is used without a Control Unit and without a Basic Operator Panel; these components are therefore not part of the power module described here. For procurement and service, the complete order number, supply voltage, overload class, output current, frame size and installed peripherals are especially important. The series has been discontinued, making exact identification particularly important for spare-parts planning, repair and retrofit.
Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SINAMICS G120 / PM240 |
| Manufacturer / order / identification number | 6SL3224-0BE31-1AA0 |
| Device type | PM240 Power Module |
| Supply connection | 3 AC |
| Supply voltage | 380 to 480 V ±10 % |
| Supply frequency | 47 to 63 Hz |
| Rated power | 15 kW Low Overload / 11 kW High Overload |
| Rated output current | 32 A Low Overload / 26 A High Overload |
| Maximum output current | 52 A |
| Pulse frequency | 4 kHz |
| Output frequency | 0 to 200 Hz vector control / 0 to 550 Hz V/f control |
| Filter and braking chopper | Class A filter and braking chopper integrated |
| Overload capability | LO 110 % for 57 s and 150 % for 3 s; HO 150 % for 57 s and 200 % for 3 s |
| Efficiency | 0.97 |
| Cooling | internal air cooling, airflow 0.055 m³/s |
| Motor cable length | max. 50 m shielded / 100 m unshielded |
| Degree of protection and frame size | IP20 / UL Open Type, FSC |
| Dimensions | 189 x 334 x 185 mm (W x H x D) |
| Weight | 7 kg |
Related products
Go to shop

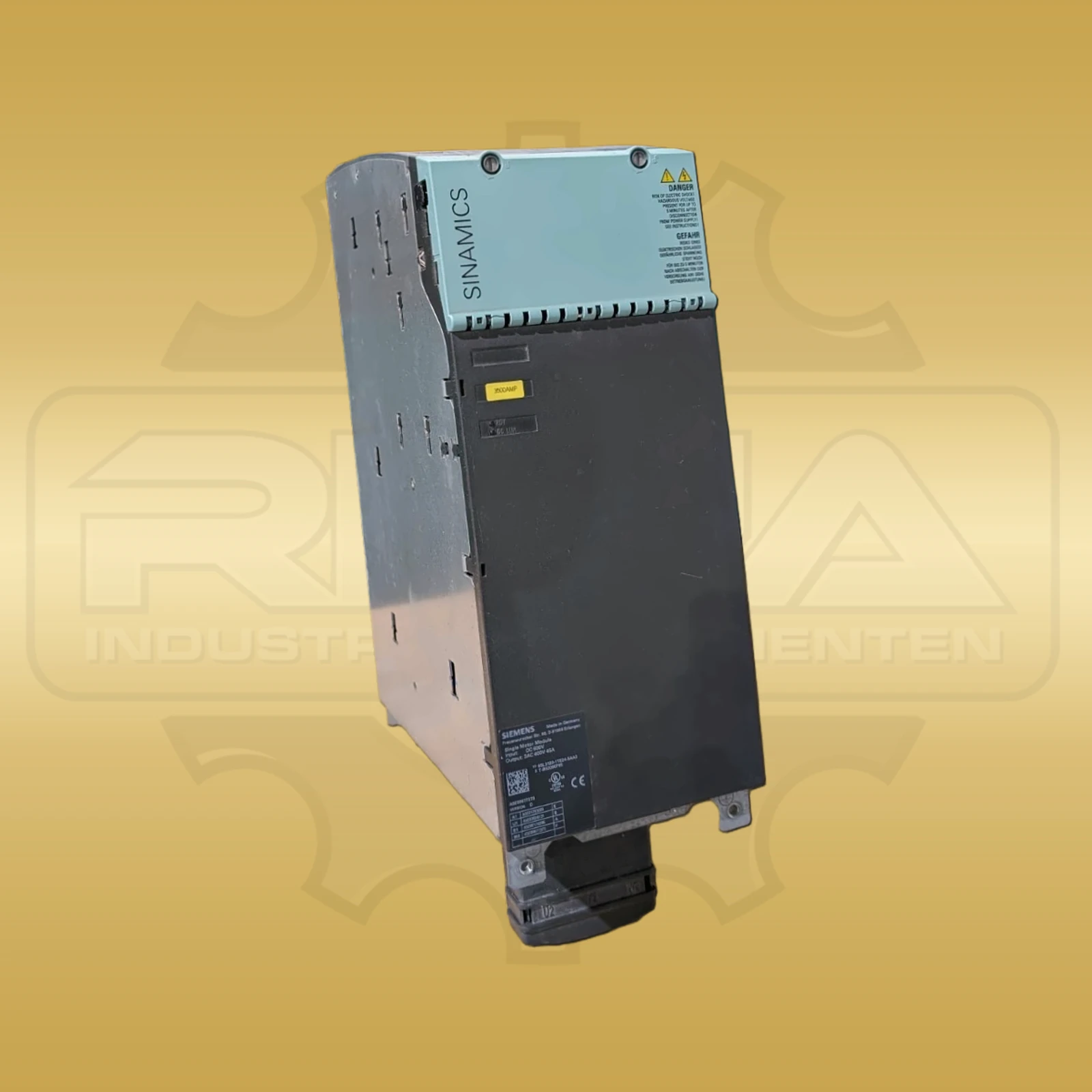

Siemens 6SL3120-1TE24-5AA3
€1,390.00

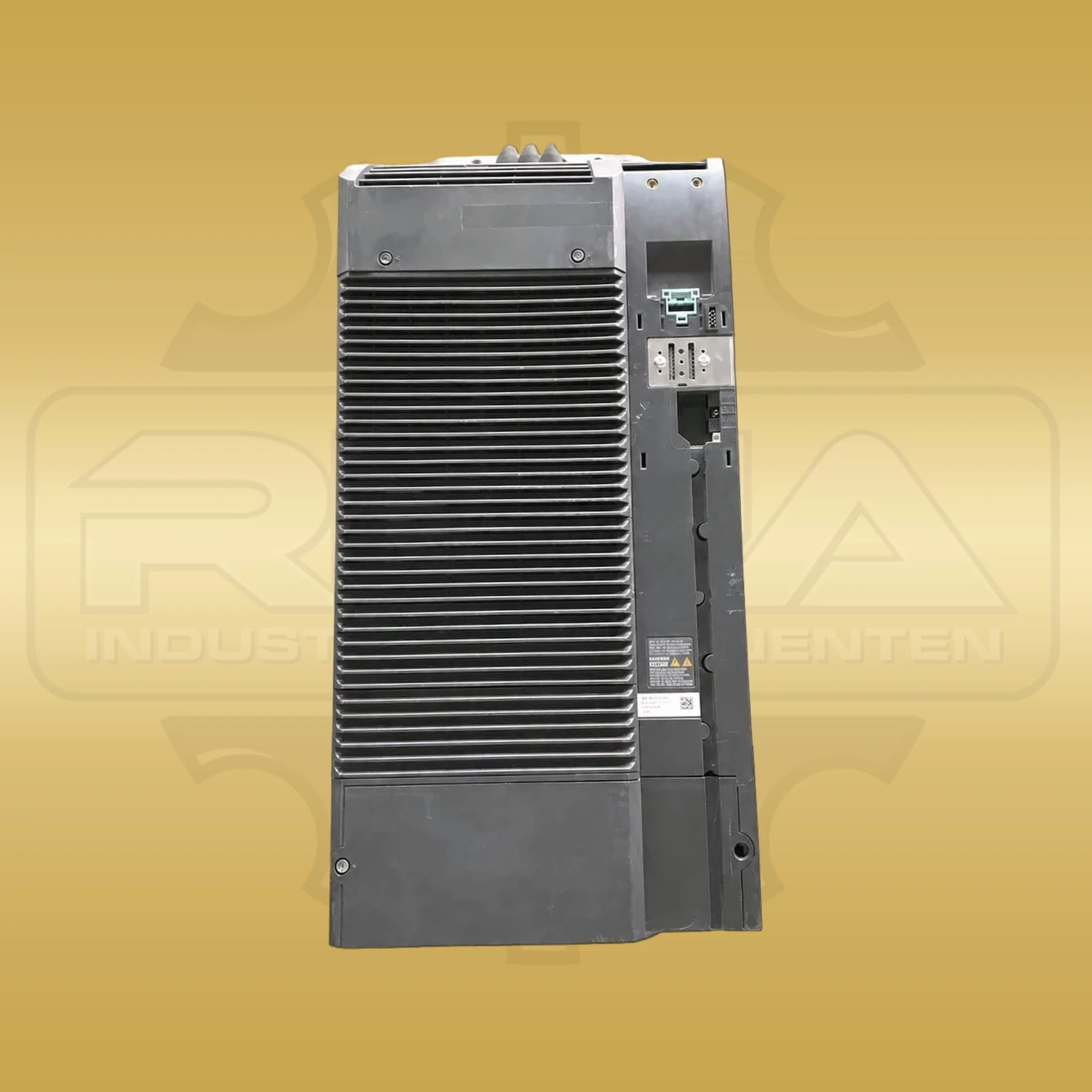

Siemens 6SL3210-1PE31-8AL0
Price on request

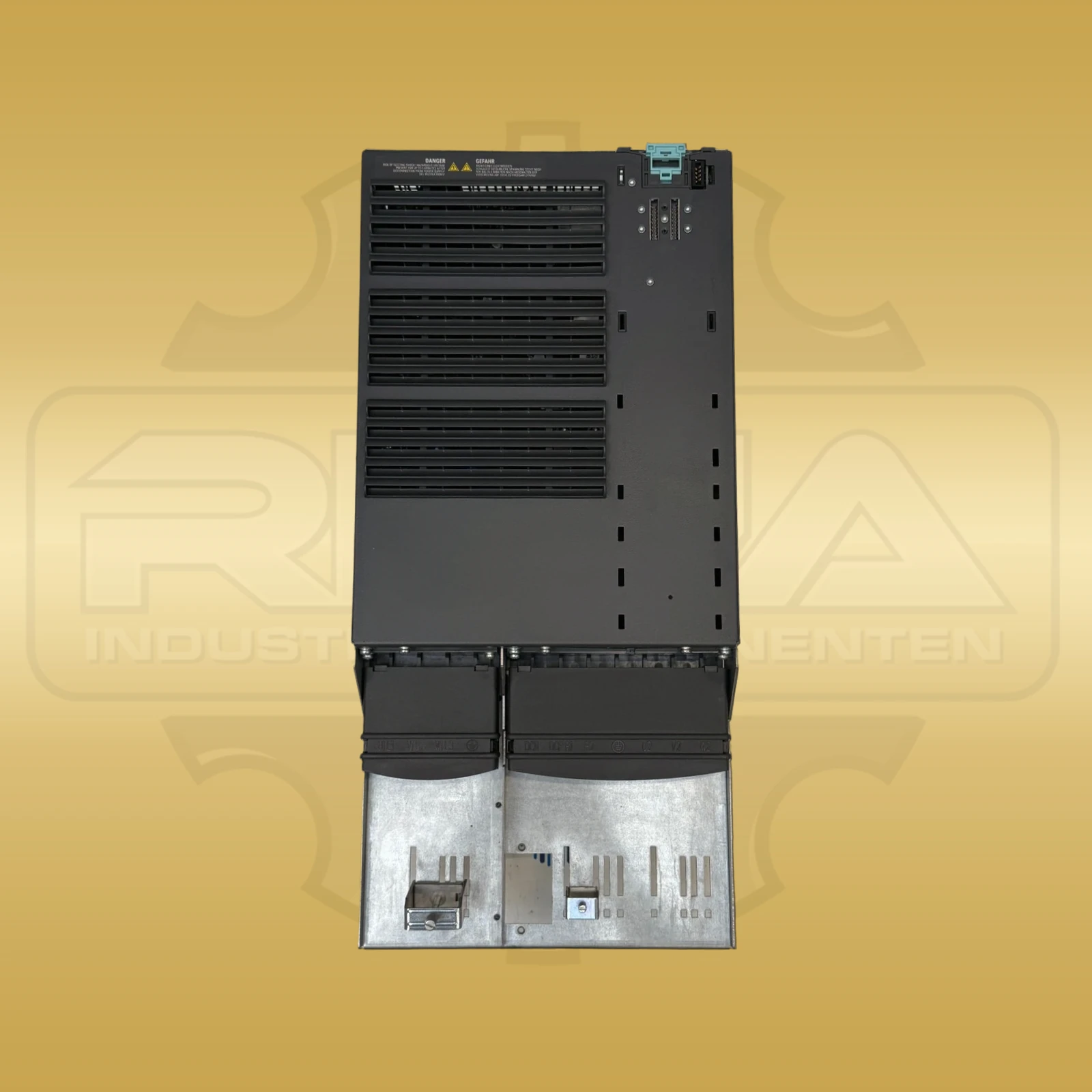

Siemens 6SL3224-0BE31-5AA0
