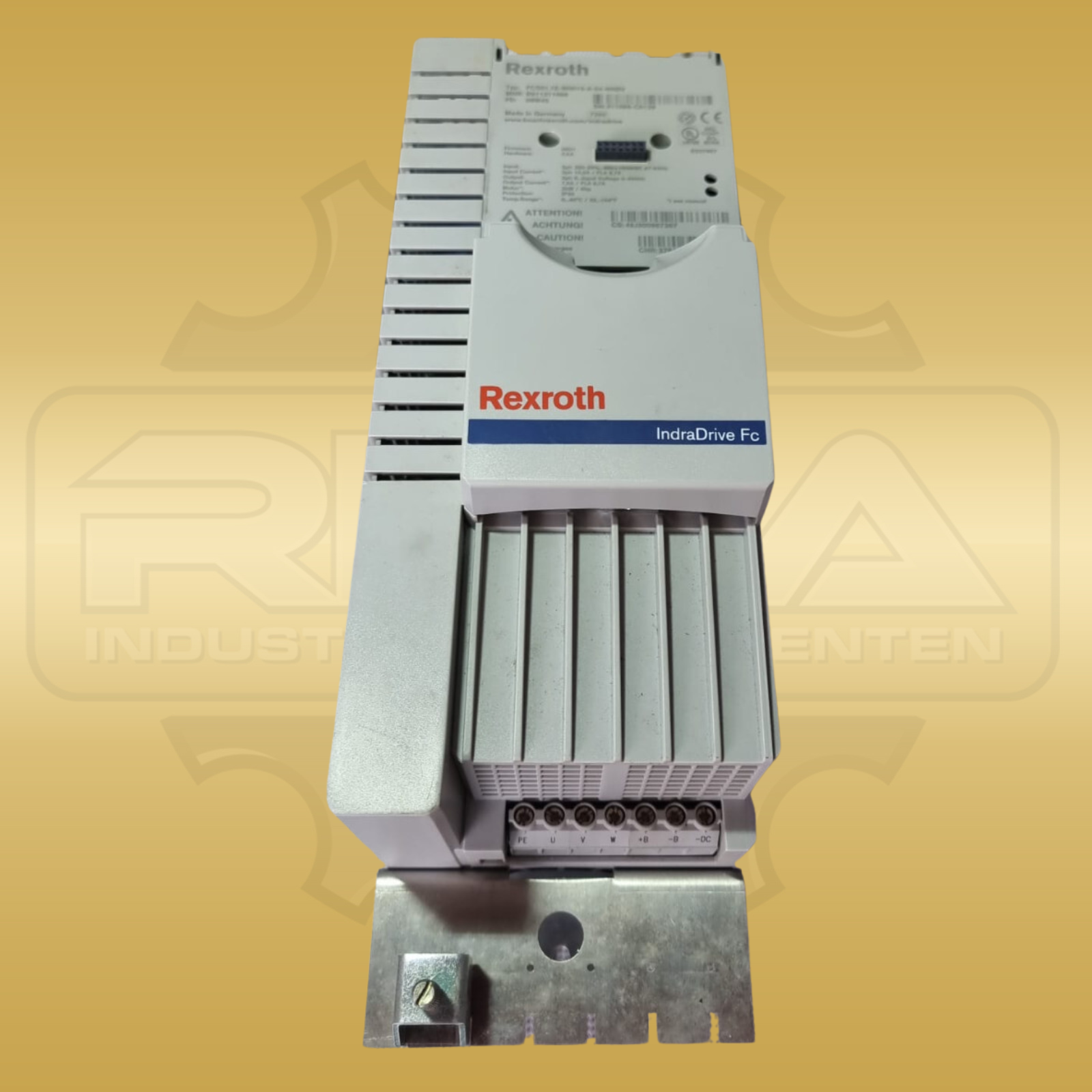

Bosch Rexroth FCS01.1E-W0025-A-04-NNBV
€270.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
Bosch Rexroth FCS01.1E-W0015-A-04-NNBV identifies an IndraDrive Fc frequency converter for variable-speed industrial drives. The complete type code belongs to frame size C and the 3 kW rated-power class. The unit operates from a three-phase 380–480 V supply with a documented mains-frequency range of 47–63 Hz. Catalogued voltage tolerance is +10 percent and −20 percent. Continuous current is 7.5 A and maximum current is 15 A. Short load peaks are covered by 200 percent overload for five seconds and 150 percent for 60 seconds. Output frequency ranges from 0 to 400 Hz. Pulse frequency is continuously adjustable between 3 and 16 kHz. The documented control method is sensorless current vector control, while a linear V/f characteristic is also available. A DC-bus connection is present and the braking resistor is external. The enclosure measures 98 mm wide, 241 mm high and 178 mm deep. Complete external dimensions are therefore 98 × 241 × 178 mm in width × height × depth order. A conservative product-specific weight of approx. 3.0 kg is assigned from the documented frame size and enclosure dimensions for storage and shipping planning. The Bosch Rexroth material number is R911311066. Documented installation dimension is 275 mm. Type code, power class, mains connection, current ratings, control method and enclosure size together establish the technical identity of this version.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Bosch Rexroth |
|---|---|
| Product series | IndraDrive Fc |
| Manufacturer/order/identification number | FCS01.1E-W0015-A-04-NNBV |
| Device type | Frequency converter |
| Rated power | 3 kW |
| Mains supply | 3 AC 380–480 V |
| Mains frequency | 47–63 Hz |
| Mains voltage tolerance | +10 % / −20 % |
| Continuous current | 7.5 A |
| Maximum current | 15 A |
| Short-term overload capacity | 200 % for 5 s |
| Overload capacity for 60 s | 150 % |
| Output frequency | 0–400 Hz |
| Pulse frequency | 3–16 kHz, continuously adjustable |
| Control method | Sensorless current vector control |
| Characteristic operation | Linear V/f characteristic |
| DC-bus connection | Present |
| Braking resistor | External |
| Dimensions | 98 × 241 × 178 mm (W × H × D) |
| Weight | approx. 3.0 kg |
