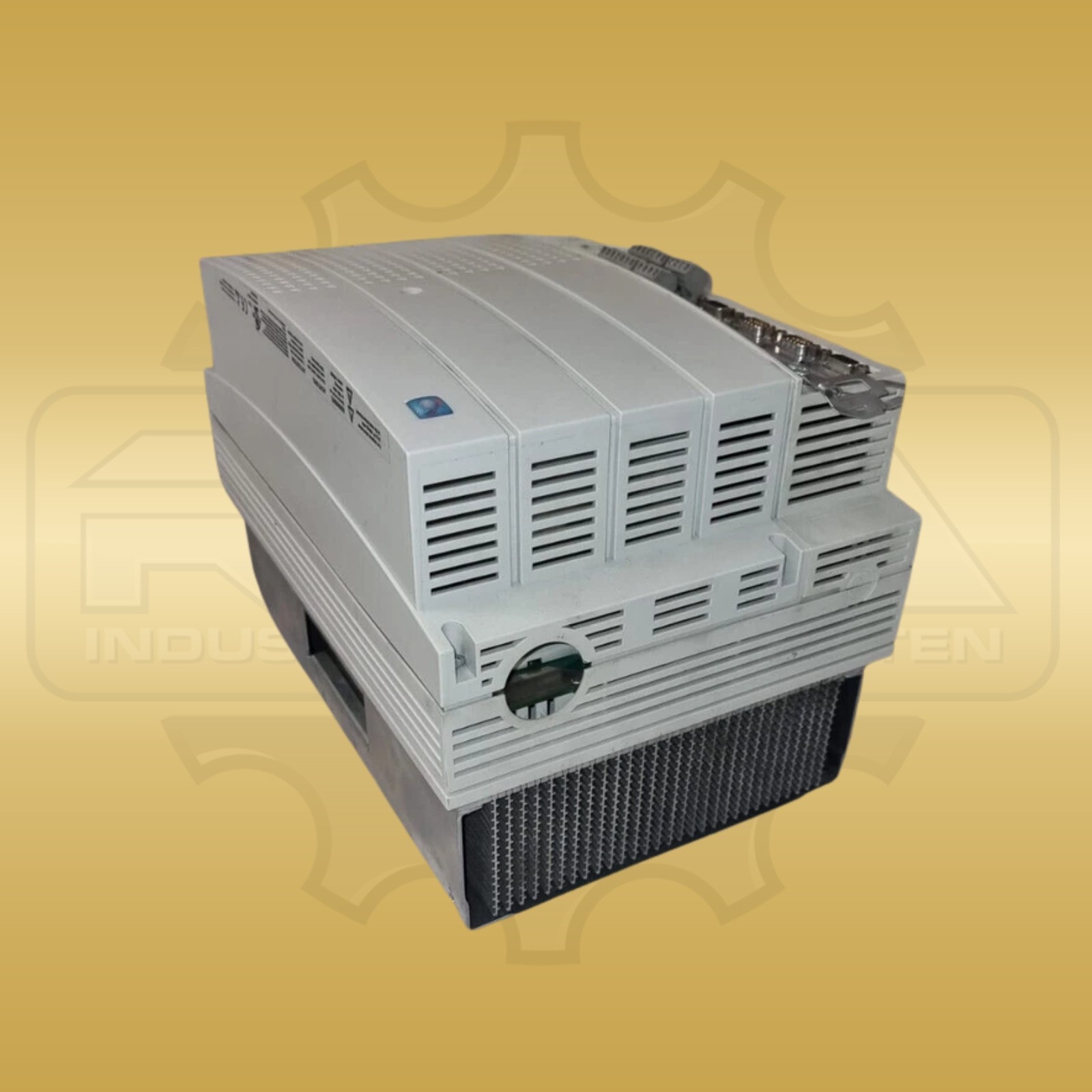

Lenze EVS9329-ES
€2,600.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description
The V004 designation distinguishes the Lenze EVS9327-ESV004 from the standard ES version of the same size. In the Lenze type code, it denotes the safe standstill device function. The ES series within the 9300 range operates as a Servo Inverter with electronic gearing. Multiple drives can be coupled using digital frequency signals. Adjustable gear ratios determine the relationship between the master movement and the following movements. For size 9327, the typical motor power at 400 V is 15 kW, based on a four-pole asynchronous motor. The rated output current is 32 A at a switching frequency of 8 kHz. At 16 kHz, it is 20.8 A. The higher switching frequency therefore corresponds to a different current specification for the same device type. Motor movement is fed back through resolver or encoder connections. The multi-encoder input supports SinCos and TTL incremental encoders as well as SinCos absolute encoders with a Hiperface interface. Nine-pin Sub-D connections are used for the resolver, encoder and digital frequency link. Two analogue inputs with ±10 V and two analogue outputs are available for control. One of the inputs can be switched to 0–20 mA. Six digital inputs including controller enable and four digital outputs complement signal processing. The CAN system bus provides an additional digital communication link. The motor PTC and thermal contact have separate terminals. The three-phase mains supply ranges from 320 to 528 V AC at 45 to 65 Hz. The built-in unit has a width of 250 mm, a height of 350 mm and a depth of 250 mm. The digital outputs each have a load current of 50 mA. Connections are implemented as pluggable control terminals.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Lenze |
|---|---|
| Product range | 9300 |
| Manufacturer/order/identification number | EVS9327-ESV004 |
| Functional version | Servo Inverter with electronic gearing |
| Typical motor power at 400 V | 15 kW (4-pole asynchronous motor) |
| Mains voltage range | 3/PE AC 320–528 V |
| Mains frequency | 45–65 Hz |
| Rated output current at 8 kHz | 32 A (400 V) |
| Rated output current at 16 kHz | 20.8 A (400 V) |
| Analogue inputs | 2; ±10 V, of which 1 switchable to 0–20 mA |
| Analogue outputs | 2; ±10 V |
| Digital inputs | 6 (controller enable and 5 freely assignable inputs) |
| Digital outputs | 4; 50 mA each |
| Resolver connection | 9-pin Sub-D connection |
| Encoder input | SinCos/TTL incremental encoders; SinCos absolute encoders with Hiperface |
| System bus | CAN |
| Additional variant | V004 – safe standstill |
| Dimensions | 350 × 250 × 250 mm |
| Weight | 13.5 kg |
Related products
Go to shop
Urgent requirement?
Shipping options
Send us the complete type number, destination and requested timing. We will assess whether the specific item can be supplied and which shipping options can be offered.
Any stated dispatch or delivery date is an estimate unless expressly confirmed as binding.
Contact us now!Product safety
Manufacturer / EU responsible person
What functional version is the Lenze EVS9327-ESV004?
The functional version is Servo Inverter with electronic gearing. The additional code V004 denotes the safe standstill function.
What output current applies to the Lenze EVS9327-ESV004?
At 400 V, the rated output current is 32 A at a switching frequency of 8 kHz and 20.8 A at 16 kHz.
