SEW-Eurodrive MKS51A015-503-50
€1,840.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

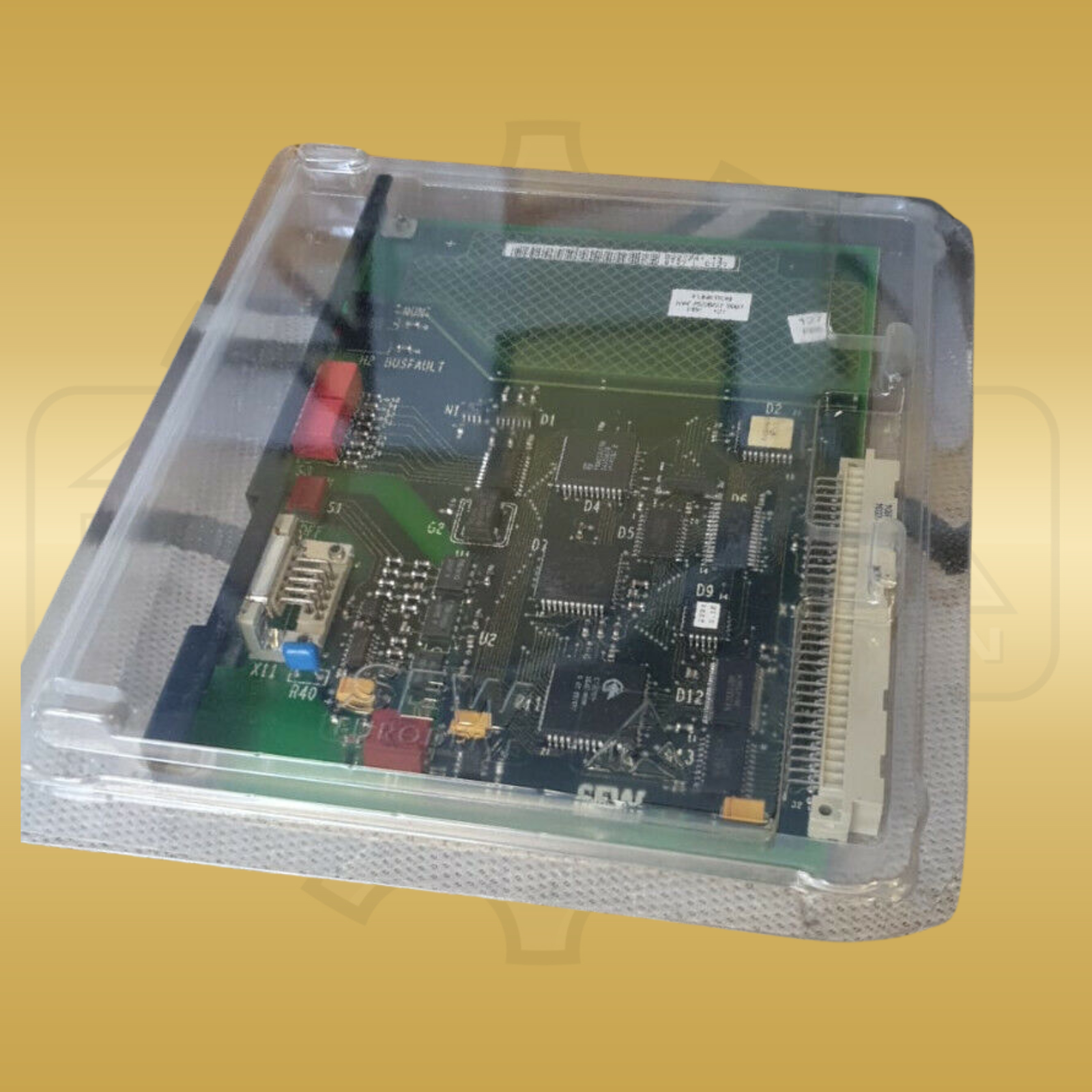

SEW-Eurodrive 8227241 identifies the DFP11A fieldbus card for PROFIBUS communication with MOVIDRIVE drive inverters. The documented interface supports PROFIBUS-DP, PROFIBUS-FMS and combined FMS/DP operation as a Combislave. Standard baud rates from 9.6 kBaud to 1.5 MBaud are detected automatically. The bus connects through a 9-pin Sub-D socket with pin assignment according to EN 50170 and DIN 19245. Station addresses from 0 to 125 are set with DIP switches. Another switch selects the protocol mode, while bus termination can be activated for type A cable up to 1.5 MBaud. SEW specifies the GSD file SEW_6000.GSD and DP identification number 6000hex / 24576dez for configuration. A green RUN LED indicates operating status, and a red BUS-FAULT LED indicates bus faults. The card occupies slot OPTION1 in the documented drive system. The exact product record specifies 140 mm width, 180 mm length or device height and 20 mm depth. In canonical width × height × depth order, complete external dimensions are therefore 140 × 180 × 20 mm. The SEW system manual documents a weight of 0.2 kg. Dimensions and weight refer to the individual fieldbus card without inverter, connection cable or shipping packaging. Order number, card type, communication protocols, GSD file, DP identification number, slot, dimensions and weight distinguish this version. The specification table lists these buyer data separately and ends with the mandatory Dimensions and Weight rows.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | SEW-Eurodrive |
|---|---|
| Product series | MOVIDRIVE / DFP11A |
| Manufacturer/order/identification number | 8227241 |
| Device type | PROFIBUS fieldbus card |
| Card type | DFP11A |
| System assignment | MOVIDRIVE drive inverter |
| PROFIBUS-DP protocol | EN 50170 V2 / DIN E 19245 Part 3 |
| Combined operation | PROFIBUS-FMS/DP as combi-slave |
| Supported baud rates | 9.6; 19.2; 93.75; 187.5; 500 and 1.500 kBaud |
| Baud rate detection | Automatic |
| Bus connection | 9-pin Sub-D socket |
| Communication address | 0 to 125 |
| Address setting | DIP switch |
| Bus termination | Can be enabled for cable type A up to 1.5 MBaud |
| GSD file | SEW_6000.GSD |
| DP identification number | 6000hex / 24576dez |
| Diagnostic indicators | Green RUN LED and red BUS FAULT LED |
| Slot | OPTION1 |
| Dimensions | 140 × 180 × 20 mm (W × H × D) |
| Weight | 0.2 kg |
